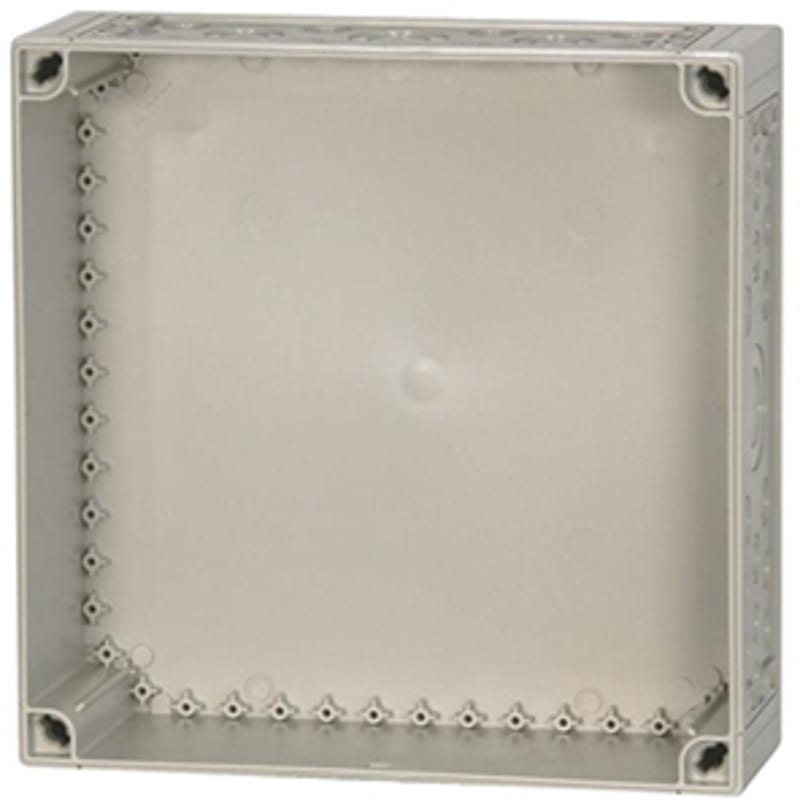

Plinth enclosure 375X375X120MM
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Plinth enclosure 375X375X120MM (part number U-CI44E) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 069642; Depth: 150 mm; Height: 375 mm; Width: 375 mm; Weight: 3.757 kg.
Technical Specifications
- Manufacturer part number (MPN)
- U-CI44E
- EAN / GTIN
- 4015080696421
- Sales unit
- pcs
- Eaton catalogue number
- 069642
- Depth
- 150 mm
- Height
- 375 mm
- Width
- 375 mm
- Weight
- 3.757 kg
- Compliances
- RoHS conform
- Certifications
- EN 61439-2; EN 62208
- Features
- Cover with overpressure release
- Functions
- Extension possible
- Protection class
- II
- RAL-number
- 7035
- Special features
- Metric cable entry knockouts in all sides Full-area knockouts in the sides
- Suitable for
- Outdoor use; Lightning protection
- Accessory/spare part type
- Individual enclosure bottoms
- Color
- Gray
- Nominal current
- 1600 A
- Type
- Basic enclosure
- Circuit integrity
- Other
- Base type
- Full-area knockouts
- Cable entry type
- 10 x M20; 6 x M25/16; 2 x M20; 8 x M25/16; Transverse; Top and bottom; 2 x M16; 1 x M63/40; 2 x M40/25; 1 x M50/32
- Cover/door model
- Closed
- Cover/door type
- Optional; None
- Degree of protection
- IK10; IP65; Other
- Enclosure material
- Plastic
- Number of conduit inlets
- 100
- Number of modules
- 1
- Number of openings (flange plates)
- 4
- Number of rows
- 0
- Plate thickness (cabinet)
- 6 mm
- Plate thickness (cover/door)
- 6 mm
- Surface protection
- Other
- Unit type
- Modular system
- Width in number of modular spacings
- 15
- Built-in depth
- 250 mm
- Internal depth
- 100 mm
- Mounting method
- Surface mounted (plaster)
- Dimensions
- 375x375x120 mm
- Colour
- Grey
- With mounting plate
- No
- Impact strength
- IK10
- Country of origin
- Finland
