Eaton

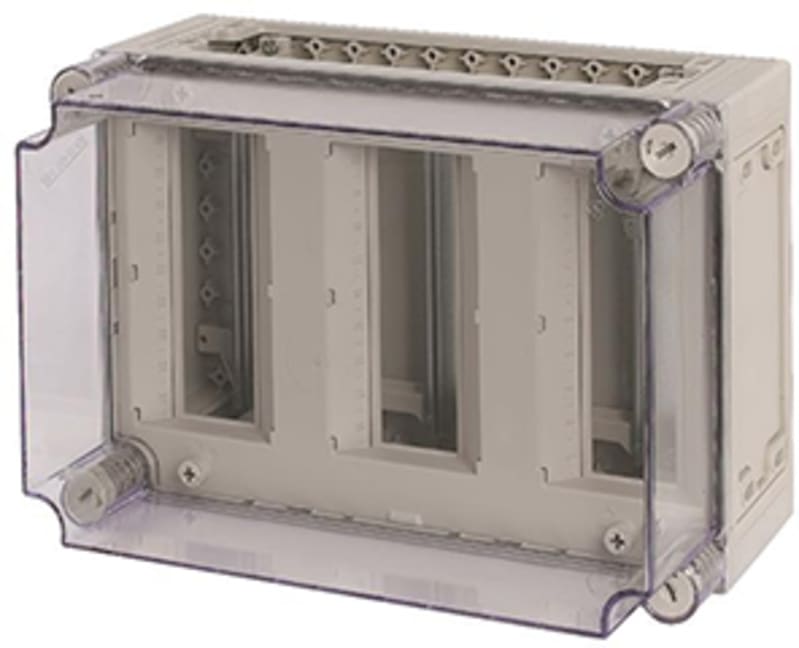

MCB enclosure IP65 (AV/I43-200)
Part numberAV/I43-200EAN / GTIN4015080455813HS code8536.90
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton AV/I43-200 OF/I43-200.
Technical Specifications
- Manufacturer part number (MPN)
- AV/I43-200
- EAN / GTIN
- 4015080455813
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 045581
- Depth
- 225 mm
- Height
- 250 mm
- Width
- 375 mm
- Weight
- 2.661 kg
- Compliances
- RoHS conform
- Certifications
- EN 61439-2; EN 62208
- Features
- Cover with overpressure release
- Protection class
- II
- RAL-number
- 7035
- Suitable for
- Outdoor use; Lightning protection
- Accessory/spare part type
- Enclosures for miniature circuit breakers
- Color
- Gray
- Nominal current
- 1600 A
- Type
- Enclosures for miniature circuit breakers Prepared enclosures xEnergy Safety Ci
- Circuit integrity
- Other
- Base type
- Partially closed, foldable
- Cover/door color
- Transparent
- Cover/door model
- Closed
- Cover/door type
- Optional; None; Transparent
- Degree of protection
- Other; IK10; IP65
- Enclosure material
- Plastic
- Number of conduit inlets
- 76
- Number of module space units (total)
- 27
- Number of modules
- 1
- Number of openings (flange plates)
- 4
- Number of rows
- 3
- Plate thickness (cabinet)
- 6 mm
- Plate thickness (cover/door)
- 6 mm
- Surface protection
- Other
- Unit type
- Stand-alone device
- Width in number of modular spacings
- 15
- Built-in depth
- 100 mm
- Internal depth
- 200 mm
- Mounting method
- Surface mounted (plaster)
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015080455813
- SAP 1000788244
- Code 81399343
Product Documentation
Document preview: MCB enclosure IP65 (AV/I43-200) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Front plate delayed modular H125 B400 xE B
BPZ-VZFP-400/125-45
Eaton
Contactor DILMP45-01(230V50HZ,240V60HZ)
Eaton

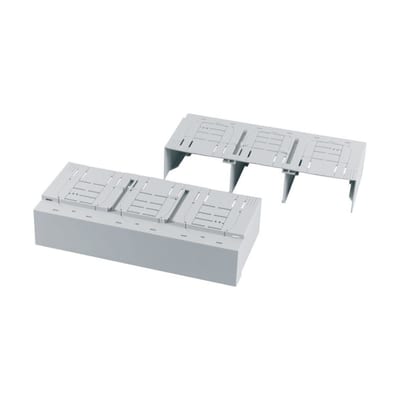

Connection Cover XNH2 3P
XNH2-XKSA-42
Eaton

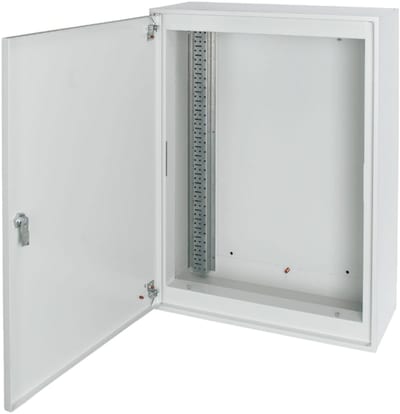

Panel board B800 H460
BP-O-800/4-EW
Eaton

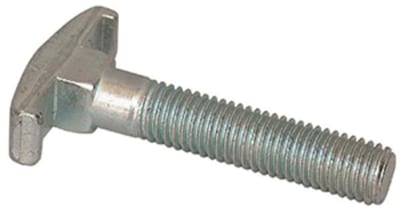

Hammerhodet bolt SL M12X120
XNNHKS-M12X120
Eaton

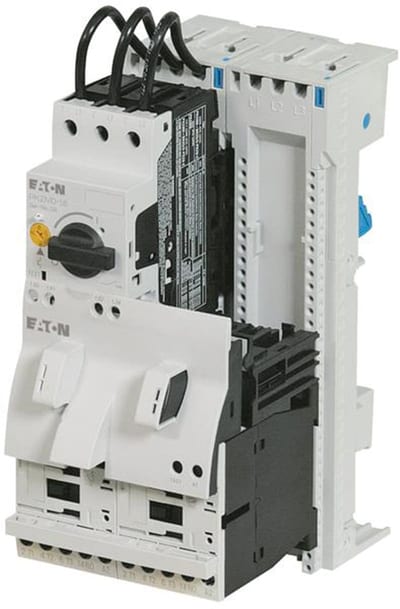

Direction of rotation starter (MSC-R-0,25-M7(230V50HZ)/BBA)
Eaton

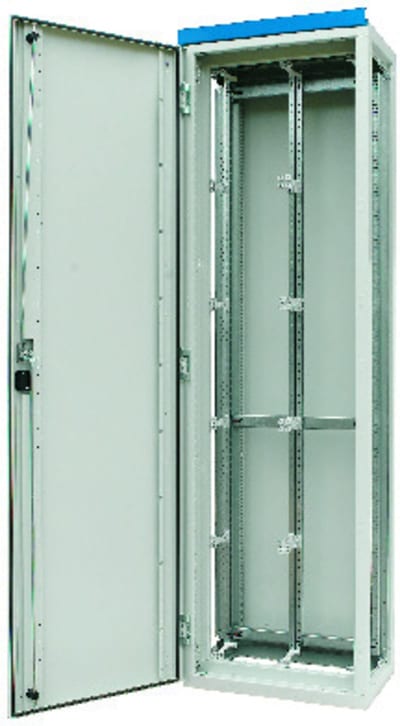

Kit for split configuration (XVTL-SF-18/3)
