Eaton

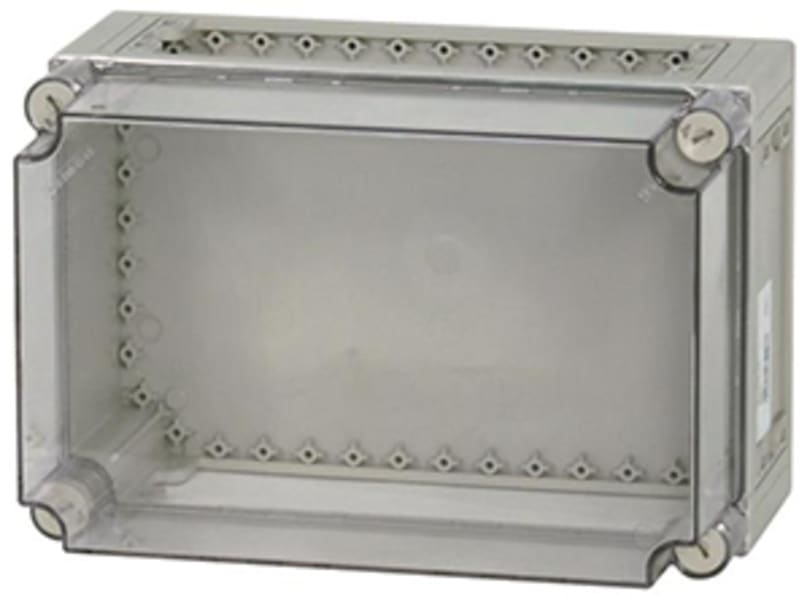

Enclosure H×W×D=250X375X225MM (CI43-200)
Part numberCI43-200EAN / GTIN4015080270195HS code8538.10
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Enclosure H×W×D=250X375X225MM (CI43-200) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 027019; Depth: 225 mm; Height: 250 mm; Width: 375 mm; Weight: 2.203 kg.
Technical Specifications
- Manufacturer part number (MPN)
- CI43-200
- EAN / GTIN
- 4015080270195
- Sales unit
- pcs
- Eaton catalogue number
- 027019
- Depth
- 225 mm
- Height
- 250 mm
- Width
- 375 mm
- Weight
- 2.203 kg
- Compliances
- RoHS conform
- Certifications
- EN 62208; EN 61439-2
- Features
- UV resistance beneath protective shield; Cover with overpressure release
- Flammability characteristics (UL)
- V1 (base) (UL94); V2 (cover) (UL94)
- Functions
- Extension possible
- Protection class
- II
- RAL-number
- 7035
- Special features
- Housing prepared for distribution board Two sides closed, can be folded out two sides open Sealable cover fasteners Integrated pressure-relief mechanism for short-circuits
- Suitable for
- Lightning protection; Outdoor use
- Color
- Gray
- Nominal current
- 1600 A
- Type
- Basic enclosure Panel enclosures xEnergy Safety Ci
- Ambient operating temperature details
- -40 °C - 80 °C
- Temperature resistance
- Temperature resistant: 80 °C (gasket); Temperature resistant: -40 °C - 120 °C (enclosure); Temperature resistant: 85 °C (enclosure bolt)
- Circuit integrity
- Other
- Chemical resistance
- Resistant against: acids < 10 %, mineral oil, alcohol, gasoline, greases, salt solutions; Partly resistant to: Acids > 10 %; Not resistant to: alkalis, benzene
- Cover/door color
- Transparent
- Cover/door model
- Closed
- Cover/door type
- Transparent; None; Optional
- Degree of protection
- IP65; Other; IK10
- Enclosure material
- Plastic
- Material
- Non-reinforced polycarbonate (cover); Halogen free; Glass-fibre reinforced polycarbonate (base)
- Mounting depth with mounting plate
- 200 mm
- Number of conduit inlets
- 76
- Number of modules
- 1
- Number of openings (flange plates)
- 4
- Number of rows
- 0
- Plate thickness (cabinet)
- 6 mm
- Plate thickness (cover/door)
- 6 mm
- Saline spray resistance
- IEC 60068-2-11
- Surface finishing
- Resistant to corrosion
- Surface protection
- Other
- Surface treatment
- Resistant to corrosion
- Unit type
- Single unit
- Width in number of modular spacings
- 15
- Built-in depth
- 200 mm
- Internal depth
- 200 mm
- Mounting method
- Surface mounted (plaster)
- Dimensions
- 250×375×225 mm
- Colour
- Grey
- With mounting plate
- No
- Impact strength
- IK10
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015080270195
- SAP 1000289416
- Code 897017
Product Documentation
Document preview: Enclosure HxBxD=250x375x225mm (CI43-200) — Specification Data Sheet (OEM)
