Eaton

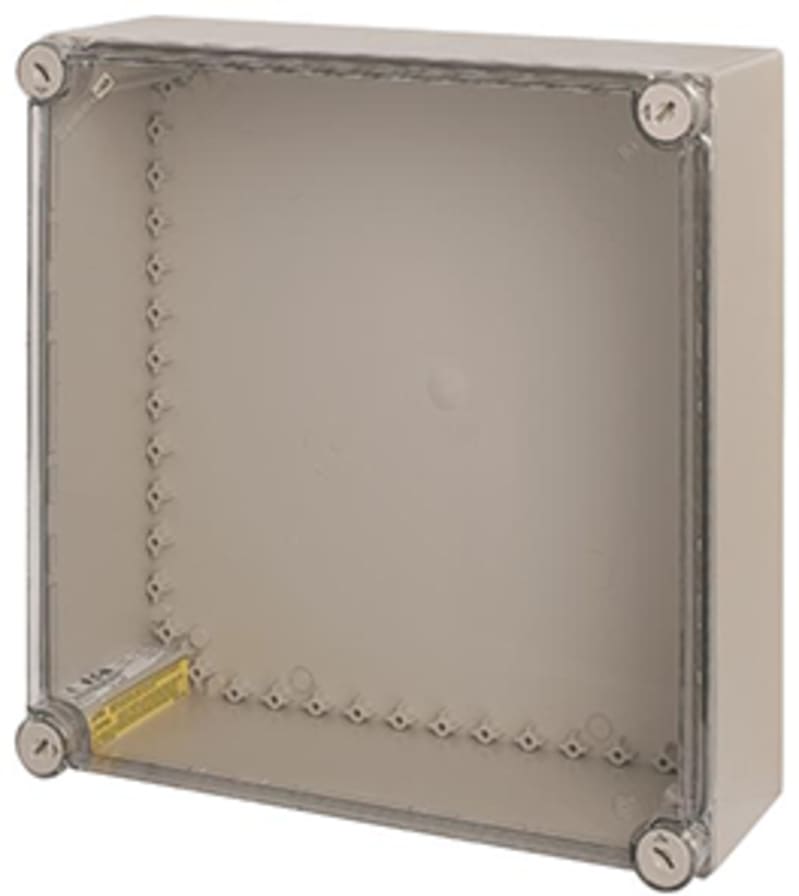

Enclosure H×W×D=375X375X150MM (CI44X-125-NA)
Part numberCI44X-125-NAEAN / GTIN4015080022183HS code8538.10
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Enclosure H×W×D=375X375X150MM (CI44X-125-NA) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 002218; Depth: 150 mm; Height: 375 mm; Width: 375 mm; Weight: 2.896 kg.
Technical Specifications
- Manufacturer part number (MPN)
- CI44X-125-NA
- EAN / GTIN
- 4015080022183
- Sales unit
- pcs
- Eaton catalogue number
- 002218
- Depth
- 150 mm
- Height
- 375 mm
- Width
- 375 mm
- Weight
- 2.896 kg
- Compliances
- IEC/EN62208; UL 508A CSA-C22.2 No.94; CE marking; RoHS conform
- Certifications
- Specially designed for North America; UL (Category Control Number NITW); UL508A; UL listed; UL (File No. E499317)
- Used with
- Industrial control panels
- Special features
- Smooth side plates, without knockouts Sealable cover fasteners Include fixing straps for wall mounting
- Type
- Basic enclosure Individual enclosure for North America Individual enclosures with covers xEnergy Safety Ci
- Features
- UV resistance beneath protective shield; Cover with overpressure release
- Surface finishing
- RAL 7035, light gray (base); Resistant to corrosion
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Creepage resistance
- KB100, KC200 (cover, to IEC 60112); KB160, KC175 (base, to IEC 60112)
- Degree of protection
- IP65 (IEC); 4X (NEMA); IK10; UL/CSA Types 1, 12, 13, 4X, indoor only; IP65
- Enclosure material
- Plastic
- Surface protection
- Other
- Circuit integrity
- Other
- Base type
- RAL 7035, smooth sides
- Unit type
- Stand-alone device
- Built-in depth
- 125 mm
- Color
- Gray; Transparent, smoky gray (cover); Light gray (RAL 7035, base)
- Cover/door color
- Transparent
- Cover/door model
- Closed
- Cover/door type
- None; Transparent; Optional
- Number of openings (flange plates)
- 0
- Plate thickness (cabinet)
- 9 mm
- Plate thickness (cover/door)
- 6 mm
- RAL-number
- 7035
- Surface resistance (IEC 60093)
- 10 TΩ
- Width in number of modular spacings
- 15
- Ambient operating temperature details
- -40 °C - 80 °C
- Mounting method
- Surface mounted (plaster)
- Number of rows
- 0
- Dielectric strength
- 30 kV/mm
- Protection class
- II
- Number of modules
- 1
- Surface treatment
- Resistant to corrosion
- Internal depth
- 125 mm
- Mounting depth
- 125 mm
- Nominal current
- 1600 A
- Number of conduit inlets
- 0
- Suitable for
- Lightning protection; Outdoor use
- Saline spray resistance
- IEC 60068-2-11
- Enclosure material quality
- Other
- Type of coating
- Other
- Dimensions
- 375×375×150 mm
- Colour
- Grey
- With mounting plate
- No
- Impact strength
- IK10
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015080022183
- SAP 1200598500
- Code 82977759
Product Documentation
Document preview: Enclosure HxBxD=375x375x150mm (CI44X-125-NA) — Specification Data Sheet (OEM)
