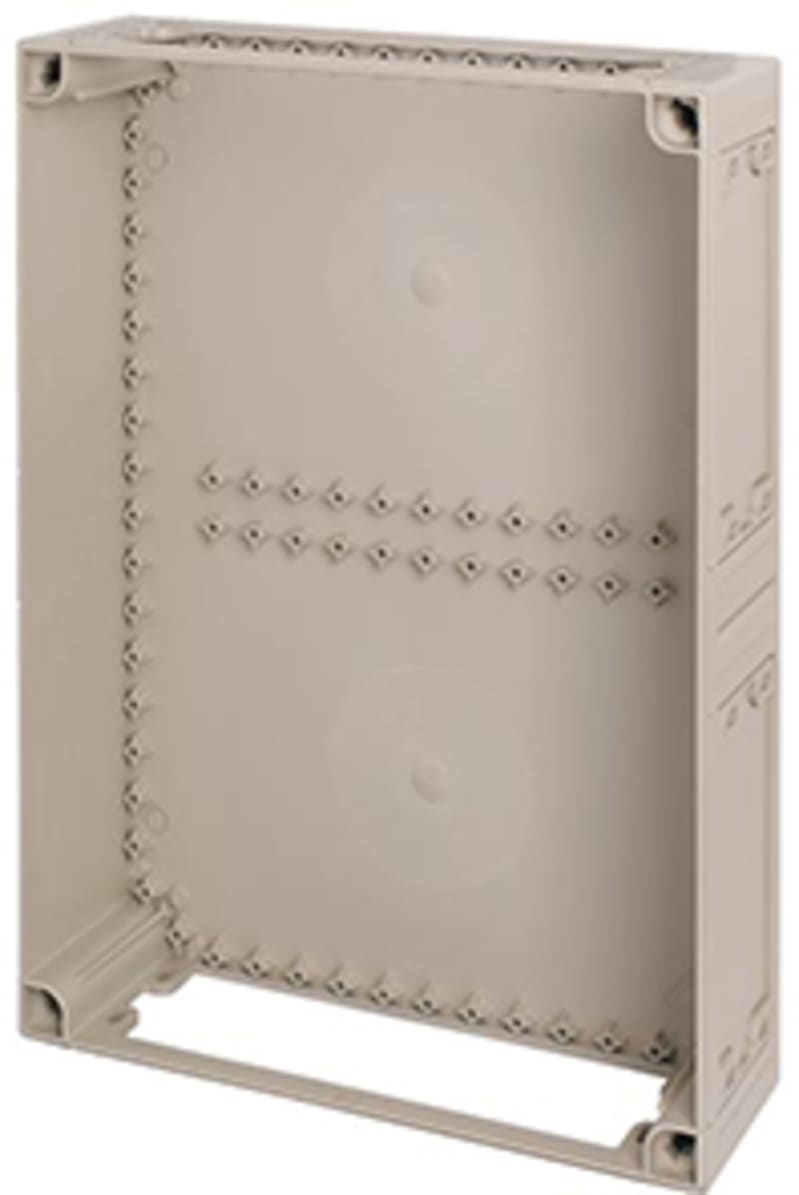

Plinth H×W×D=500X375X120MM (U-CI45)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Plinth H×W×D=500X375X120MM (U-CI45) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 001894; Depth: 120 mm; Height: 500 mm; Width: 375 mm; Weight: 4.632 kg.
Technical Specifications
- Manufacturer part number (MPN)
- U-CI45
- EAN / GTIN
- 4015080018940
- Sales unit
- pcs
- Eaton catalogue number
- 001894
- Depth
- 120 mm
- Height
- 500 mm
- Width
- 375 mm
- Weight
- 4.632 kg
- Compliances
- RoHS conform
- Certifications
- EN 62208; EN 61439-2
- Features
- Cover with overpressure release
- Functions
- Extension possible
- Protection class
- II
- RAL-number
- 7035
- Special features
- Open tip and bottom Sides closed, but with full area knockout
- Suitable for
- Lightning protection; Outdoor use
- Accessory/spare part type
- Bases for panel enclosures
- Color
- Gray
- Nominal current
- 1600 A
- Type
- Basic enclosure
- Circuit integrity
- Other
- Base type
- Closed, with full area knockout
- Cable entry type
- FL4... flange; FL3... flange; Top and bottom; Transverse
- Cover/door model
- Closed
- Cover/door type
- Optional; None
- Degree of protection
- IP65; IK10; Other
- Enclosure material
- Plastic
- Number of conduit inlets
- 104
- Number of modules
- 1
- Number of openings (flange plates)
- 6
- Number of rows
- 0
- Plate thickness (cabinet)
- 6 mm
- Plate thickness (cover/door)
- 6 mm
- Surface protection
- Other
- Unit type
- Modular system
- Width in number of modular spacings
- 17
- Built-in depth
- 200 mm
- Internal depth
- 100 mm
- Mounting method
- Surface mounted (plaster)
- Dimensions
- 500×375×120 mm
- Colour
- Grey
- With mounting plate
- No
- Impact strength
- IK10
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015080018940
- SAP 1200396602
- Code 82518721
Product Documentation
