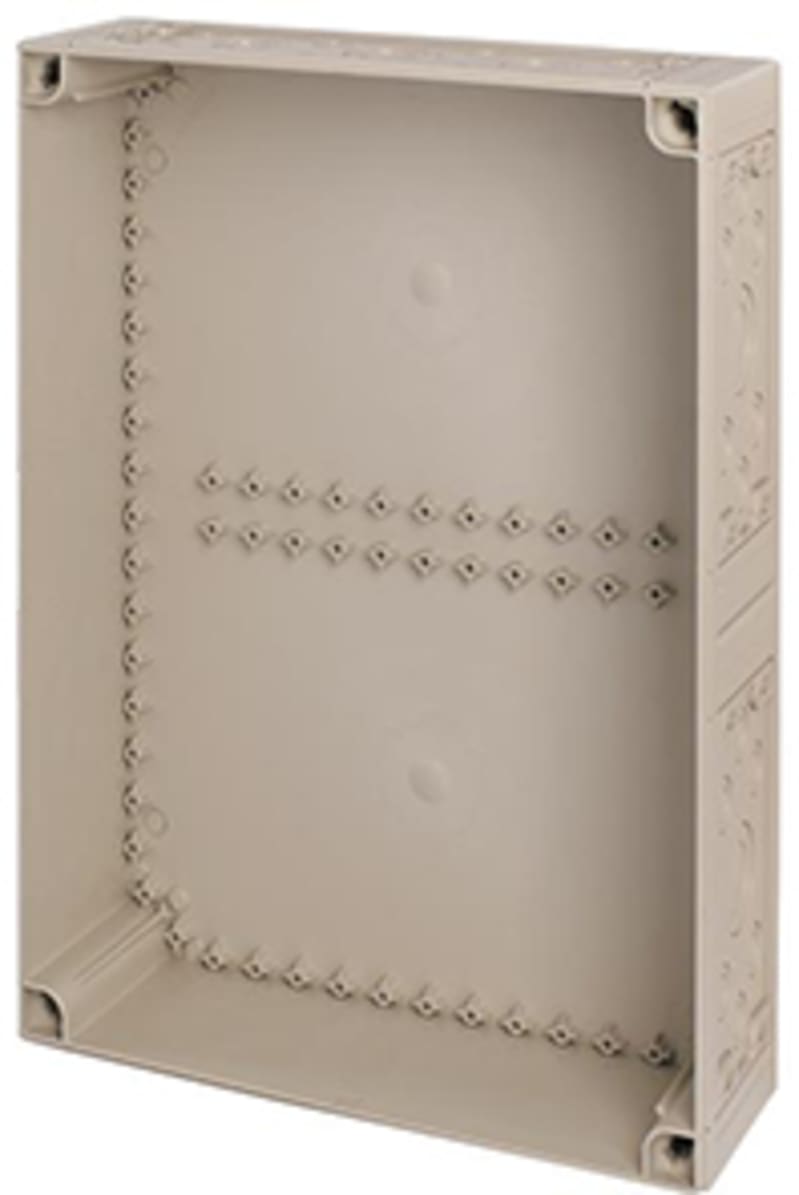

Plinth enclosure 500X375X120MM
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Plinth enclosure 500X375X120MM (part number U-CI45E) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 001893; Depth: 120 mm; Height: 500 mm; Width: 375 mm; Weight: 4.999 kg.
Technical Specifications
- Manufacturer part number (MPN)
- U-CI45E
- EAN / GTIN
- 4015080018933
- Sales unit
- pcs
- Eaton catalogue number
- 001893
- Depth
- 120 mm
- Height
- 500 mm
- Width
- 375 mm
- Weight
- 4.999 kg
- Compliances
- RoHS conform
- Certifications
- EN 61439-2; EN 62208
- Features
- Cover with overpressure release
- Functions
- Extension possible
- Protection class
- II
- RAL-number
- 7035
- Special features
- Flanges ￫#024355 Distance frame for CI45... ￫#110103 Metric cable entry knockouts in all sides Full-area knockouts in the sides
- Suitable for
- Lightning protection; Outdoor use
- Accessory/spare part type
- Individual enclosure bottoms
- Color
- Gray
- Nominal current
- 1600 A
- Type
- Basic enclosure Enclosure bases xEnergy Safety Ci
- Circuit integrity
- Other
- Base type
- Full-area knockouts
- Cable entry type
- 2 x M20; Top and bottom; Transverse; 6 x M25/16; 8 x M25/16; 2 x M40/25; On each 2:; 1 x M50/32
- Cover/door model
- Closed
- Cover/door type
- Optional; None
- Degree of protection
- IP65; Other; IK10
- Enclosure material
- Plastic
- Number of conduit inlets
- 104
- Number of modules
- 1
- Number of openings (flange plates)
- 6
- Number of rows
- 0
- Plate thickness (cabinet)
- 6 mm
- Plate thickness (cover/door)
- 6 mm
- Surface protection
- Other
- Unit type
- Modular system
- Width in number of modular spacings
- 17
- Built-in depth
- 200 mm
- Internal depth
- 100 mm
- Mounting method
- Surface mounted (plaster)
- Dimensions
- 500x375x120 mm
- Colour
- Grey
- With mounting plate
- No
- Impact strength
- IK10
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015080018933
- SAP 1000788311
