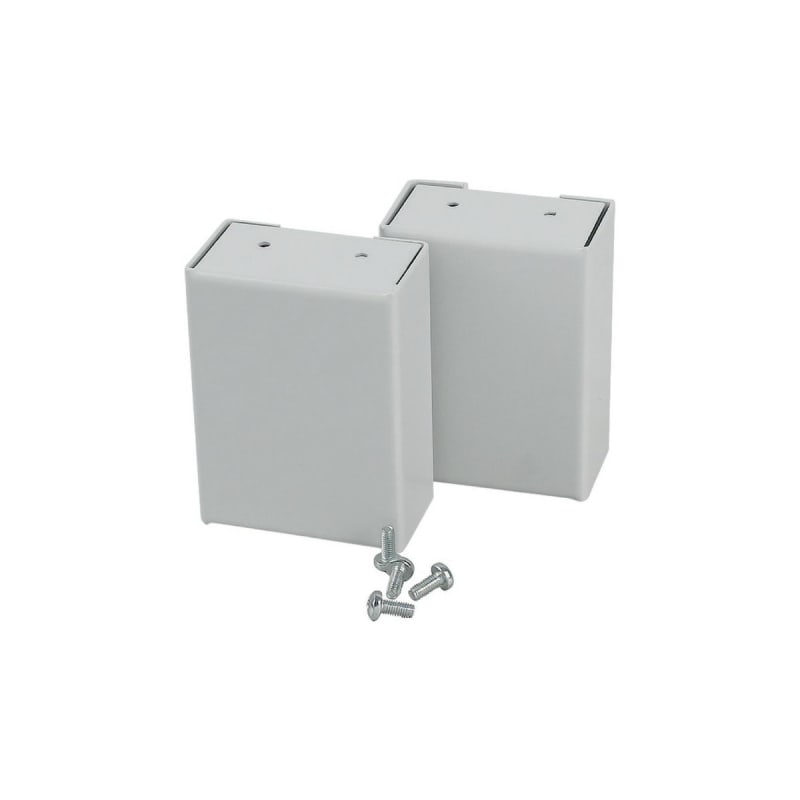

Plinth H100 B 75 (XAP0101AF)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Plinth H100 B 75 (XAP0101AF) is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Eaton catalogue number: 289950; Depth: 320 mm; Height: 70 mm; Width: 200 mm; Weight: 0.8 kg.
Technical Specifications
- Manufacturer part number (MPN)
- XAP0101AF
- EAN / GTIN
- 4015082899509
- Sales unit
- pcs
- Eaton catalogue number
- 289950
- Depth
- 320 mm
- Height
- 70 mm
- Width
- 200 mm
- Weight
- 0.8 kg
- Compliances
- RoHS conform
- RAL-number
- 7035
- Color
- Gray
- Model
- Base complete
- Impact strength
- IK10
- Load capacity - max
- 1500 kg
- Material
- Steel
- Suitable for enclosure building length/depth
- 43 mm
- Suitable for enclosure building width
- 75 mm
- Colour
- Grey
- Max. load capacity
- 1500 kg
- Suitable for aeration/de-aeration
- No
- Suitable for enclosure building depth
- 43 mm
- Suitable for outdoor set-up
- No
- Suitable for cable patch
- No
- Suitable for outdoor installation
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015082899509
- SAP 1200606162
- Code 82998543
Product Documentation
More from Eaton
Eaton
Mounting Kit NZM2 H 4P xE M H200 B600 (XMN240806MP)
Eaton
Cabinet H×W×D 1600X1000X600 IP55
XVTL-MP/BF-10/6/16
Eaton
Contactor DILM11-11(24V50/60HZ)-PI
Eaton
Eaton NZMH2-4-AX250 Molded-Case Circuit Breaker 4-Pole 250A 150KA
Eaton
Top/bottom plate F3A xE Main B600 D600
XSPTF0606
Eaton
LED Steady light, Orange, 230V (SL4-L230-A)
Eaton

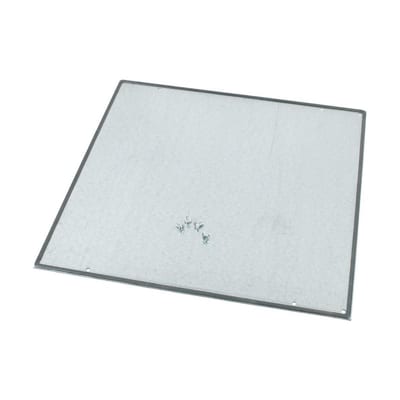

Bottom plate, galvanised, 1100X (XSPBU1106)
Eaton

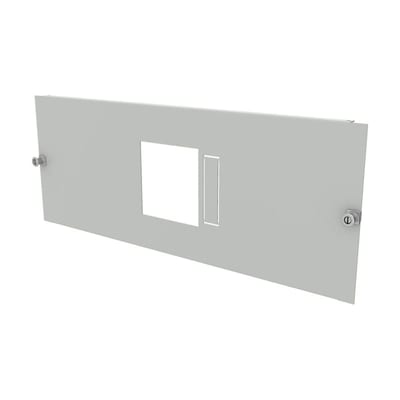

Front plate sym H H200 B600 xE Basic (EP-502359)
