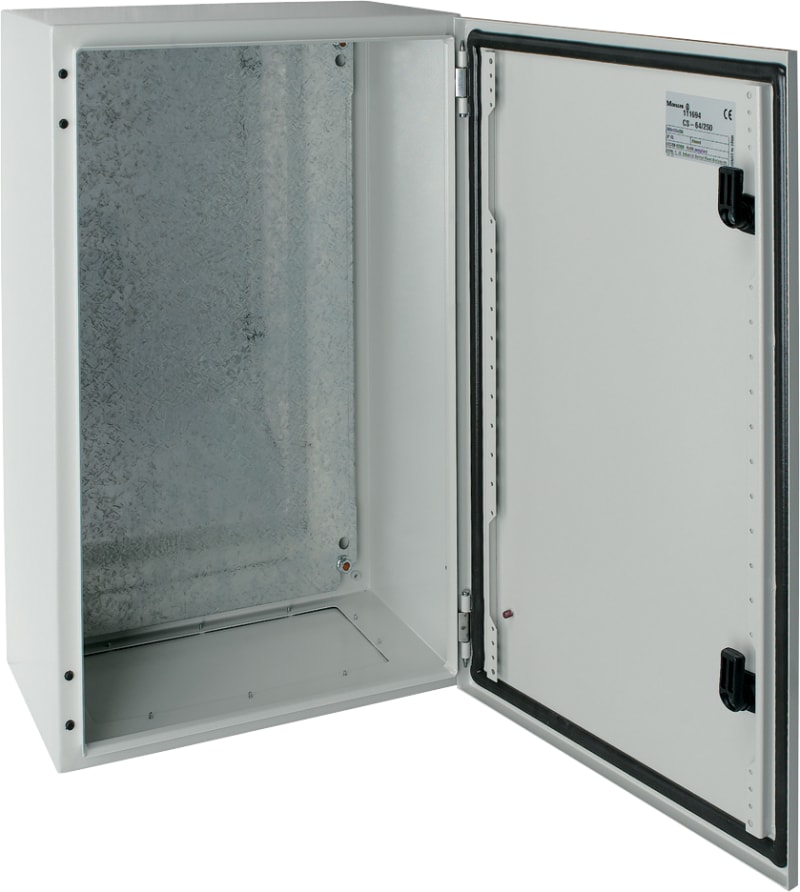

WALL-Mount Cabinet H800 B600 D200
Part numberCS-86/200EAN / GTIN4015081112654HS code8538.10
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton CS-86/200 Enclosure with mounting plate, IP66. RAL7035. EN62238.
Technical Specifications
- Manufacturer part number (MPN)
- CS-86/200
- EAN / GTIN
- 4015081112654
- Sales unit
- pcs
- Eaton catalogue number
- 111706
- Depth
- 200 mm
- Height
- 800 mm
- Width
- 600 mm
- Weight
- 31.05 kg
- Compliances
- UL CSA09 (may be provided with metal sub-panel, no back mounted components are allowed between sub-panel and the back sheet metal enclosure); UL 508A; CSA-C22.2 No.14; IEC/EN 62208; CE marking; RoHS conform
- Certifications
- UL (File No. E336299); In accordance with Directive 2015/863/EU of the European Parliament and Council; IEC/EN 62208; UL CSA08 (request filed); UL (Category Control Number NITW)
- Catalog Notes
- Foamed polyurethane sealing throughout. Impact resistance category IK10 to EN 62262. Sheet steel mounting plate. Bottom plate with foamed gasket. Single door, door stop on the right, door opening angle 120°. Door hinge pins with quick chang
- Features
- Wall build in; Pole fastening
- Fitted with
- Mounting plate; Including M6 threaded welded studs for earth conductor connections in the door:; Cover; Door
- Functions
- Floor standing enclosure
- RAL-number
- 7035
- Suitable for
- Metrical mounting
- Used with
- Industrial control panels
- Color
- Light gray (RAL 7035); Gray
- Type
- Wall-mounting housing CS Wall-mounting housing with mounting plate
- Ambient operating temperature details
- -25 °C - 40 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclical, to IEC 60068-2-30
- Cover/door angle
- 120° door opening angle
- Cover/door profile
- 2 door profiles
- Cover/door type
- Closed; Standard closure 3 mm double-ward key (door interlock); Door hinges on the right, can be converted by user
- Design type
- Canted and seam welded, including two M6 threaded bolts for earth conductor connections inside the enclosure.
- Flange plate dimensions
- 172 mm x 432 mm
- Installation site
- Indoor installation
- Installation type
- Floor standing wall model
- Load capacity (door)
- 25 kg
- Load capacity (mounting plate)
- 500 kg payload, when brackets fitted in all four enclosure corners (vertically or horizontally) and the weights are symmetrically distributed within the enclosure.; 300 kg
- Material
- Steel plate; Steel
- Material quality
- Other
- Material thickness (body)
- 1.5 mm
- Material thickness (bottom plate)
- 2 mm
- Material thickness (door)
- 1.5 mm
- Mounting method
- 9 mm drilling dimensions for wall mounting (Back plate); Wall fastening; Intermediate mounting
- Mounting plate height
- 770 mm
- Mounting plate material
- Sheet steel, hot-galvanized
- Mounting plate width
- 550 mm
- Number of connector holes
- 0
- Number of covers/doors
- 1
- Number of F3A flanges
- 2
- Number of hinges
- 3
- Number of locks
- 2
- Permissible load of the door(s) according to IEC 62208 - max
- 250 N
- Permissible load of the enclosure according to IEC 62208 - max
- 3250 N
- Permissible load of the mounting plate according to IEC 62208 - max
- 3000 N
- Surface finishing
- Powder coating; Gloss; Structured powder spray polyester based paint finish; Semi-textured
- Surface treatment
- Structured powder spray polyester based paint finish
- Thickness of mounting plate
- 3 mm
- Weight of mounted components - max
- 325 kg
- Degree of protection
- IEC: IP66, indoor; UL/CSA Types 1, 12, indoor only.; 12 (NEMA); IP66; IP23 (with ventilating plates); IK10 (impact resistance); IK10
- Heat diss. wall mount individual encl. top
- 68 W
- Heat diss. wall mount middle encl. top
- 60 W
- Heat diss. wall mount starting encl. top
- 64 W
- Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
- 68 W
- Colour
- Grey
- With mounting plate
- Yes
- Number of doors
- 1
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- Yes
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK09
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- Yes
- With cover
- Yes
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- Yes
- Transparent cover
- No
- Suitable for outdoor installation
- Yes
- Max. permitted load of the enclosure according to IEC 62208
- 3250 N
- Max. permitted load of the door(s) according to IEC 62208
- 250 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- Yes
- Country of origin
- Spain
