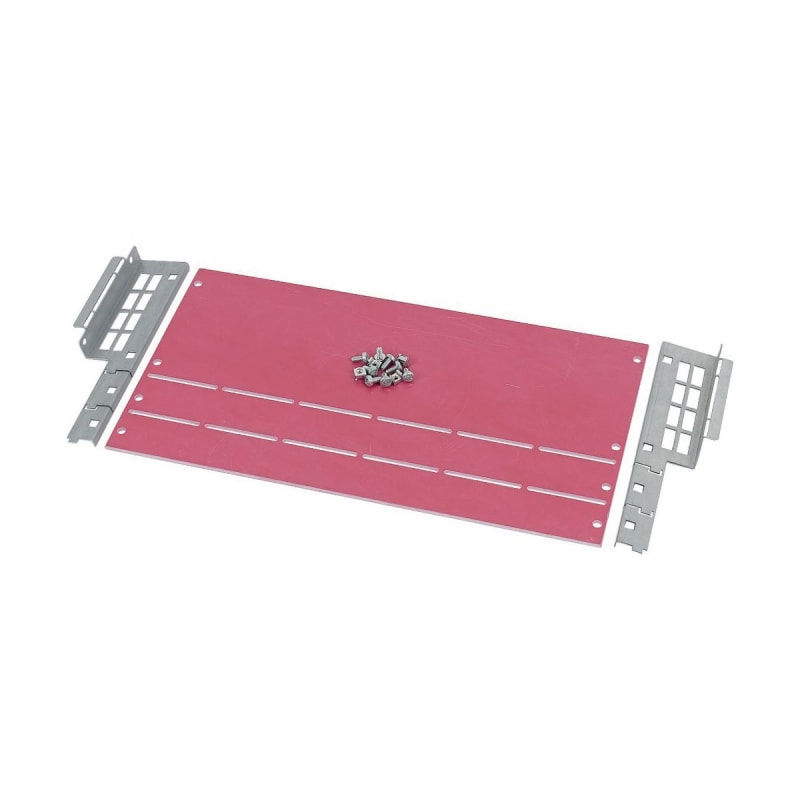

Partition Plate IZMX H xE Main B425 D200
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Partition Plate IZMX H xE Main B425 D200 (part number XPIXBCB-H-0402) is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Eaton catalogue number: 133087; Depth: 315 mm; Height: 50 mm; Width: 270 mm; Weight: 1.2 kg.
Technical Specifications
- Manufacturer part number (MPN)
- XPIXBCB-H-0402
- EAN / GTIN
- 4015081299508
- Sales unit
- pcs
- Eaton catalogue number
- 133087
- Depth
- 315 mm
- Height
- 50 mm
- Width
- 270 mm
- Weight
- 1.2 kg
- Compliances
- RoHS conform
- RAL-number
- 0
- Suitable for
- Internal separation form 2a; Internal separation form 3b; Internal separation form 3a; Internal separation form 4a; Internal separation form 2b; Internal separation form 4b
- Color
- Red
- Construction type
- Individual part
- Material
- Plastic
- Modular spacing
- 12.5 mm
- Number of height units
- 0
- Suitable for enclosure building length/depth
- 200 mm
- Suitable for enclosure building width
- 425 mm
- Surface finishing
- Other
- Suitable for enclosure building depth
- 200 mm
- Colour
- Red
- With cable entry
- No
- With lock
- No
- For internal separation form 2a
- Yes
- For internal separation form 2b
- Yes
- For internal separation form 3a
- Yes
- For internal separation form 3b
- Yes
- For internal separation form 4a
- Yes
- For internal separation form 4b
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081299508
- SAP 1200605973
- Code 82996777
