Busbaradapter (101454)
Pricing
Request a quote
We reply within 24 hours
Overview

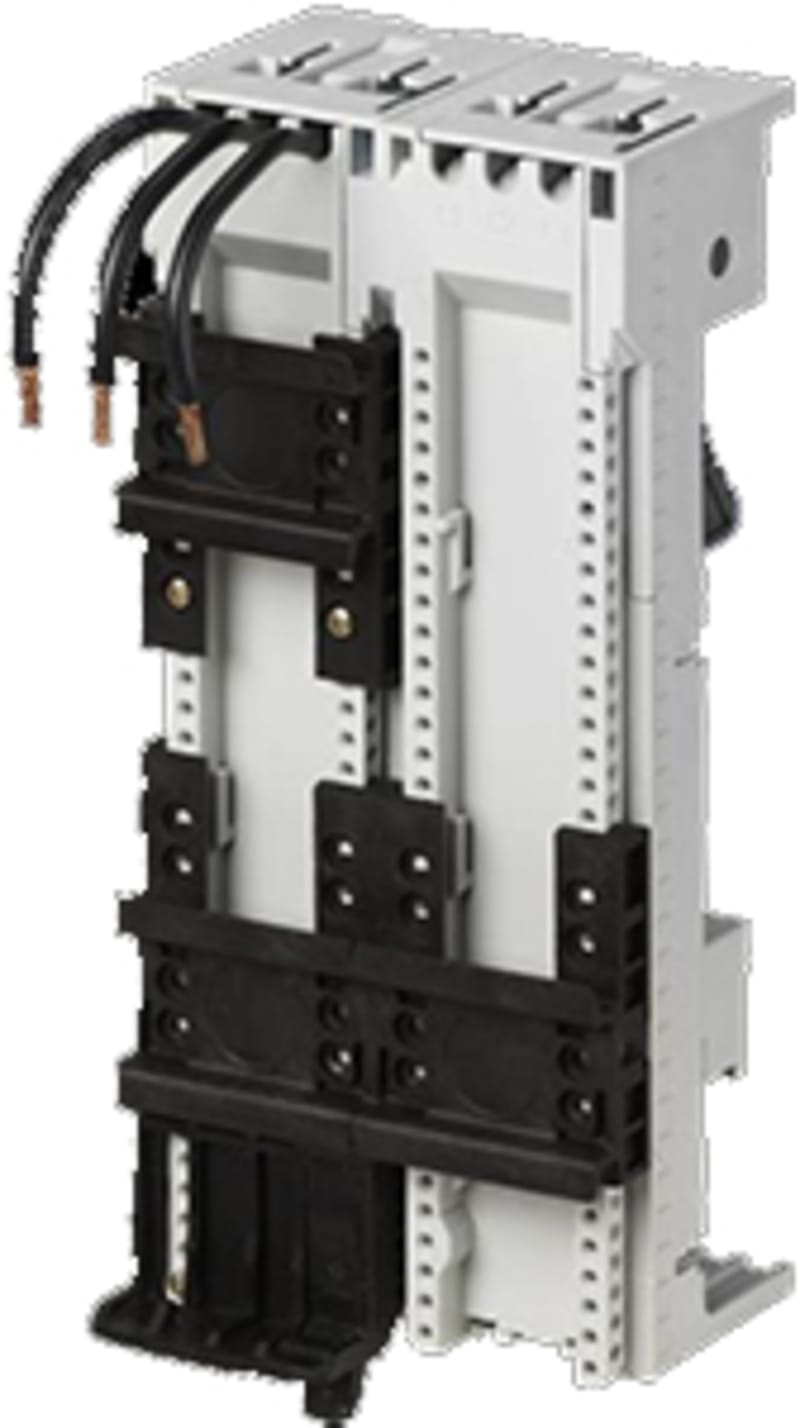

Eaton Busbaradapter (101454) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 2 pcs; Eaton catalogue number: 101454; Depth: 200 mm; Height: 73 mm; Width: 90 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 101454
- EAN / GTIN
- 4015081013746
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Eaton catalogue number
- 101454
- Depth
- 200 mm
- Height
- 73 mm
- Width
- 90 mm
- Weight
- 0.494 kg
- Certifications
- Certified by UL for use in Canada; IEC60439-1; UL 508A; CSA-C22.2 No. 14; UL File No.: E300273; UL; UL Category Control No.: NMTR; NMTR7; CE
- Special features
- Terminal capacity: 6 mm² (AWG 10)
- Nominal current
- 32 A
- Type
- Busbar adapter SASY Busbar system 60 mm
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent Pvid
- 2.4 W
- Electric connection type
- 3 conductors AWG 10
- Rated operation current (Ie)
- 32 A
- Voltage rating (UL CSA 13)
- 600 V AC, UL/CSA
- Voltage rating at AC
- 690 V
- Adapter width
- 90 mm
- Busbar distance
- 60 mm
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Mounting rail armament
- 2 mounting rails
- Number of DIN rails
- 3
- Rail width
- 35 mm
- Type of electric connection
- 3 conductors AWG 10
- Rated current In
- 32 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 90 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081013746
- SAP 1200236458
- Code 82234266
Product Documentation
