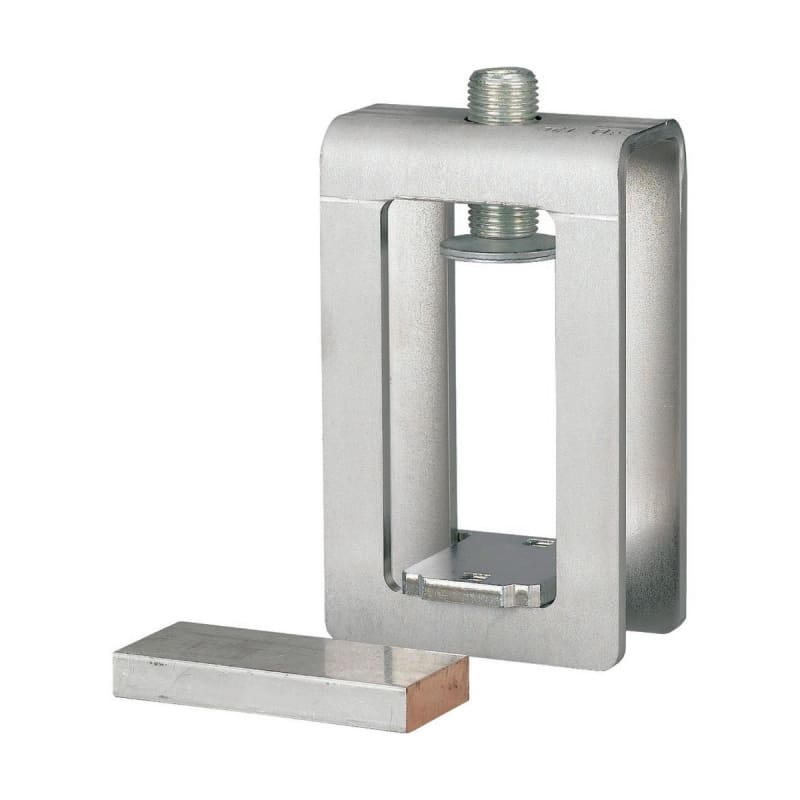

Profile Terminal 51X20-42
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Profile Terminal 51X20-42 (part number AKP1000) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 3 pcs; Eaton catalogue number: 107199; Depth: 82 mm; Height: 118 mm; Width: 45 mm.
Technical Specifications
- Manufacturer part number (MPN)
- AKP1000
- EAN / GTIN
- 4015081069620
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Eaton catalogue number
- 107199
- Depth
- 82 mm
- Height
- 118 mm
- Width
- 45 mm
- Weight
- 0.717 kg
- Compliances
- UL CSA09 (refer to approbation report); RoHS conform
- Certifications
- UL (File No. E307559); CSA (Class No. 3211-37); UL (Category Control Number NMTR2, NMTR8); UL508A; North America (UL listed, CSA certified); IEC 60439-1; CSA-C22.2 No. 14; CSA (File No. 236217); CE marking
- Functions
- Profile terminal; Connections; Current limiting circuit breaker, refer to approbation report
- Special features
- Termination to busbars without drilling Put a spacer between the laminated copper busbars when connecting in parallel
- Suitable for
- T-rail; Strip conductor connection
- Used with
- Double T profile; Feeder circuits; 185 mm system; Connection; 60 mm system
- Type
- 185 mm system 60 mm system Connection
- Rated operation current (Ie)
- 1600 A
- Rated operational current
- 1600 A
- Rated operational current (Ie) - max
- 1600 A
- Voltage rating (UL CSA 13)
- Max. 600 V AC
- Busbar thickness - max
- 40 mm
- Busbar thickness - min
- 40 mm
- Busbar width - max
- 30 mm
- Busbar width - min
- 30 mm
- Conductor cross section - max
- 1000 mm²
- Degree of protection
- Feeder circuits; UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
- Terminal capacity (conductor)
- 20 mm - 42 mm (51x); 1000 mm² (Cu band)
- Width clamp
- 94 mm
- Max. conductor cross section
- 1000 mm²
- Busbar thickness
- 40 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- No
- Suitable for sector conductor connection
- No
- Max. rated operation current Ie
- 1600 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081069620
- SAP 1200607349
- Code 82995627
Product Documentation
More from Eaton
Eaton
Eaton FAZ-K10/3N Miniature Circuit Breaker — 3P+N, Type K, 10 A, 15 kA
Eaton
Eaton NZML2-VX160-SVE Molded-Case Circuit Breaker 3-Pole 160A 150KA
Eaton
DG1 variable-frequency drive 230V: 1,5kW (DG1-327D8FB-C21C)
Eaton

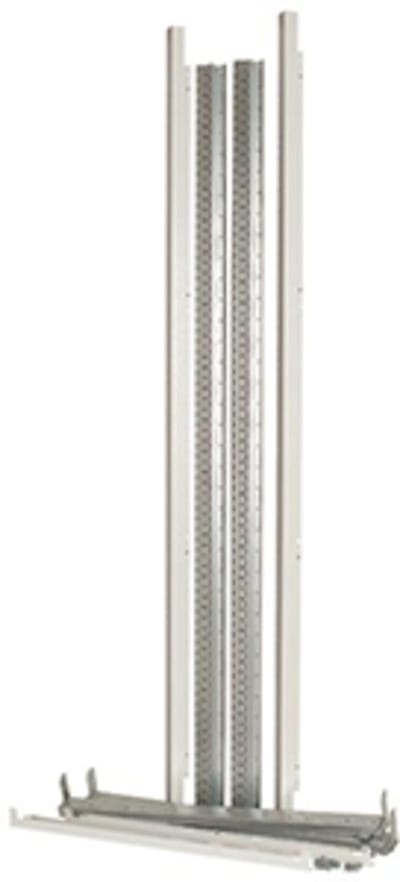

Frame B=850mm, H=1600mm
XVTL-BP-F-85/16
Eaton

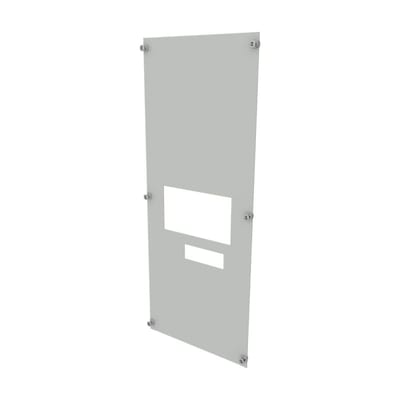

Front plate NZM4 V xVTL H800 B400 xEB
EP-502352
Eaton

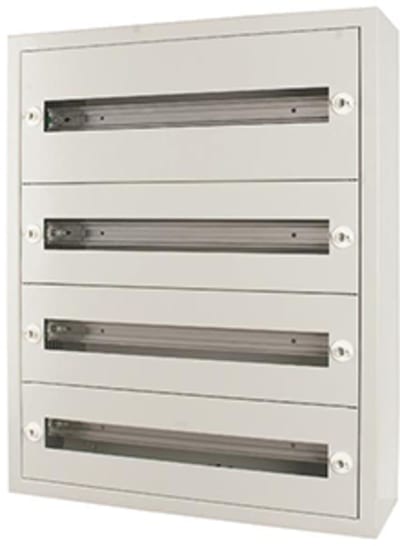

Cabinet W×H×D=773 x 2000 x 175 mm
BP-MN-800/20/1,75
Eaton

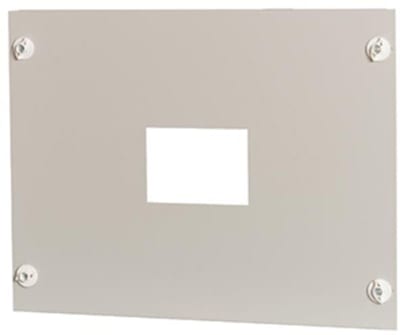

Front plate NZM3 V H400 B800 xE Basic (BPZ-FP/S-NZM3-XDV-800-MV)
