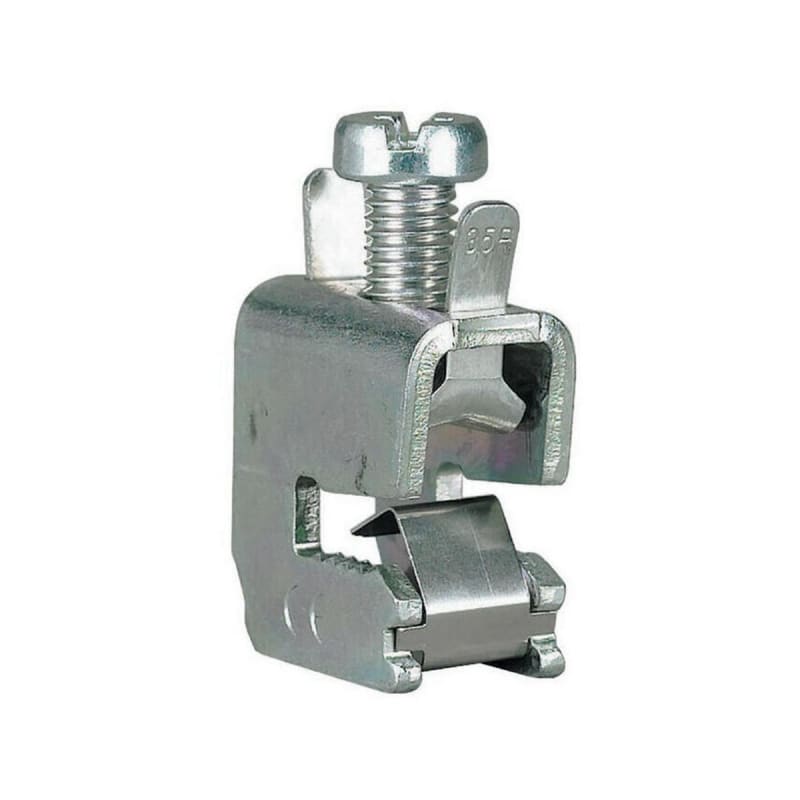

Connection Terminal 4-35mm², f 5mm
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Connection Terminal 4-35mm², f 5mm (part number AKU35/5) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 50 pcs; Eaton catalogue number: 107188; Depth: 16 mm; Height: 36 mm; Width: 29 mm.
Technical Specifications
- Manufacturer part number (MPN)
- AKU35/5
- EAN / GTIN
- 4015081069514
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 107188
- Depth
- 16 mm
- Height
- 36 mm
- Width
- 29 mm
- Weight
- 0.044 kg
- Compliances
- UL CSA09 (refer to approbation report); RoHS conform
- Certifications
- UL508A; North America (UL listed, CSA certified); CSA-C22.2 No. 14; CSA (File No. 236217); IEC 60439-1; UL (File No. E307559); CSA (Class No. 3211-37); UL (Category Control Number NMTR2, NMTR8); CE marking
- Functions
- Current limiting circuit breaker, refer to approbation report; Connections; Universal conductor connection terminal
- Special features
- With integrated retaining spring, open terminal chamber and captive terminal screw
- Suitable for
- Strip conductor connection; Round conductor connection; Flat rail; Sector conductor connection
- Used with
- All 5 mm thick flat busbars; Feeder circuits; Compact system; Connection; 60 mm system
- Type
- 60 mm system Compact system Connection
- Rated operation current (Ie)
- 270 A
- Rated operational current
- 270 A
- Rated operational current (Ie) - max
- 270 A
- Voltage rating (UL CSA 13)
- Max. 600 V AC
- Busbar thickness - max
- 5 mm
- Busbar thickness - min
- 5 mm
- Conductor cross section - max
- 35 mm²
- Degree of protection
- UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking; Feeder circuits
- Terminal capacity (conductor)
- 9 mm x 0.8 mm (3x); 4 mm² - 35 mm²; 9 mm x 0.8 mm (6x); AWG 10 - AWG 2
- Terminal contact area
- 1.5 mm x 11 mm
- Width clamp
- 15.5 mm
- Max. conductor cross section
- 35 mm²
- Busbar thickness
- 5 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- Yes
- Suitable for sector conductor connection
- Yes
- Max. rated operation current Ie
- 270 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081069514
- SAP 1200607327
- Code 82995617
Product Documentation
