Connection Terminal 1,5-16mm², f 5mm
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Connection Terminal 1,5-16mm², f 5mm (part number AKU16/5) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 100 pcs; Eaton catalogue number: 107187; Depth: 12 mm; Height: 25 mm; Width: 23 mm.
Technical Specifications
- Manufacturer part number (MPN)
- AKU16/5
- EAN / GTIN
- 4015081069507
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Eaton catalogue number
- 107187
- Depth
- 12 mm
- Height
- 25 mm
- Width
- 23 mm
- Weight
- 0.02 kg
- Compliances
- UL CSA09 (refer to approbation report); RoHS conform
- Certifications
- CSA (Class No. 3211-37); UL508A; CSA (File No. 236217); IEC 60439-1; UL (File No. E307559); CSA-C22.2 No. 14; North America (UL listed, CSA certified); UL (Category Control Number NMTR2, NMTR8); CE marking
- Functions
- Current limiting circuit breaker, refer to approbation report; Connections; Universal conductor connection terminal
- Special features
- With integrated retaining spring, open terminal chamber and captive terminal screw
- Suitable for
- Round conductor connection; Sector conductor connection; Flat rail; Strip conductor connection
- Used with
- All 5 mm thick flat busbars; Feeder circuits; 60 mm system; Connection; Compact system
- Type
- 60 mm system Compact system Connection
- Rated operation current (Ie)
- 180 A
- Rated operational current
- 180 A
- Rated operational current (Ie) - max
- 180 A
- Voltage rating (UL CSA 13)
- Max. 600 V AC
- Busbar thickness - max
- 5 mm
- Busbar thickness - min
- 5 mm
- Conductor cross section - max
- 16 mm²
- Degree of protection
- Feeder circuits; UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
- Terminal capacity (conductor)
- AWG 14 - AWG 6; 6 mm x 0.5 mm (8x); 1.5 mm² - 16 mm²
- Terminal contact area
- 7.5 mm x 7.5 mm
- Width clamp
- 11.5 mm
- Max. conductor cross section
- 16 mm²
- Busbar thickness
- 5 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- Yes
- Suitable for sector conductor connection
- Yes
- Max. rated operation current Ie
- 180 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081069507
- SAP 1200607332
- Code 82995648
Product Documentation
More from Eaton
Eaton
Flange M20/16 steel xE
F3A-XP-M20/16
Eaton
Undervoltagestrigger 208-240V (NZM2/3-XU208-240AC)
Eaton
LOAD-Break Switch PN2-160
Eaton
Residual current circuit breaker with overcurrent xDigital 6A C Type-F (300485)
Eaton
Terminal Set (D-K2X240)
Eaton
Door handle OLU 3-Point xE Basic
BPZ-SH-L-3P/OLU
Eaton

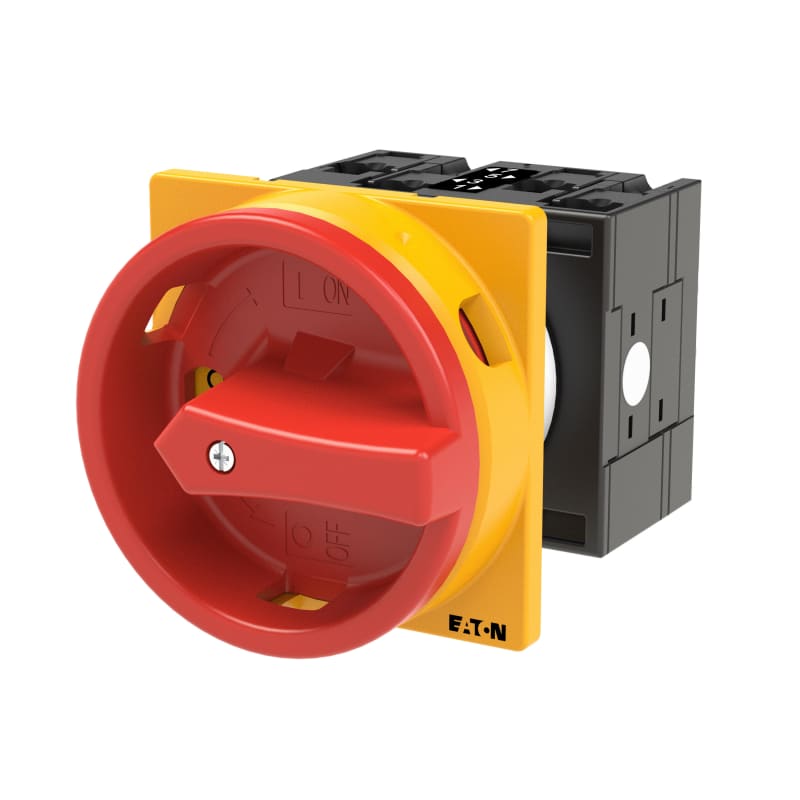

Safety Switch 3P Recessed (P1-25/EA/Svb)
