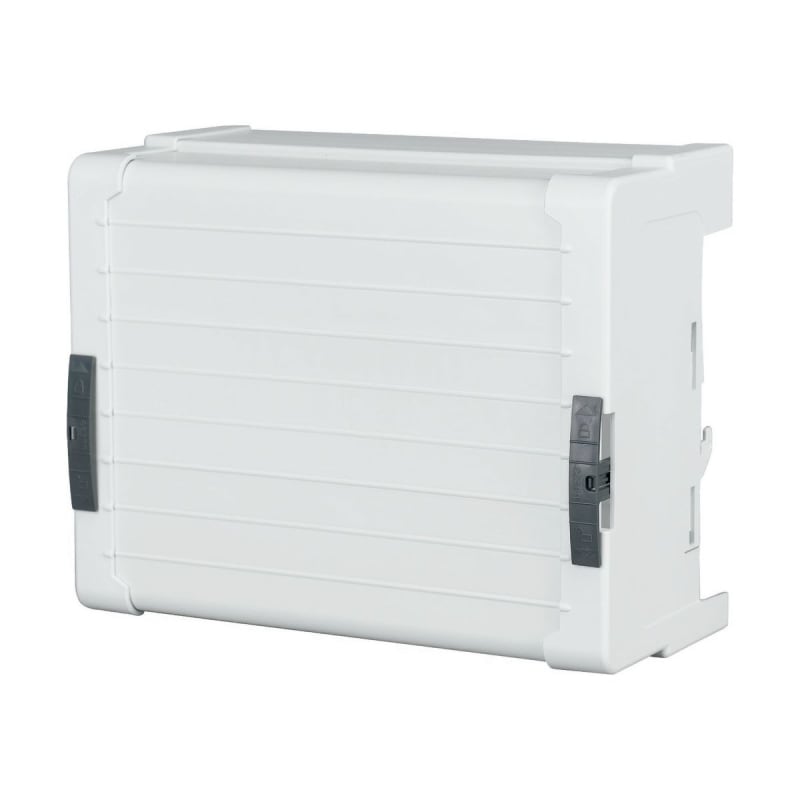

Connection.box 95-300mm², 180-240M
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Connection.box 95-300mm², 180-240M (part number BBA-TP3/300) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Eaton catalogue number: 107185; Depth: 260 mm; Height: 210 mm; Width: 125 mm; Weight: 1.991 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BBA-TP3/300
- EAN / GTIN
- 4015081069484
- Sales unit
- pcs
- Eaton catalogue number
- 107185
- Depth
- 260 mm
- Height
- 210 mm
- Width
- 125 mm
- Weight
- 1.991 kg
- Compliances
- RoHS conform
- Features
- Self-extinguishing acc. UL 94
- Functions
- Connections; Connection kit
- Special features
- Pole pitch adjustable Fixing direct over busbar terminals Including shroud with adjustable width Looping is possible
- Suitable for
- Flat rail; Three-pole; Round conductor connection; Sector conductor connection; Strip conductor connection
- Used with
- 25 mm x 5/10 mm rail; Double T profile; 30 mm x 5/10 mm rail; 20 mm x 5/10 mm rail; 60 mm system; Connection
- Type
- 60 mm system Connection
- Temperature resistance
- Temperature resistant to 120 °C
- Creepage resistance
- CTI 200
- Rated operation current (Ie)
- 560 A
- Rated operational current
- 560 A
- Rated operational current (Ie) - max
- 560 A
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Busbar width - max
- 30 mm
- Busbar width - min
- 12 mm
- Conductor cross section - max
- 300 mm²
- Material
- Silicon free, chlorine free
- Terminal capacity (conductor)
- 95 mm² - 300 mm²; MCM 300 - MCM 600
- Width clamp
- 240 mm
- Max. conductor cross section
- 300 mm²
- Busbar thickness
- 5–10 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- Yes
- Suitable for sector conductor connection
- Yes
- Max. rated operation current Ie
- 560 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081069484
- SAP 1200607330
- Code 82995651
