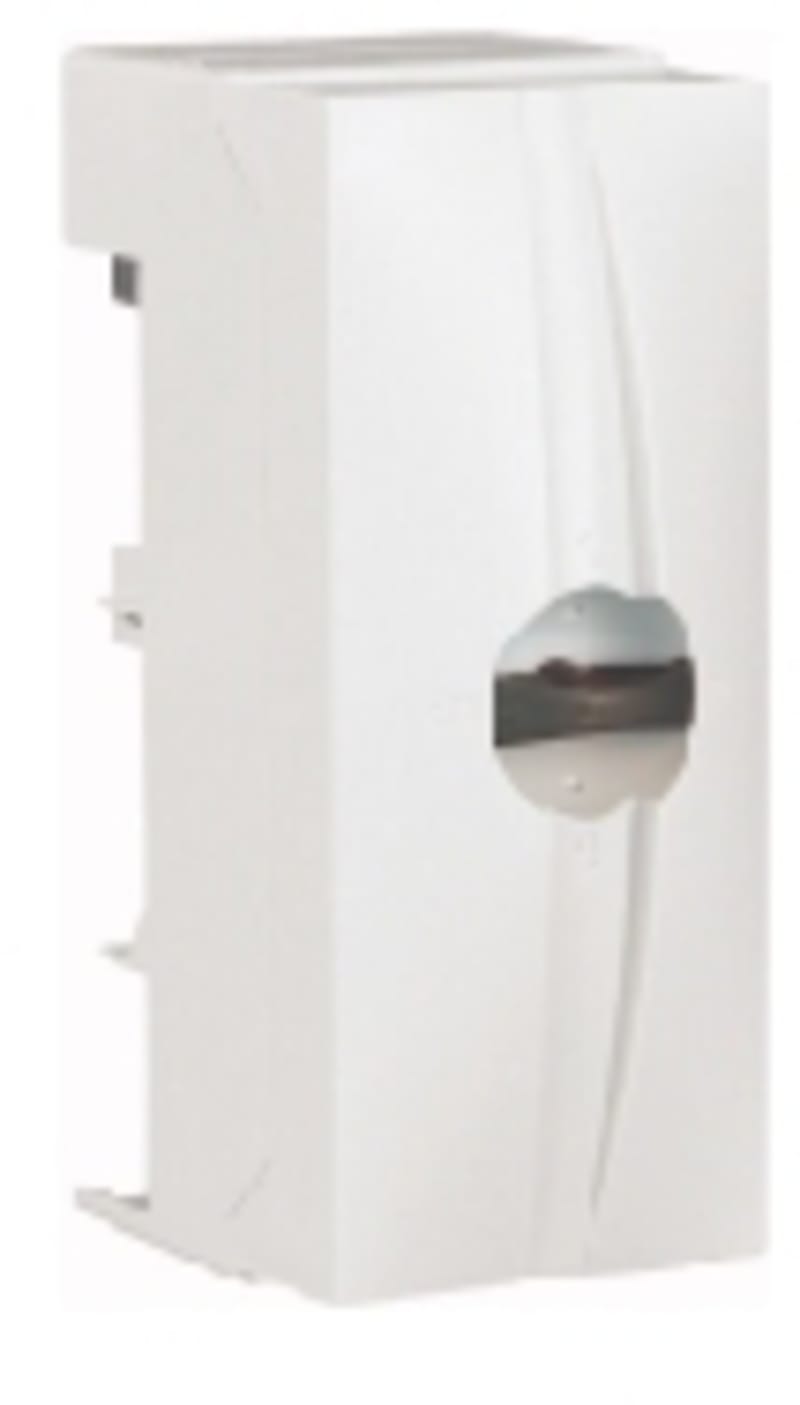

Connection.box 35-120mm², 81mm br.
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Connection.box 35-120mm², 81mm br. (part number BBA-TP3/120) is listed under Electrical Components / RCDs & RCBOs. Sales unit: pcs; Eaton catalogue number: 107184; Depth: 81 mm; Height: 84 mm; Width: 111.76 mm; Weight: 0.52 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BBA-TP3/120
- EAN / GTIN
- 4015081069477
- Sales unit
- pcs
- Eaton catalogue number
- 107184
- Depth
- 81 mm
- Height
- 84 mm
- Width
- 111.76 mm
- Weight
- 0.52 kg
- Compliances
- UL CSA09 (refer to approbation report); RoHS conform
- Certifications
- CSA-C22.2 No. 14; CSA (File No. 236217); IEC 60439-1; North America (UL listed, CSA certified); CE marking; UL508A; UL (Category Control Number NMTR, NMTR7); UL (File No. E300273); CSA (Class No. 3211-37)
- Features
- Self-extinguishing acc. UL 94
- Functions
- Connections; Clamp plate; Current limiting circuit breaker, refer to approbation report
- Special features
- The terminal can be removed for the connection of uncut conductors Looping is possible
- Suitable for
- Sector conductor connection; Flat rail; Round conductor connection; Three-pole; Strip conductor connection
- Used with
- 12 mm x 5/10 mm rail; 25 mm x 5/10 mm rail; 30 mm x 5/10 mm rail; Double T profile; 15 mm x 5/10 mm rail; 20 mm x 5/10 mm rail; Feeder circuits; 60 mm system; Connection
- Type
- 60 mm system Connection
- Temperature resistance
- Temperature resistant to 120 °C
- Creepage resistance
- CTI 200
- Rated operation current (Ie)
- 440 A
- Rated operational current
- 440 A
- Rated operational current (Ie) - max
- 440 A
- Voltage rating (UL CSA 13)
- Max. 600 V AC
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Busbar width - max
- 30 mm
- Busbar width - min
- 12 mm
- Conductor cross section - max
- 120 mm²
- Degree of protection
- Feeder circuits; UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
- Material
- Silicon free, chlorine free
- Terminal capacity (conductor)
- AWG 2 - MCM 250; 16 mm x 0.8 mm (10x); 35 mm² - 120 mm²
- Terminal contact area
- 15 mm x 15 mm
- Width clamp
- 81 mm
- Max. conductor cross section
- 120 mm²
- Busbar thickness
- 5–10 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- Yes
- Suitable for sector conductor connection
- Yes
- Max. rated operation current Ie
- 440 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081069477
- SAP 1000689689
- Code 8398851
Product Documentation
