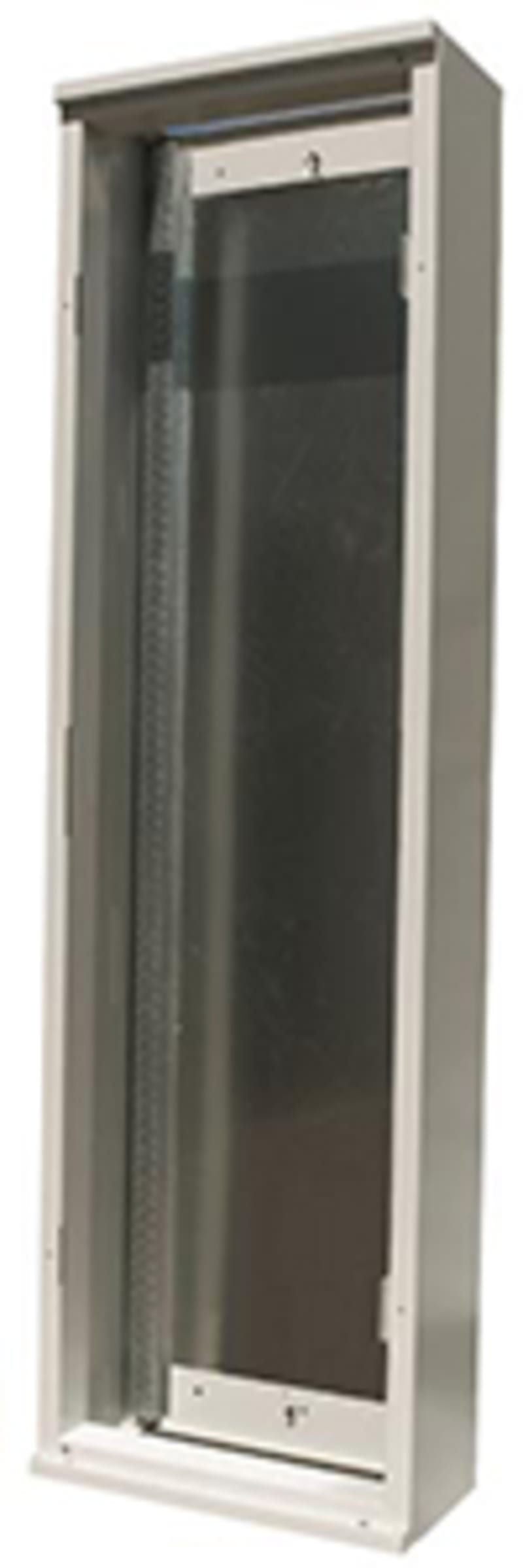

White cabinet B=1000 H=2060 D=300
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton White cabinet B=1000 H=2060 D=300 (part number BP-F-1000/20/3-F-W) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 120696; Depth: 300 mm; Height: 2060 mm; Width: 1000 mm; Weight: 48 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BP-F-1000/20/3-F-W
- EAN / GTIN
- 4015081185269
- Sales unit
- pcs
- Eaton catalogue number
- 120696
- Depth
- 300 mm
- Height
- 2060 mm
- Width
- 1000 mm
- Weight
- 48 kg
- Compliances
- RoHS conform
- Features
- EMC-version; Mounting plate depth-adjustable
- Fitted with
- Door
- Functions
- Basic device
- RAL-number
- 9016
- Suitable for
- Metrical mounting
- Application
- Indoor (installation site)
- Color
- Traffic white (RAL 9016); White
- Type
- Basic device
- Grade material
- Sheet steel
- Installation type
- Floor installation possible
- Material
- Steel; Sheet steel
- Mounting method
- Floor standing distribution board; Detached
- Number of connector holes
- 0
- Number of covers/doors
- 2
- Number of locks
- 0
- Surface finishing
- With powder coating; Powder coating
- Degree of protection
- IK08 (impact resistance); IP30; Other; IK08
- Colour
- White
- With mounting plate
- No
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- Yes
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK07
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- No
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081185269
- SAP 1200283515
- Code 82253628
Product Documentation
More from Eaton
Eaton
Top/bottom plate just xE Light (XLST3A36)
Eaton
Switch-disconnector DMM-160/3N/I5/P-B
Eaton
Top/bottom plate alu xE Light (XLST5A1353)
Eaton
Top/bottom plate xE Light (XLST5856)
Eaton
Contactor, DILM7-10(110V50HZ)-PI (DILM7-10(110V50HZ,120V60HZ)-PI)
Eaton
Door cable compartment H1450 B200 xE Basic
BPZ-CD-200/15
Eaton
Eaton INX40B4-32F-1
Eaton

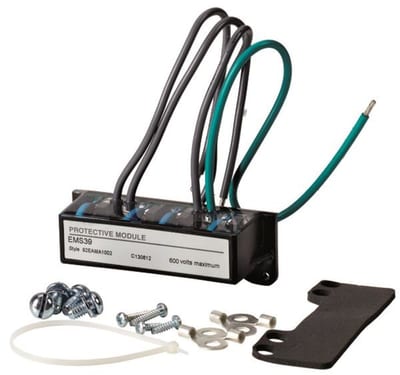

Eaton S811+ Soft Starter MOV Damping Module 600 V
