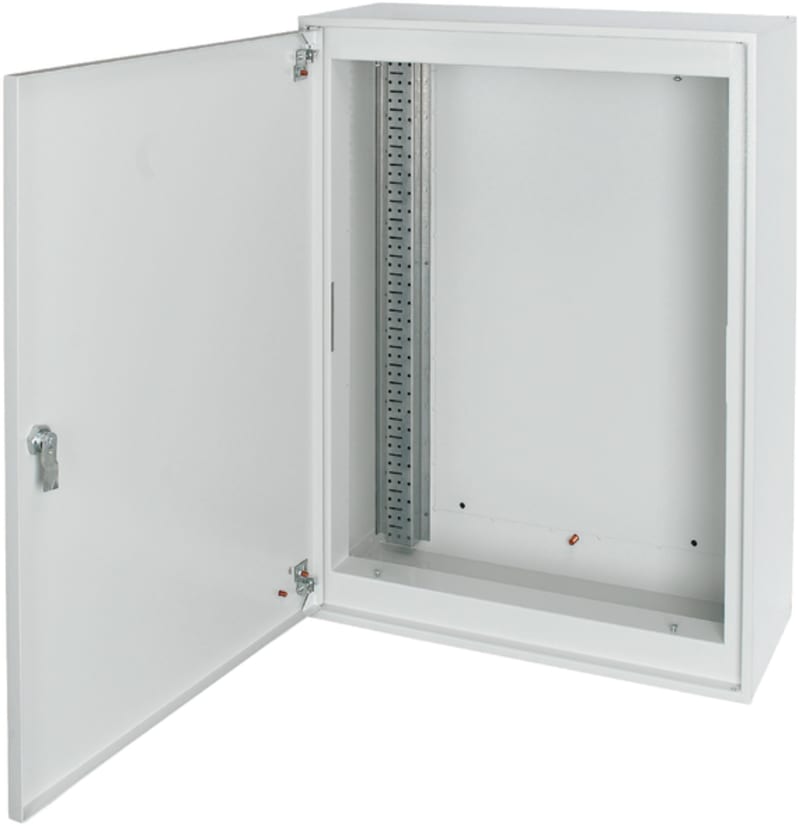

Panel board B600 H1060
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Panel board B600 H1060 (part number BP-O-600/10-EW) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 116621; Depth: 262 mm; Height: 1060 mm; Width: 600 mm; Weight: 32 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BP-O-600/10-EW
- EAN / GTIN
- 4015081163663
- Sales unit
- pcs
- Eaton catalogue number
- 116621
- Depth
- 262 mm
- Height
- 1060 mm
- Width
- 600 mm
- Weight
- 32 kg
- Compliances
- RoHS conform
- Features
- EMC-version
- Fire resistance grade
- Fire-resistant (E60/EW60)
- Functions
- Extension possible; Basic device; Sealable
- RAL-number
- 7035
- Application
- Indoor (installation site)
- Color
- Light gray (RAL 7035); Gray
- Type
- Basic device
- Built-in height
- 1090 mm
- Built-in width
- 630 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Door; Three-point turn-lock; Single
- Enclosure material
- Steel
- Internal depth
- 257.5 mm
- Material
- Sheet steel
- Mounting method
- Surface mounted (plaster); Surface mounting
- Number of rows
- 6
- Surface finishing
- With powder coating
- Width in number of modular spacings
- 24
- Built-in depth
- 300 mm
- Degree of protection
- IP30
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 257.5 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081163663
- SAP 1200283962
- Code 82252820
Product Documentation
More from Eaton
Eaton
Terminal support (KT-1)
Eaton
Front plate plinth H200 B600 xE Basic
BPZ-FS-600/2
Eaton
Mounting Kit BZM1/2 V H300 B600 xE Basic
2457603
Eaton
Mounting frame xVTL H1850 B850 xEB
EP-502525
Eaton

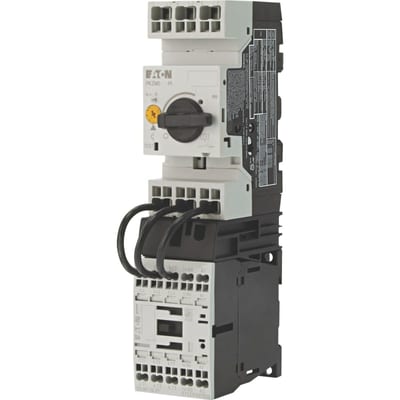

Direct-on-line starter,MSC-D-0,63-M7(230V50HZ)-PI
Eaton
Eaton FAZ-C12/4 Miniature Circuit Breaker — 4P, Type C, 12 A, 15 kA
Eaton
Fr.plate HxB=100X600 H
BPZ-FP-600/100-BL-W
Eaton
Position Switch LS-S20
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy BP-O-600/10-EW?
- BP-O-600/10-EW can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is BP-O-600/10-EW.
- What is the HS code for BP-O-600/10-EW?
- The customs tariff (HS) code for BP-O-600/10-EW is 8538.10.
- Who manufactures BP-O-600/10-EW?
- BP-O-600/10-EW is a Eaton product in the Enclosures range.
- Is a datasheet available for BP-O-600/10-EW?
- Yes — the BP-O-600/10-EW datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for BP-O-600/10-EW?
- The minimum order quantity is 1.
- Is BP-O-600/10-EW available?
- Yes — BP-O-600/10-EW is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
