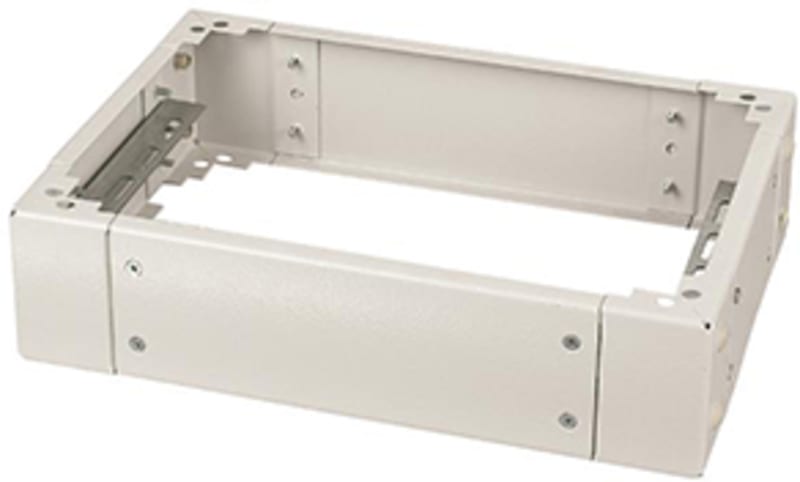

Plinth H×W×D=100X400X300MM (BPZ-KR41/300)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Plinth H×W×D=100X400X300MM (BPZ-KR41/300) is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Eaton catalogue number: 116269; Depth: 286.5 mm; Height: 110 mm; Width: 400 mm; Weight: 3.76 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BPZ-KR41/300
- EAN / GTIN
- 4015081160082
- Sales unit
- pcs
- Eaton catalogue number
- 116269
- Depth
- 286.5 mm
- Height
- 110 mm
- Width
- 400 mm
- Weight
- 3.76 kg
- Compliances
- RoHS conform
- Functions
- Additional equipment
- RAL-number
- 7035
- Special features
- For total weight >; 300 kg Cladding removable on all sides Can be fitted to top or bottom of the enclosure Supplied assembled Including fixing sundries Cable clamp rail not included as standard
- Suitable for
- Cable patch
- Used with
- Floor-standing enclosure; Accessory consideration; Service distribution board IVS; Accessory
- Accessory/spare part type
- Cable marshalling box
- Color
- Gray
- Model
- Base complete
- Type
- Additional equipment for floor-standing service distribution board IVS
- Housing material
- Sheet steel
- Load capacity - max
- 350 kg
- Material
- Steel; Sheet steel
- Mounting method
- Floor standing distribution board
- Suitable for enclosure building length/depth
- 300 mm
- Suitable for enclosure building width
- 400 mm
- Suitable for length/depth
- 300 mm
- Suitable for width
- 400 mm
- Surface finishing
- With powder coating
- Unit type
- Modular system
- Degree of protection
- IP30
- Dimensions
- 100×400×300 mm
- Colour
- Grey
- Max. load capacity
- 350 kg
- Suitable for aeration/de-aeration
- No
- Suitable for enclosure building depth
- 300 mm
- Suitable for outdoor set-up
- No
- Suitable for cable patch
- Yes
- Suitable for outdoor installation
- No
- Country of origin
- Czechia
