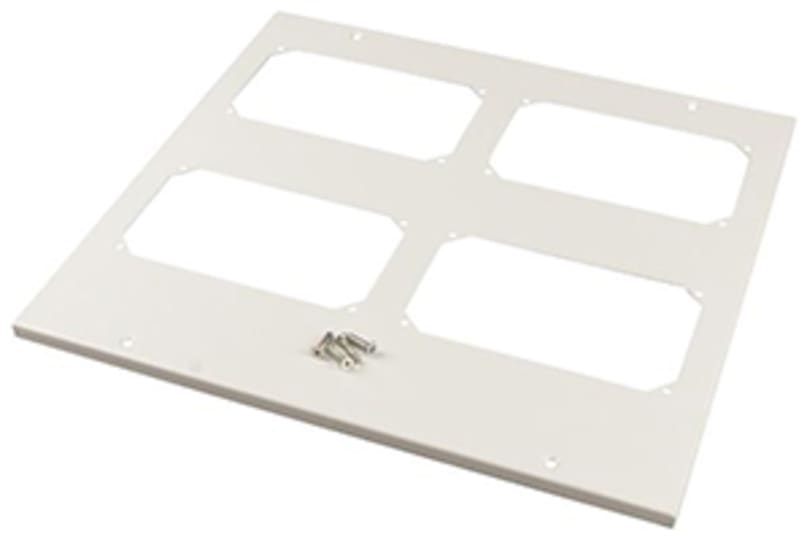

Top/bottom plate F3A xE Light (XLST5F105)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Top/bottom plate F3A xE Light (XLST5F105) is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Eaton catalogue number: 114694; Depth: 950 mm; Height: 30 mm; Width: 400 mm; Weight: 4.7 kg.
Technical Specifications
- Manufacturer part number (MPN)
- XLST5F105
- EAN / GTIN
- 4015081140947
- Sales unit
- pcs
- Eaton catalogue number
- 114694
- Depth
- 950 mm
- Height
- 30 mm
- Width
- 400 mm
- Weight
- 4.7 kg
- Compliances
- RoHS conform
- Used with
- Combination enclosure; Control centres XVTL; Accessory
- Special features
- Including screws\nWith flange cutouts\nRoof panel with cutouts for F3A flange
- Type
- Accessory\nCombination enclosure\nControl centres XVTL
- Accessory/spare part type
- Bottom plate; Roof plates
- Fitted with
- Cable entry
- Surface finishing
- Polyester powder coating; With powder coating RAL 7035, light gray; Powder coating
- Color
- Gray
- Degree of protection
- IP55 (with cable entry flange F3A)
- Unit type
- Modular system
- Number of openings
- 6
- RAL-number
- 7035
- Suitable for enclosure building length/depth
- 500 mm
- Suitable for enclosure building width
- 1000 mm
- Suitable for length/depth
- 500 mm
- Suitable for width
- 1000 mm
- Material
- Steel
- Housing material
- Sheet steel 1.25 mm
- Suitable for
- Bottom planking; Roof planking
- Colour
- Grey
- With cable entry
- Yes
- Suitable for enclosure building depth
- 500 mm
- With de-aeration
- No
- Suitable for outdoor set-up
- No
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- Yes
- Suitable for outdoor installation
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081140947
- SAP 1200604451
- Code 82993060
Product Documentation
More from Eaton
Eaton
Top/bottom Sealed BxD=400X249MM (BP-TBP-400-BL)
Eaton
Transparent door (BP-DT-600/15)
Eaton
Steel plate door (BP-DS-400/10-P)
Eaton

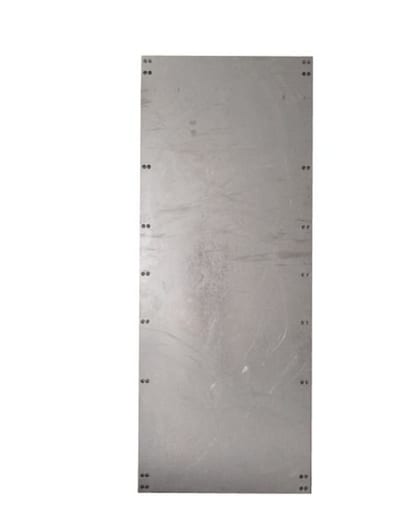

Mounting plate 1600mm (XVTL-IC-10/16)
Eaton

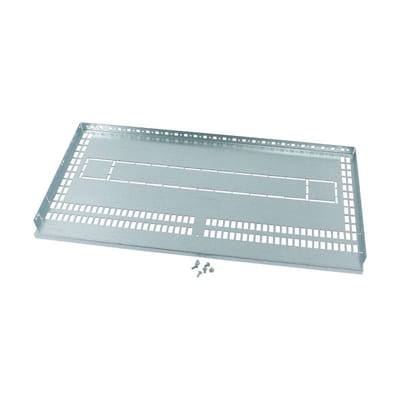

Partition Plate MCCB BBB xE Main B600 D400
XPMMB0604
Eaton

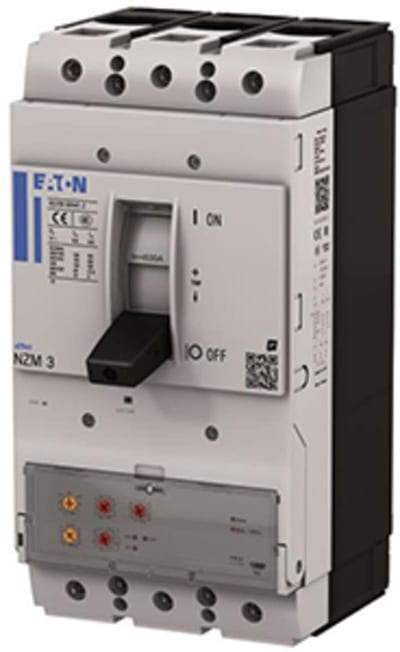

Eaton NZMN3-VX630-BT Molded-Case Circuit Breaker 3-Pole 630A 50KA
Eaton
Front plate sealed H50 B600 xE B
BPZ-VZFP-600/050-BL
Eaton

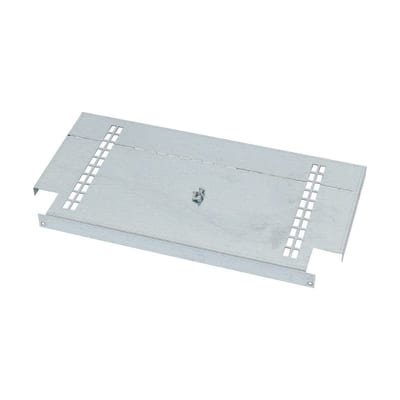

Partition Plate MCCB BBB xE Main B425 D800
