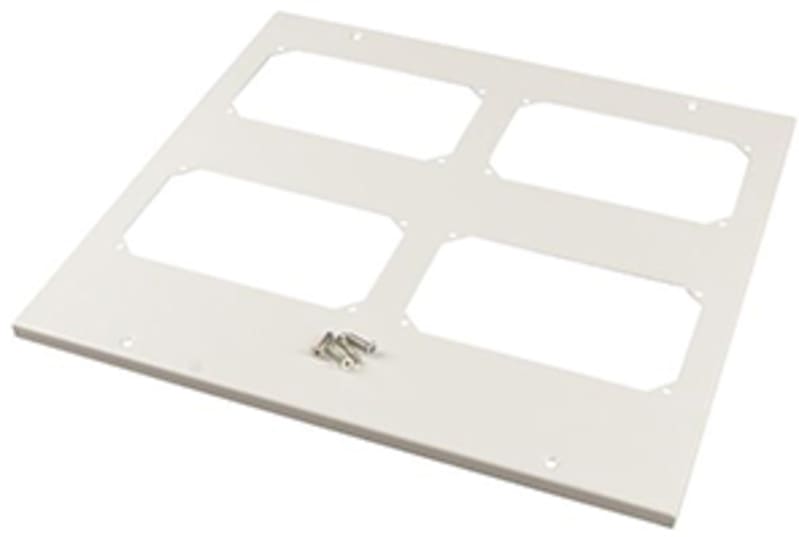

Top/bottom plate F3A xE Light (XLST5F45)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Top/bottom plate F3A xE Light (XLST5F45) is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Eaton catalogue number: 114688; Depth: 350 mm; Height: 30 mm; Width: 400 mm; Weight: 1.8 kg.
Technical Specifications
- Manufacturer part number (MPN)
- XLST5F45
- EAN / GTIN
- 4015081140886
- Sales unit
- pcs
- Eaton catalogue number
- 114688
- Depth
- 350 mm
- Height
- 30 mm
- Width
- 400 mm
- Weight
- 1.8 kg
- Compliances
- RoHS conform
- Used with
- Control centres XVTL; Accessory; Combination enclosure
- Special features
- Including screws\nWith flange cutouts\nRoof panel with cutouts for F3A flange
- Type
- Accessory\nCombination enclosure\nControl centres XVTL
- Accessory/spare part type
- Bottom plate; Roof plates
- Fitted with
- Cable entry
- Surface finishing
- Powder coating; With powder coating RAL 7035, light gray; Polyester powder coating
- Color
- Gray
- Degree of protection
- IP55 (with cable entry flange F3A)
- Unit type
- Modular system
- Number of openings
- 2
- RAL-number
- 7035
- Suitable for enclosure building length/depth
- 500 mm
- Suitable for enclosure building width
- 400 mm
- Suitable for length/depth
- 500 mm
- Suitable for width
- 425 mm
- Material
- Steel
- Housing material
- Sheet steel 1.25 mm
- Suitable for
- Bottom planking; Roof planking
- Colour
- Grey
- With cable entry
- Yes
- Suitable for enclosure building depth
- 500 mm
- With de-aeration
- No
- Suitable for outdoor set-up
- No
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- Yes
- Suitable for outdoor installation
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081140886
- SAP 1200604541
- Code 82993071
Product Documentation
