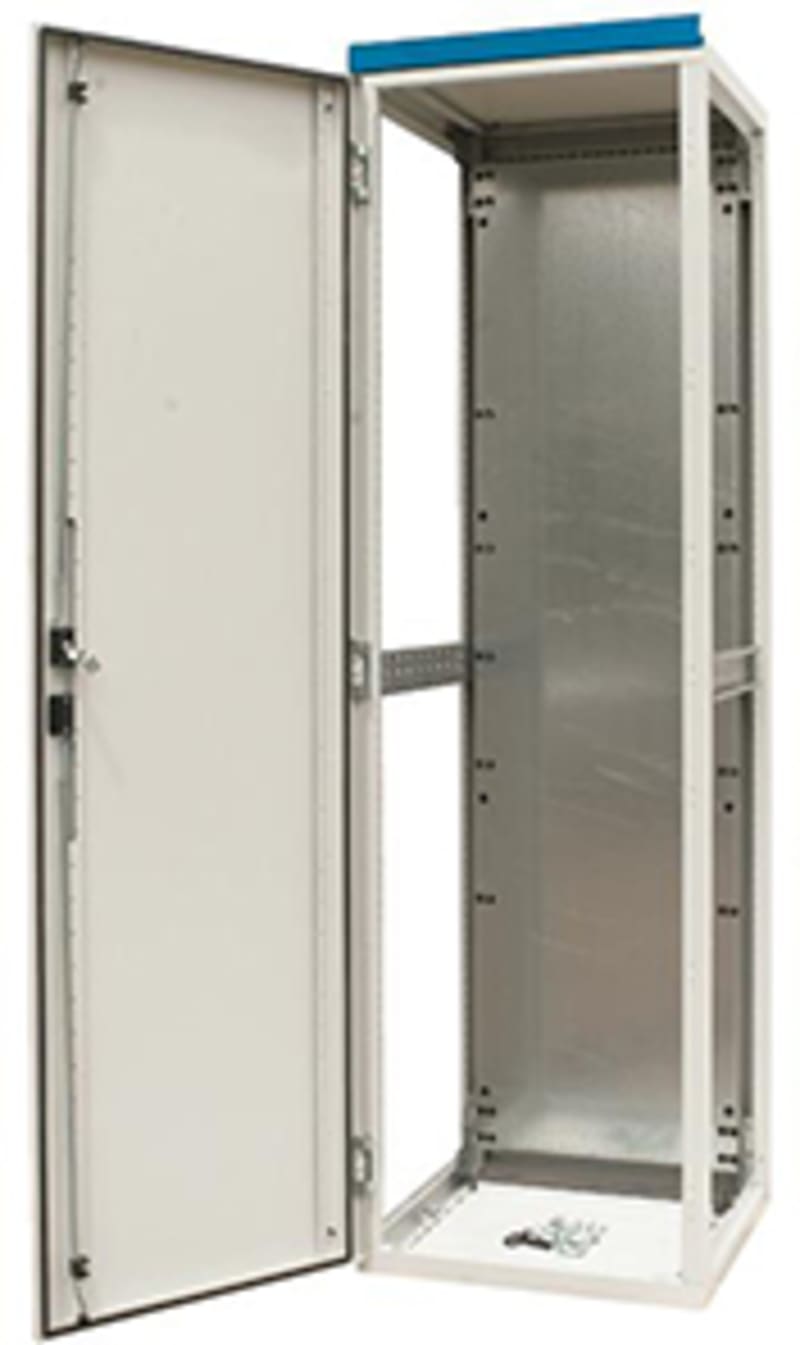

Cabinet H×W×D=2000X600X300MM (XVTL-MP/BX/IC-6/3/20)

Eaton XVTL-MP/BX/IC-6/3/20 XVTL-MP/BX/IC-6/3/20.

Manufacturer part number (MPN)

XVTL-MP/BX/IC-6/3/20

EAN / GTIN

4015081139859

Sales unit

pcs

Eaton catalogue number

114585

Depth

600 mm

Height

2000 mm

Width

308.5 mm

Weight

85 kg

Compliances

RoHS conform

Certifications

IEC/EN 60439-1; IEC/EN 60439-3; IEC/EN 62208

Type

Control centres XVTL

Features

Connectable; EMC-version

Fitted with

M6 weld stud: 50 × 106 A²s (door); Mounting plate; Screw M10: 50 x 106 A²s (base frame, main earthing); Taptite screw M6: 3.9 × 106 A²s (enclosure side plate, back plate)

Frequency rating

50 Hz

Pollution degree

3

Surface finishing

RAL 7035, light gray; Powder coating; Polyester powder coating; Phosphated; Painting, phosphated and polyester powder coating

Degree of protection

IP55 (with door and flange); IK10; IP55; 4X (NEMA)

Rated impulse withstand voltage (Uimp)

6 kV

Cable entry postion

Various covers allow cable entry from above and/or below

Grade material

Sheet steel 2 mm

Unit type

Complete housing

Voltage rating

415 V

Admissible heat dissipation (ambient air temperature +35 °C) - max

400 W

Admissible heat dissipation (NH-SE) - max

400 W

Material quality

Other

Rated short-time withstand current (Icw)

65 kA

Color

Gray

Cover/door type

Door interlock can be fitted with profile cylinder; Outside-supported doors with hidden hinges; Folding handle with espagnolette lock; Three-point interlock; Can be removed from 90°

Permissible load of the mounting plate according to IEC 62208 - max

4000 N

Number of locks

1

RAL-number

7035

Rated insulation voltage (Ui)

690 V

Rated peak withstand current

143 kA

Material

Steel; Sheet steel 2 mm

Mounting method

Wall fastening

Overvoltage category

IV

Frequency rating of contacts

50 Hz (AC)

Functions

Combination enclosure

Installation type

Floor standing wall model

Rated operation current (Ie)

2500 A

Cover/door angle

120° door opening angle (single mounting); 120° door opening angle (combination mounting)

Protection class

I

Installation site

Indoor installation

Relative humidity

50 % (at 40 °C)

Surface treatment

Painting, phosphated and polyester powder coating

Number of covers/doors

1

Suitable for

Metrical mounting

Permissible load of the enclosure according to IEC 62208 - max

5000 N

Permissible load of the door(s) according to IEC 62208 - max

1000 N

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890

284.541 W

Number of connector holes

0

Dimensions

2000×600×300 mm

Colour

Grey

With mounting plate

Yes

Number of doors

1

Suitable for wall mounting

Yes

Pre-stamping

No

EMC-version

Yes

With glazed door

No

Couplable

Yes

Impact strength

IK10

Suitable for outdoor set-up

No

Suitable for metrical mounting

Yes

Mounting plate depth-adjustable

No

Connectable

Yes

With ventilation door

No

Wall fastening possible

Yes

With rear door

No

Suitable for wall built-in

No

With cover

No

With door

No

Pitched roof

No

Pole fastening

No

Transparent cover

No

Suitable for outdoor installation

No

Max. permitted load of the enclosure according to IEC 62208

5000 N

Max. permitted load of the door(s) according to IEC 62208

1000 N

Floor standing wall model

Yes

Freestanding

No

Corner model

No

Intermediate mounting

No

Country of origin

Czechia

HS Code

8538.10
