Eaton
Cabinet H×W×D 2000X1000X800 IP55
Part numberXVTL-MP/BF-10/8/20EAN / GTIN4015081139446HS code8538.10
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Cabinet H×W×D 2000X1000X800 IP55 (part number XVTL-MP/BF-10/8/20) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 114544; Depth: 800 mm; Height: 2000 mm; Width: 1000 mm; Weight: 106 kg.
Technical Specifications
- Manufacturer part number (MPN)
- XVTL-MP/BF-10/8/20
- EAN / GTIN
- 4015081139446
- Sales unit
- pcs
- Eaton catalogue number
- 114544
- Depth
- 800 mm
- Height
- 2000 mm
- Width
- 1000 mm
- Weight
- 106 kg
- Compliances
- RoHS conform
- Features
- Mounting plate depth-adjustable; Connectable; EMC-version
- Fitted with
- Mounting plate
- Pollution degree
- 3
- Surface finishing
- Powder coating
- Degree of protection
- IP55; IK10; 4X (NEMA)
- Material quality
- Other
- Color
- Gray
- Permissible load of the mounting plate according to IEC 62208 - max
- 4000 N
- Number of locks
- 1
- RAL-number
- 7035
- Material
- Steel
- Mounting method
- Wall fastening
- Overvoltage category
- IV
- Installation type
- Floor standing wall model
- Protection class
- I
- Number of covers/doors
- 2
- Suitable for
- Metrical mounting
- Permissible load of the enclosure according to IEC 62208 - max
- 5000 N
- Permissible load of the door(s) according to IEC 62208 - max
- 1000 N
- Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
- 730.251 W
- Number of connector holes
- 0
- Dimensions
- 2000×1000×800
- Colour
- Grey
- With mounting plate
- No
- Number of doors
- 2
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- Yes
- With glazed door
- No
- Couplable
- Yes
- Impact strength
- IK10
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 5000 N
- Max. permitted load of the door(s) according to IEC 62208
- 1000 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081139446
- SAP 1000689728
- Code 8398888
Product Documentation
Document preview: Cabinet HxBxD 2000x1000x800 IP55 (XVTL-MP/BF-10/8/20) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Front plate NZM2 H H200 B800 xE Basic (BPZ-FP/S-NZM2-800-MH)
Eaton
Plinth H100 B800 D800
XAP010808
Eaton
Eaton IZMX16N4-V06F-1
Eaton
Mounting Set for NZM2, Vertical, H × W 400 × 400 mm
BPZ-NZM2/MSW-400-MV
Eaton

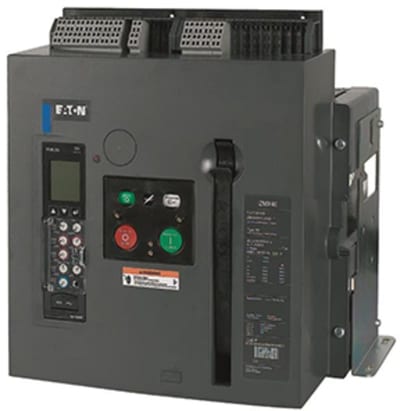

Eaton IZMX40N3-V12F-1
Eaton

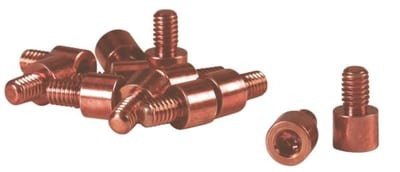

Eaton IZMX-CRB-1
Eaton

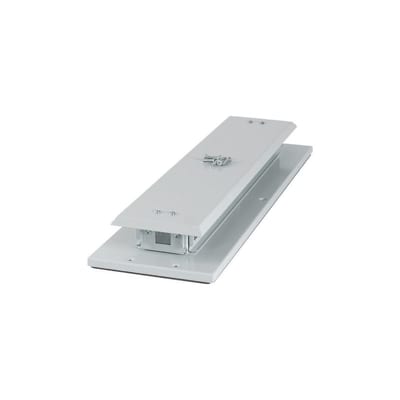

Top plate IP42 xE Light (XLST4854)
Eaton

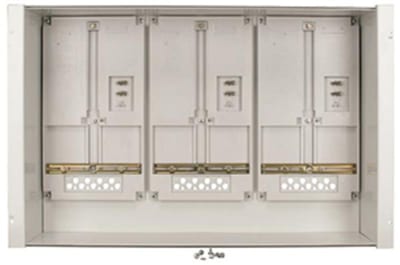

Meter Bottom HxB=425X600MM
