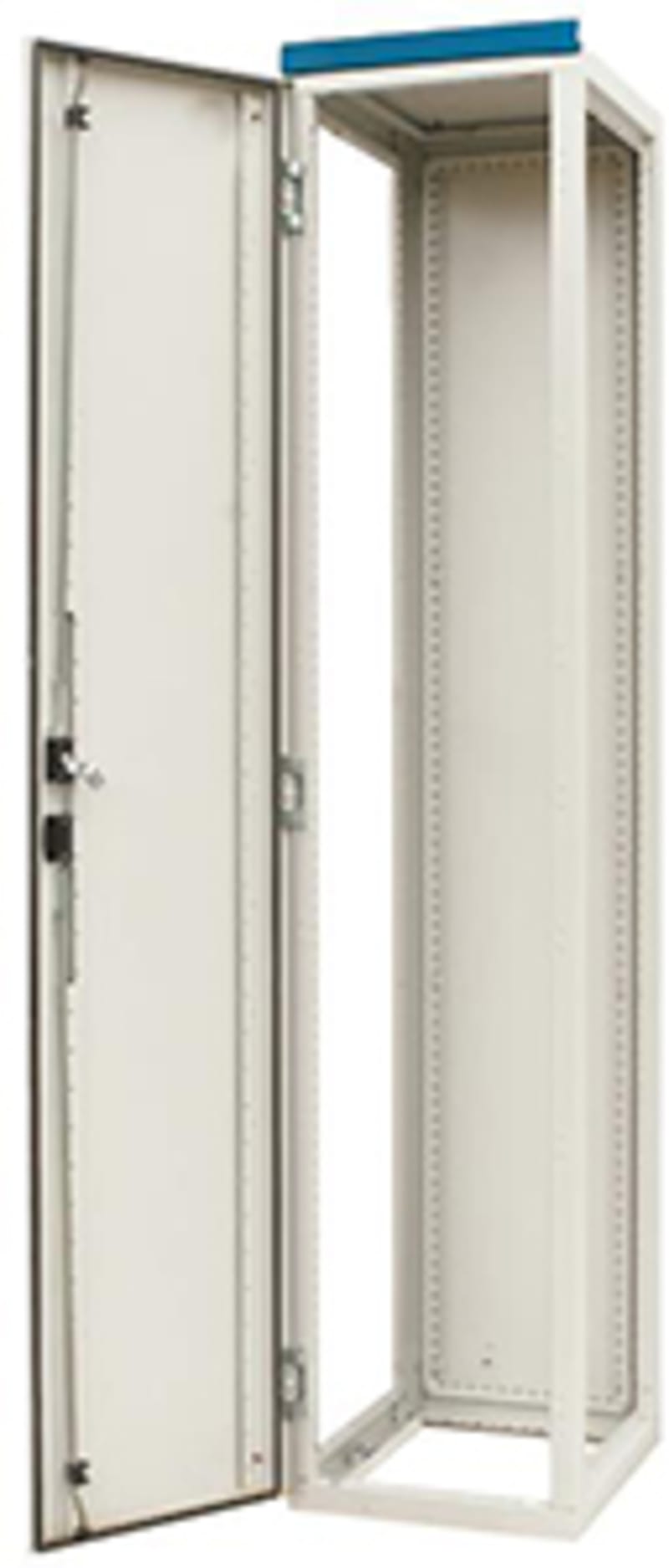

Cabinet H×W×D 1600X1000X300 IP55
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Cabinet H×W×D 1600X1000X300 IP55 (part number XVTL-MP/BF-10/3/16) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 114503; Depth: 300 mm; Height: 1600 mm; Width: 1000 mm; Weight: 84 kg.
Technical Specifications
- Manufacturer part number (MPN)
- XVTL-MP/BF-10/3/16
- EAN / GTIN
- 4015081139033
- Sales unit
- pcs
- Eaton catalogue number
- 114503
- Depth
- 300 mm
- Height
- 1600 mm
- Width
- 1000 mm
- Weight
- 84 kg
- Compliances
- RoHS conform
- Features
- Mounting plate depth-adjustable; Connectable; EMC-version
- Fitted with
- Mounting plate
- Pollution degree
- 3
- Surface finishing
- Powder coating
- Degree of protection
- IK10; IP55; 4X (NEMA)
- Material quality
- Other
- Color
- Gray
- Permissible load of the mounting plate according to IEC 62208 - max
- 4000 N
- Number of locks
- 1
- RAL-number
- 7035
- Material
- Steel
- Mounting method
- Wall fastening
- Overvoltage category
- IV
- Installation type
- Floor standing wall model
- Protection class
- I
- Number of covers/doors
- 2
- Suitable for
- Metrical mounting
- Permissible load of the enclosure according to IEC 62208 - max
- 5000 N
- Permissible load of the door(s) according to IEC 62208 - max
- 1000 N
- Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
- 407.882 W
- Number of connector holes
- 0
- Dimensions
- 1600×1000×300
- Colour
- Grey
- With mounting plate
- No
- Number of doors
- 2
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- Yes
- With glazed door
- No
- Couplable
- Yes
- Impact strength
- IK10
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 5000 N
- Max. permitted load of the door(s) according to IEC 62208
- 1000 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081139033
- SAP 1200283788
- Code 82254120
Product Documentation
