Wall-mount cabinet IP55 xE DB-lock H460 B800 D270
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Wall-mount cabinet IP55 xE DB-lock H460 B800 D270 (part number 111027) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 111027; Depth: 270 mm; Height: 460 mm; Width: 800 mm; Weight: 23 kg.
Technical Specifications
- Manufacturer part number (MPN)
- 111027
- EAN / GTIN
- 4015081105885
- Sales unit
- pcs
- Eaton catalogue number
- 111027
- Depth
- 270 mm
- Height
- 460 mm
- Width
- 800 mm
- Weight
- 23 kg
- Compliances
- RoHS conform
- Features
- EMC-version
- Functions
- Basic device; Extension possible; Sealable
- RAL-number
- 7035
- Application
- Moisture-proof (installation site)
- Color
- Gray; Light gray (RAL 7035)
- Type
- Basic device
- Built-in height
- 490 mm
- Built-in width
- 830 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Double-ward lock; Door; Single
- Enclosure material
- Steel
- Internal depth
- 265 mm
- Material
- Sheet steel
- Mounting method
- Surface mounted (plaster); Surface mounting
- Number of rows
- 2
- Surface finishing
- With powder coating
- Width in number of modular spacings
- 35
- Built-in depth
- 300 mm
- Degree of protection
- IP55
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 265 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081105885
- SAP 1200282540
- Code 82254038
Product Documentation
More from Eaton
Eaton
Auxiliary contactor, DILER-31(110V50HZ) (DILER-31(110V50HZ,120V60HZ))
Eaton
Eaton DILMT12 3-Pole Contactor, 5.5 kW at 400 V, 230/240 V AC Coil
DILMT12(230V50HZ/240V60HZ)
Eaton
Base N-Conductor shield clamp
XBSN-B
Eaton
Backplate HxB=2060 x 600 mm
BPZ-RP-600/20
Eaton
Motor protection circuit breaker,PKZM0-0,63-SPI16
Eaton
Eaton NZMB2-M200
Eaton
P3 Main switch, 80 A,3 pole, Form V/SVB (1414065)
Eaton

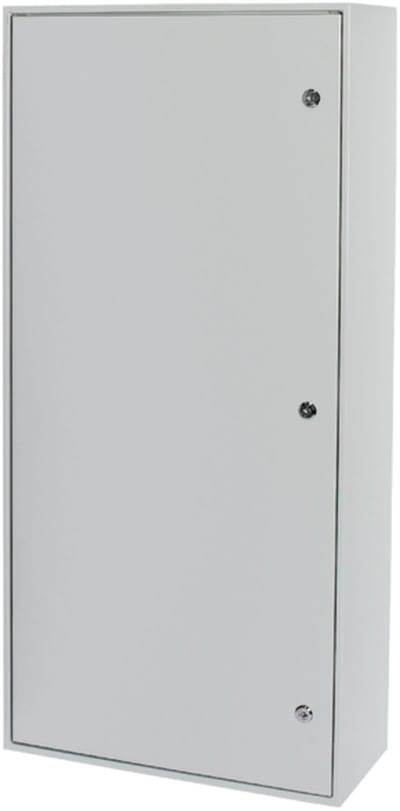

Wall-mount cabinet IP55 xE DB-lock H1560 B1200 D270
