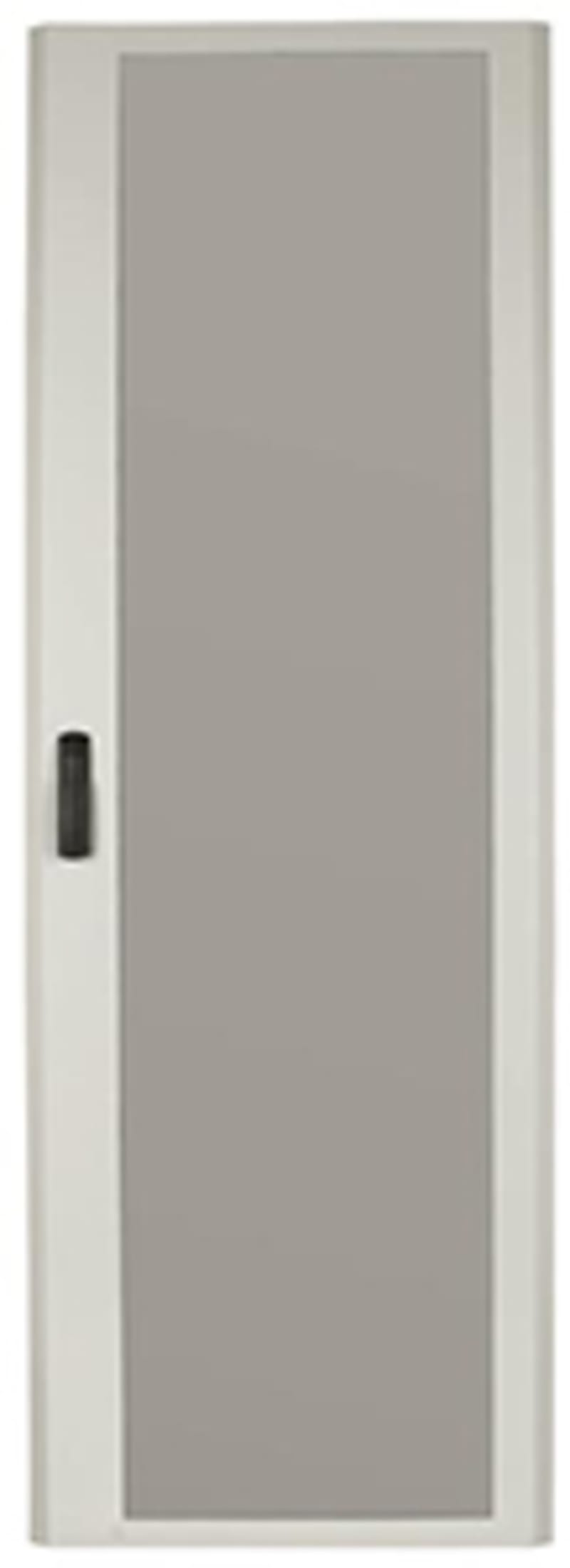

Glassdoor HxB=1760X400 White (BPZ-DT-400/17-P-W)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Glassdoor HxB=1760X400 White (BPZ-DT-400/17-P-W) is listed under Enclosures / Enclosure Doors. Sales unit: pcs; Eaton catalogue number: 102461; Depth: 65 mm; Height: 1720 mm; Width: 392 mm; Weight: 4.7 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BPZ-DT-400/17-P-W
- EAN / GTIN
- 4015081023493
- Sales unit
- pcs
- Eaton catalogue number
- 102461
- Depth
- 65 mm
- Height
- 1720 mm
- Width
- 392 mm
- Weight
- 4.7 kg
- Compliances
- RoHS conform
- Features
- EMC-version; Version as glazed door
- Functions
- Floor-standing enclosure; Additional equipment
- Special features
- Transparent doors Single wing door Mounting from front, fast mounting, hinges on left or right possible Door opening angle 167° 3-point turn lock with roller lever lock Transparent panels from 4 mm safety glass (EN 12150-1, DIN 1249)
- Accessory/spare part type
- Doors
- Color
- White; Traffic white (RAL 9016)
- Model
- Stop door
- Type
- Additional equipment for floor-standing service distribution board IVS
- Cover/door color
- Transparent
- Cover/door type
- Rotary lever
- Housing material
- Sheet steel/glass
- Material
- Sheet steel/glass; Steel
- Mounting method
- Floor standing distribution board
- Suitable for height
- 1760 mm
- Suitable for width
- 400 mm
- Surface finishing
- With powder coating; Powder coating
- Unit type
- Modular system
- Degree of protection
- IP30; NEMA Other
- Colour
- White
- EMC-version
- Yes
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081023493
- SAP 1200563016
- Code 82900108
