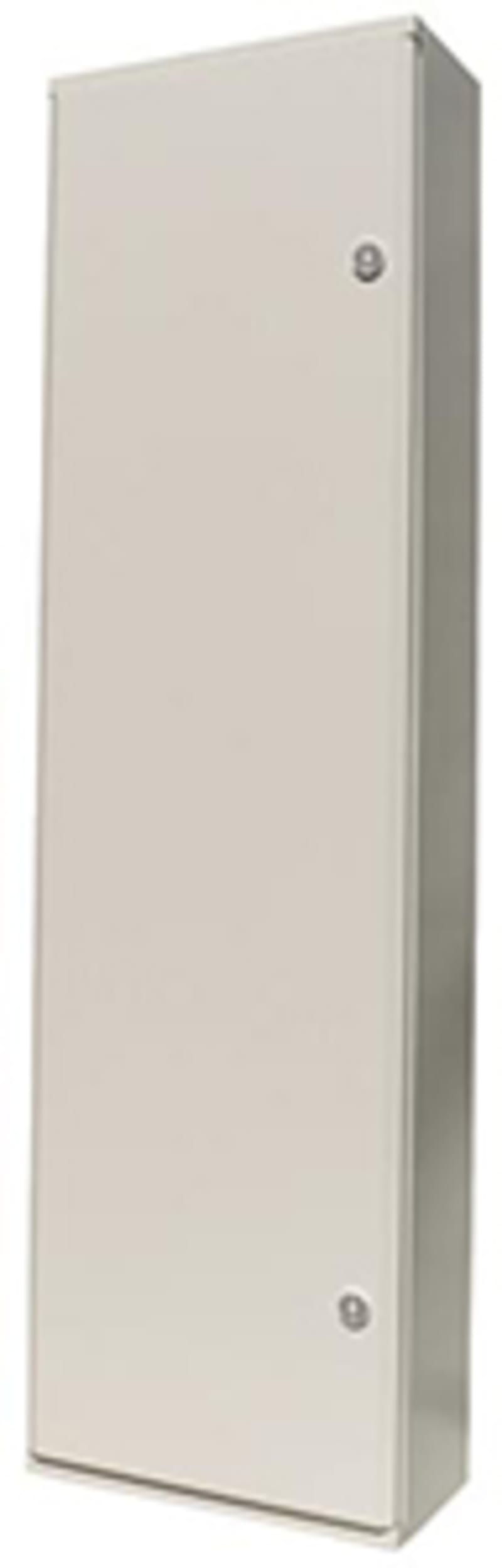

White cabinet B=800 H=1760 D=300 (BP-F-800/17/3-W)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton White cabinet B=800 H=1760 D=300 (BP-F-800/17/3-W) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 102339; Depth: 300 mm; Height: 1760 mm; Width: 800 mm; Weight: 50.5 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BP-F-800/17/3-W
- EAN / GTIN
- 4015081022274
- Sales unit
- pcs
- Eaton catalogue number
- 102339
- Depth
- 300 mm
- Height
- 1760 mm
- Width
- 800 mm
- Weight
- 50.5 kg
- Compliances
- RoHS conform
- Features
- Mounting plate depth-adjustable; EMC-version
- Fitted with
- Door
- Functions
- Basic device
- RAL-number
- 9016
- Suitable for
- Metrical mounting
- Application
- Indoor (installation site)
- Color
- White; Traffic white (RAL 9016)
- Type
- Basic device
- Cover/door type
- Three-point turn-lock
- Grade material
- Sheet steel
- Installation type
- Floor installation possible
- Material
- Sheet steel; Steel
- Mounting method
- Floor standing distribution board; Detached
- Number of connector holes
- 0
- Number of covers/doors
- 1
- Number of locks
- 1
- Surface finishing
- Powder coating; With powder coating
- Degree of protection
- IK08 (impact resistance); IP30; Other; IK08
- Colour
- White
- With mounting plate
- No
- Number of doors
- 1
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- Yes
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK07
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- No
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081022274
- SAP 1200282759
- Code 82254487
