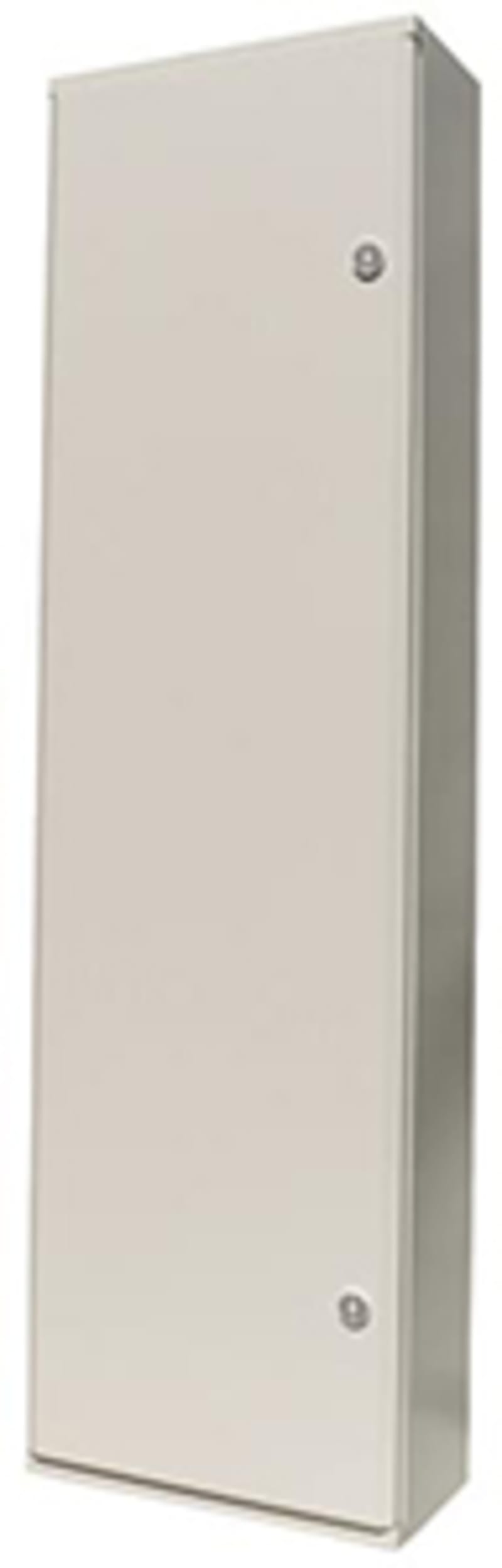

Cabinet B=1 000 H=2 060 D=300 (BP-F-1000/20/3)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Cabinet B=1 000 H=2 060 D=300 (BP-F-1000/20/3) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 102322; Depth: 300 mm; Height: 2060 mm; Width: 1000 mm; Weight: 67.4 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BP-F-1000/20/3
- EAN / GTIN
- 4015081022106
- Sales unit
- pcs
- Eaton catalogue number
- 102322
- Depth
- 300 mm
- Height
- 2060 mm
- Width
- 1000 mm
- Weight
- 67.4 kg
- Compliances
- RoHS conform
- Features
- Mounting plate depth-adjustable; EMC-version
- Fitted with
- Door
- Functions
- Basic device
- RAL-number
- 7035
- Suitable for
- Metrical mounting
- Application
- Indoor (installation site)
- Color
- Light gray (RAL 7035); Gray
- Type
- Basic device
- Cover/door type
- Three-point turn-lock
- Grade material
- Sheet steel
- Installation type
- Floor installation possible
- Material
- Steel; Sheet steel
- Mounting method
- Floor standing distribution board; Detached
- Number of connector holes
- 0
- Number of covers/doors
- 2
- Number of locks
- 1
- Surface finishing
- Powder coating; With powder coating
- Degree of protection
- IK08 (impact resistance); IP30; Other; IK08
- Colour
- Grey
- With mounting plate
- No
- Number of doors
- 1
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- Yes
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK07
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- No
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081022106
- SAP 1200282756
- Code 82254447
Product Documentation
More from Eaton
Eaton
Contactor DILM65-22(RDC24)
Eaton
Cover Plate PIFT xE Main H600 B200
XME0606CS
Eaton
Panel board B800 H760
BP-O-800/7-EW
Eaton
Eaton NZMN2-AX100 Molded-Case Circuit Breaker 3-Pole 100A 50KA
Eaton
Programming software
E59SW1
Eaton
Direction of rotation starter (MSC-R-4-M7(24VDC)/BBA)
Eaton
Eaton FAZ-D30/4 Miniature Circuit Breaker — 4P, Type D, 30 A, 15 kA
Eaton
Contactor DILM580/22(RA110)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy BP-F-1000/20/3?
- BP-F-1000/20/3 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is BP-F-1000/20/3.
- What is the HS code for BP-F-1000/20/3?
- The customs tariff (HS) code for BP-F-1000/20/3 is 8538.90.
- Who manufactures BP-F-1000/20/3?
- BP-F-1000/20/3 is a Eaton product in the Enclosures range.
- Is a datasheet available for BP-F-1000/20/3?
- Yes — the BP-F-1000/20/3 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for BP-F-1000/20/3?
- The minimum order quantity is 1.
- Is BP-F-1000/20/3 available?
- Yes — BP-F-1000/20/3 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
