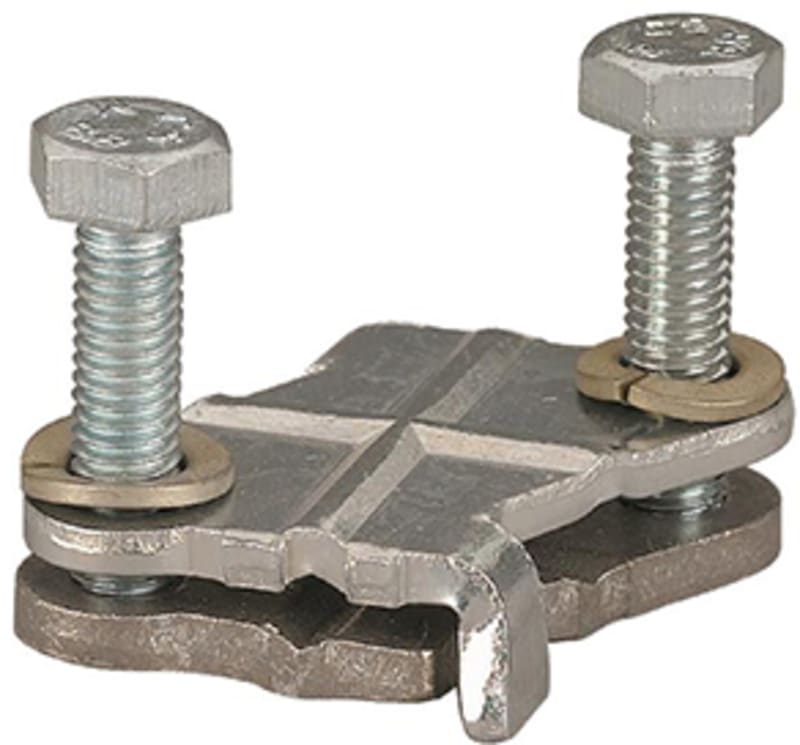

S.sk.terminal for CU 20X5 (K20X10/35)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton S.sk.terminal for CU 20X5 (K20X10/35) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 002325; Depth: 40 mm; Height: 30 mm; Width: 40 mm.
Technical Specifications
- Manufacturer part number (MPN)
- K20X10/35
- EAN / GTIN
- 4015080023258
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 002325
- Depth
- 40 mm
- Height
- 30 mm
- Width
- 40 mm
- Weight
- 0.07 kg
- Compliances
- RoHS conform
- Functions
- Terminal for flat strip
- Suitable for
- Round conductor connection; Flat rail; Strip conductor connection
- Used with
- Cu 20 x 5 mm busbars; Cu 20 x 10 mm busbars; Accessory panel building; Prepared enclosures; Ci insulated enclosure; Accessory for busbar enclosures
- Accessory/spare part type
- Ultra-flat busbar terminals; Busbar terminals
- Type
- Accessory for busbar enclosures Accessory panel building Ci insulated enclosure Prepared enclosures
- Rated operation current (Ie)
- 250 A; 200 A; 400 A; 100 A; 160 A
- Rated operational current
- 400 A
- Rated operational current (Ie) - max
- 400 A
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Busbar width - max
- 20 mm
- Busbar width - min
- 20 mm
- Conductor cross section - max
- 124 mm²
- Terminal capacity (flat strip)
- 16 mm x 0.8 mm (6x); 9 mm x 0.8 mm (3x); 16 mm x 0.8 mm (4x); 9 mm x 0.8 mm (6x); 16 mm x 0.8 mm (10x)
- Terminal capacity (round conductor)
- 1.5 mm² - 10 mm²; 1.5 mm² - 6 mm²
- Width clamp
- 31 mm
- Max. conductor cross section
- 124 mm²
- Busbar thickness
- 5–10 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- Yes
- Suitable for sector conductor connection
- No
- Max. rated operation current Ie
- 400 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015080023258
- SAP 1000788206
- Code 81399458
Product Documentation
More from Eaton
Eaton
Eaton 193989 Rocker 4-Gang Signal White 55x55 mm Glossy
Eaton
Current monitoring relay (EMR6-I1-A-1)
Eaton
Eaton Overload relay, Ir= 200 - 300 A, 1 N/O, 1 N/C, for use with: DILM300A
Z5-300/FF250
Eaton

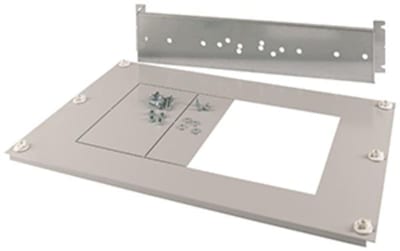

NH switch unit 250A (BPZ-XNH1X-3/1-800-MV-W)
Eaton

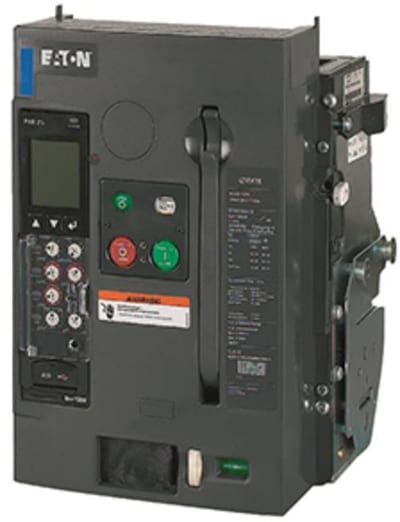

Eaton IZMX16B3-V12W-1
Eaton
K.el.Darw F.m with Red led 2NO/NC
M22-SWD-K22LED-R
Eaton

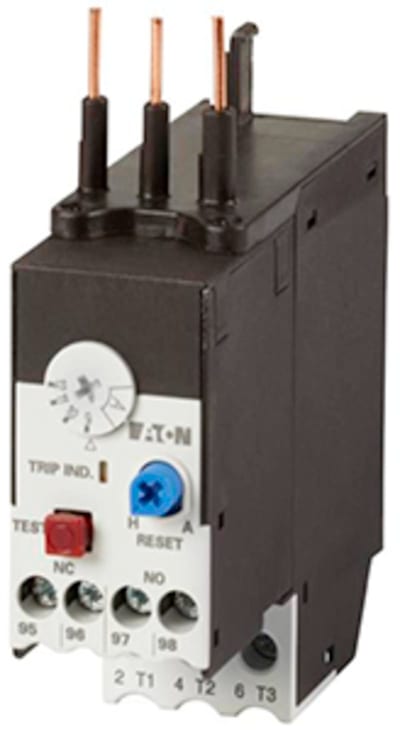

Overload relay ZBT12-1
Eaton

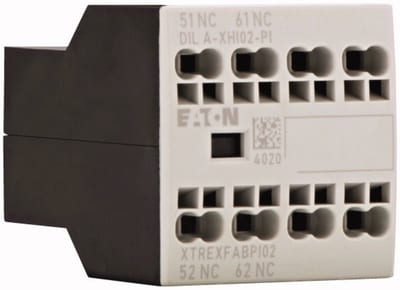

Auxiliary contact,DILA-XHI02-PI
