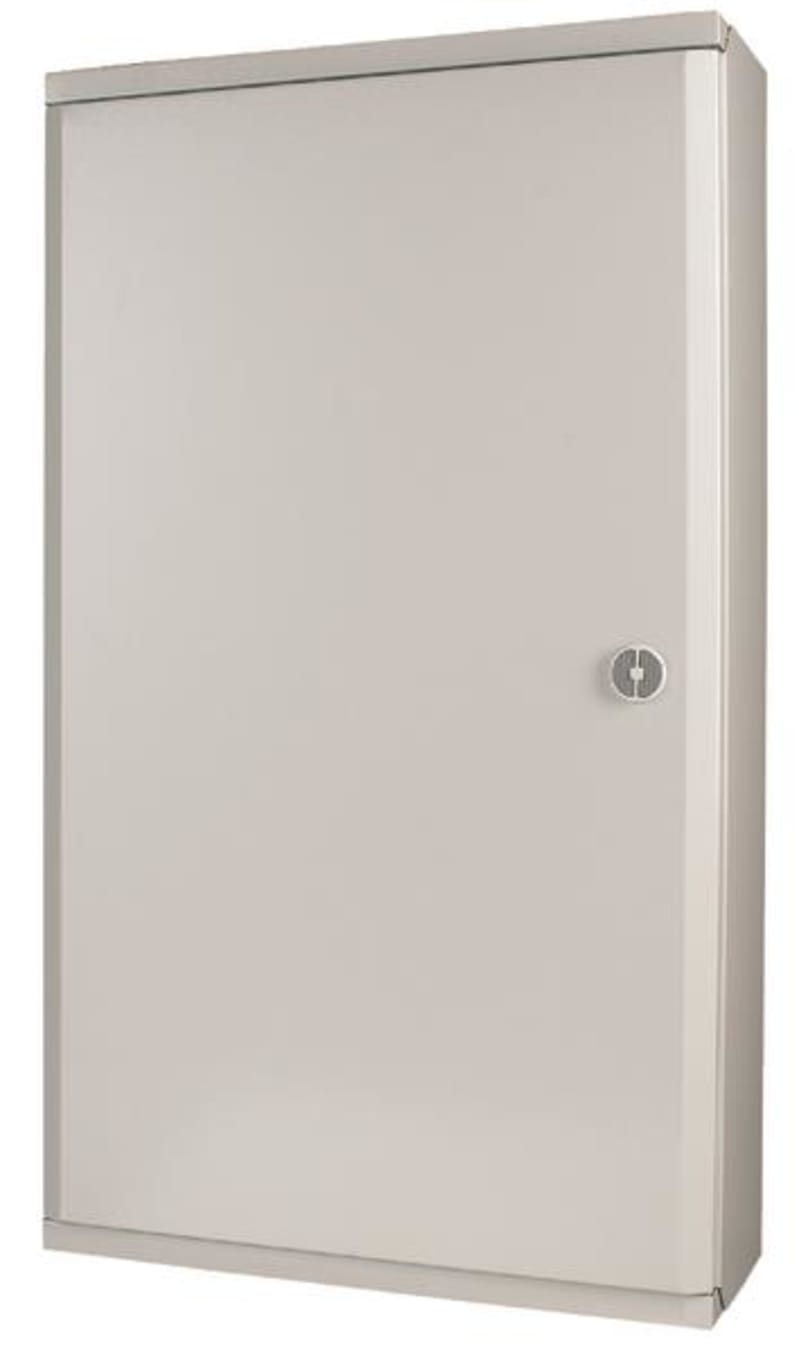

Panel board m/DIN B=600mm H=1060
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Panel board m/DIN B=600mm H=1060 (part number BP-O-600/10-C) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 293308; Depth: 262 mm; Height: 1060 mm; Width: 600 mm; Weight: 32.2 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BP-O-600/10-C
- EAN / GTIN
- 4015082933081
- Sales unit
- pcs
- Eaton catalogue number
- 293308
- Depth
- 262 mm
- Height
- 1060 mm
- Width
- 600 mm
- Weight
- 32.2 kg
- Compliances
- RoHS conform
- Features
- EMC-version
- Functions
- Basic device; Extension possible; Sealable
- RAL-number
- 7035
- Special features
- With DIN-rail Front plate with 45mm cut-out
- Application
- Indoor (installation site)
- Color
- Light gray (RAL 7035); Gray
- Type
- Basic device
- Built-in height
- 280 mm
- Built-in width
- 640 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Three-point turn-lock; Door; Single
- Enclosure material
- Steel
- Internal depth
- 257.5 mm
- Material
- Sheet steel
- Mounting method
- DIN-rail; Surface mounted (plaster); Surface mounting
- Number of rows
- 6
- Surface finishing
- With powder coating
- Width in number of modular spacings
- 24
- Built-in depth
- 1100 mm
- Degree of protection
- IP30
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 257.5 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015082933081
- SAP 1200283426
- Code 82253721
Product Documentation
More from Eaton
Eaton
Phase monitoring relay (EMR6-AW500-D-1)
Eaton
Eaton IZMX16B4-V08W-1
Eaton
Eaton NZMH2-4-PX100/VAR-SVE Molded-Case Circuit Breaker 4-Pole 100A 150KA
Eaton
Switch-disconnector DMM-125/1
Eaton
LED Strobe light, Green, 24V (SL4-FL24-G)
Eaton
Eaton NZMB1-A125-SVE Molded-Case Circuit Breaker 3-Pole 125A 25KA
Eaton
Cabinet H×W×D=1600X1200X400MM (XVTL-MP/BX/IC-12/4/16)
Eaton
Gatew.Darw CanOP max 99 SWD's
EU5C-SWD-CAN
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy BP-O-600/10-C?
- BP-O-600/10-C can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is BP-O-600/10-C.
- What is the HS code for BP-O-600/10-C?
- The customs tariff (HS) code for BP-O-600/10-C is 8538.10.
- Who manufactures BP-O-600/10-C?
- BP-O-600/10-C is a Eaton product in the Enclosures range.
- Is a datasheet available for BP-O-600/10-C?
- Yes — the BP-O-600/10-C datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for BP-O-600/10-C?
- The minimum order quantity is 1.
- Is BP-O-600/10-C available?
- Yes — BP-O-600/10-C is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
