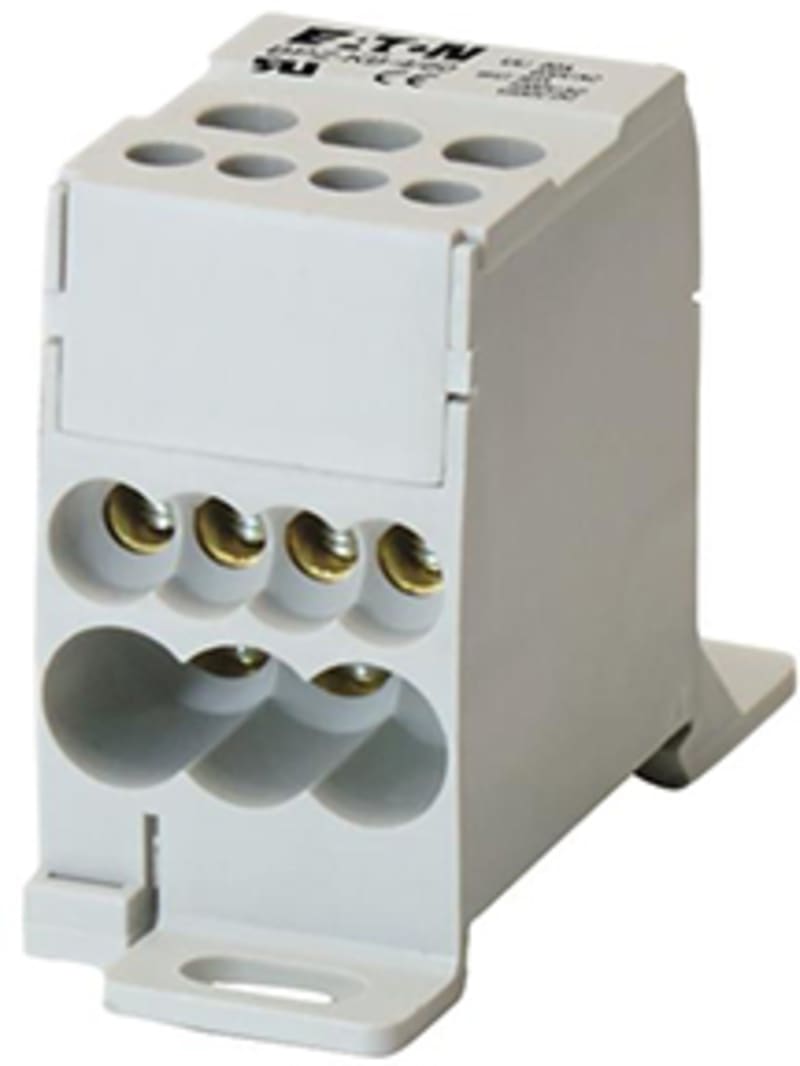

Terminal block single-pole 80 A 6 outputs
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton BPZ-KB-4/80 single-pole terminal block rated 80 A with six outgoing outputs. Dimensions 27 x 65.5 x 46.8 mm, PA66 housing in light grey RAL 7035, DIN-rail or plate mount.
Technical Specifications
- Manufacturer part number (MPN)
- BPZ-KB-4/80
- EAN / GTIN
- 4015082899691
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 289969
- Depth
- 46.8 mm
- Height
- 65.5 mm
- Width
- 27 mm
- Weight
- 0.072 kg
- Compliances
- RoHS conform
- Certifications
- IEC 60 947 -7 -1; UL 1059
- Comparative tracking index (CTI)
- 600 V
- Flame classification (UL 94)
- V-0
- Functions
- Additional equipment
- Special features
- Clicks on DIN-rail or on base plate. Save time on wiring. Save 80% on space used. Modular construction, 1-4 pole Systems can be built with several blocks. Material, hexagon socket set screw: Steel Zinc plated (Hexagon socket set screw, Surface finish)
- Used with
- Single-pole terminal blocks
- Amperage rating
- 80 A
- Number of poles
- Single-pole
- Heat deflection temperature
- 100 °C
- Rated operation current (Ie) Cu (CSA)
- 80 A
- Rated operation current (Ie) Cu (IEC)
- 80 A
- Rated operation current (Ie) Cu (UL)
- 80 A
- Rated peak withstand current
- 2.7 kA
- Rated short-time withstand current (Icw)
- 1.9 kA
- Voltage rating at AC Cu (CSA) - max
- 600 VAC
- Voltage rating at AC Cu (IEC) - max
- 1000 VAC
- Voltage rating at AC Cu (UL) - max
- 600 VAC
- Voltage rating at DC Cu (IEC) - max
- 1500 VDC
- Clamp material
- Brass; Plain
- Conductor cross section (solid, solid-strand) - max
- 16 mm²
- Conductor cross section (solid, solid-strand) - min
- 2.5 mm²
- Housing color
- Light gray (RAL 7035)
- Housing material
- PA66
- Mounting method
- Floor standing distribution board; Surface mounting; Flush mounting
- Mounting position
- Universal
- Number of clamp positions per pole
- 7
- Number of clamping units per pole
- 7
- Degree of protection
- IP20
- Torque rating
- 1.5 Nm - 3 Nm / 13.2 lbf - 26.5 lbf (incoming). 0.8 Nm - 3 Nm / 7 lbf - 26.5 lbf (outgoing)
- Conductor cross section solid (solid, stranded)
- 2.5–16 mm²
- Max. rated current
- 80 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082899691
- SAP 1200562683
- Code 82906102
Product Documentation
