Terminal 35mm FOR KL
Pricing
Request a quote
We reply within 24 hours
Overview

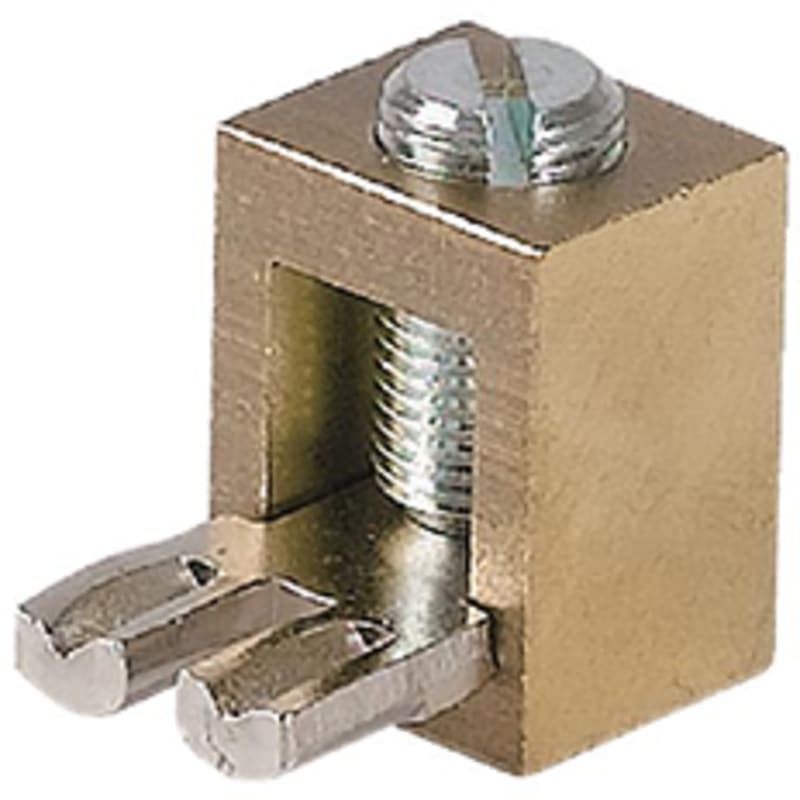

Eaton Terminal 35mm FOR KL (part number 275453) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 275453; Depth: 25 mm; Height: 20 mm; Width: 15 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 275453
- EAN / GTIN
- 4015082754532
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 275453
- Depth
- 25 mm
- Height
- 20 mm
- Width
- 15 mm
- Weight
- 0.02 kg
- Compliances
- RoHS conform
- Functions
- Additional equipment
- Suitable for
- Fine strand conductors; Solid conductors; Stranded conductors
- Used with
- Expansion terminal; Accessory consideration; BF flat distribution board
- Accessory/spare part type
- General
- Nominal current
- 63 A
- Number of poles
- Single-pole
- Type
- Additional equipment BF flat distribution board
- Conductor cross section, input - max
- 35 mm²
- Conductor cross section, input - min
- 16 mm²
- Conductor cross section, output - max
- 10 mm²
- Conductor cross section, output - min
- 10 mm²
- Housing material
- Brass
- Mounting method
- Floor standing distribution board; Flush mounting; Screw; Surface mounting
- Number of connections (Less Than 6 mm squared)
- 0
- Number of connections (Less Than AWG 6)
- 0
- Number of connections (Greater Than 25 mm squared)
- 1
- Number of connections (Greater Than 250 kcmil)
- 0
- Number of connections (10 mm squared)
- 0
- Number of connections (16 mm squared)
- 0
- Number of connections (25 mm squared)
- 0
- Number of connections (250 kcmil)
- 0
- Number of connections (AWG 2)
- 0
- Number of connections (AWG 4)
- 0
- Number of connections (AWG 4/0)
- 0
- Number of connections (AWG 6)
- 0
- Number of connections (total)
- 1
- Number of inputs
- 1
- Number of outputs
- 1
- Terminal capacity
- 35 mm²
- Connection type
- Clamp; Screwing
- Contact safe
- No
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for fine strand conductors without cable end sleeve
- No
- Suitable for extra fine-strand conductors
- No
- Conductor cross section, input
- 16–35 mm²
- Conductor cross section, output
- 10 mm²
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082754532
- SAP 1200150240
- Code 82043419
