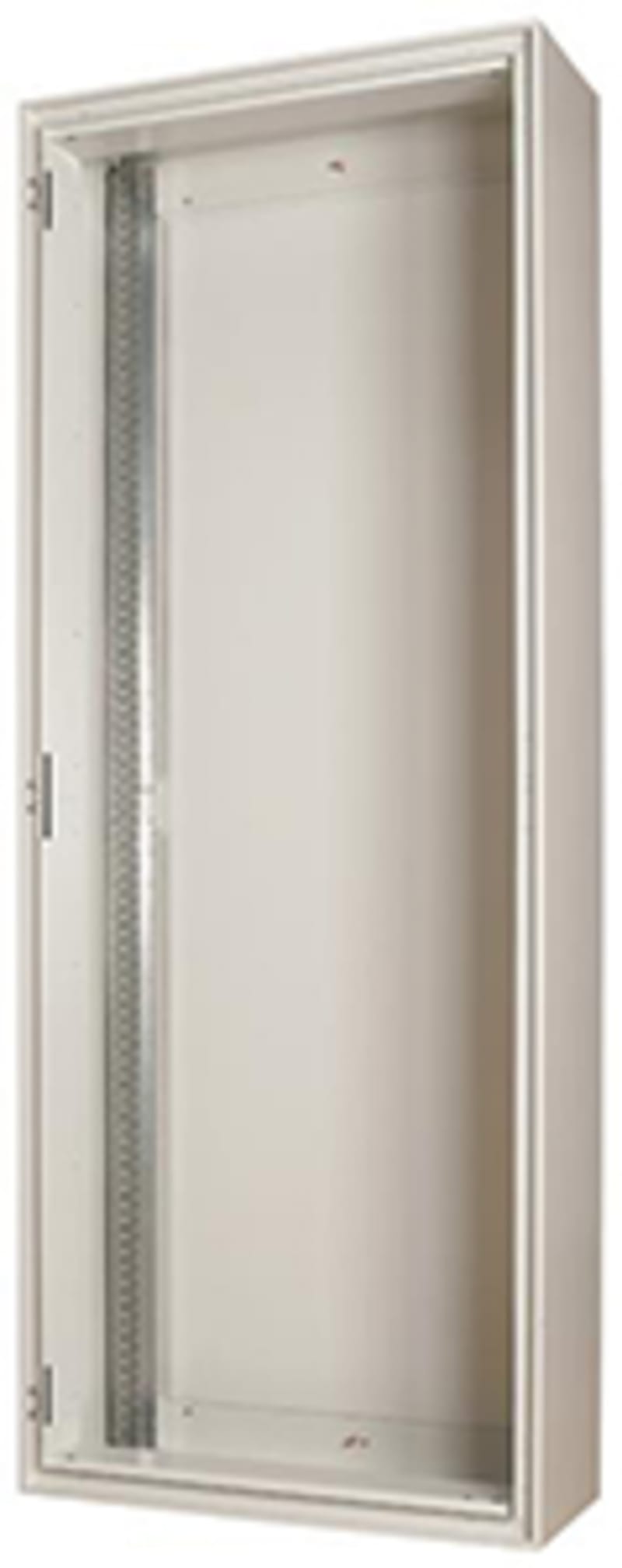

Floor-standing cabinet IP55 xE without door H1760 B1000 D320
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Floor-standing cabinet IP55 xE without door H1760 B1000 D320 (part number BPM-F-1000/17-F) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 174370; Depth: 320 mm; Height: 1760 mm; Width: 1000 mm; Weight: 54.1 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BPM-F-1000/17-F
- EAN / GTIN
- 4015081708321
- Sales unit
- pcs
- Eaton catalogue number
- 174370
- Depth
- 320 mm
- Height
- 1760 mm
- Width
- 1000 mm
- Weight
- 54.1 kg
- Compliances
- RoHS conform
- Functions
- Basic device
- RAL-number
- 7035
- Suitable for
- Metrical mounting
- Application
- Moisture-proof (installation site)
- Color
- Gray; Light gray (RAL 7035)
- Type
- Basic device
- Grade material
- Sheet steel
- Installation type
- Floor installation possible
- Material
- Sheet steel; Steel
- Mounting method
- Floor standing distribution board; Detached
- Number of connector holes
- 0
- Number of covers/doors
- 0
- Number of locks
- 0
- Surface finishing
- Powder coating; With powder coating
- Degree of protection
- IP55; IK10; Other
- Colour
- Grey
- With mounting plate
- No
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK07
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- No
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081708321
- SAP 1200283288
- Code 82252500
