Eaton

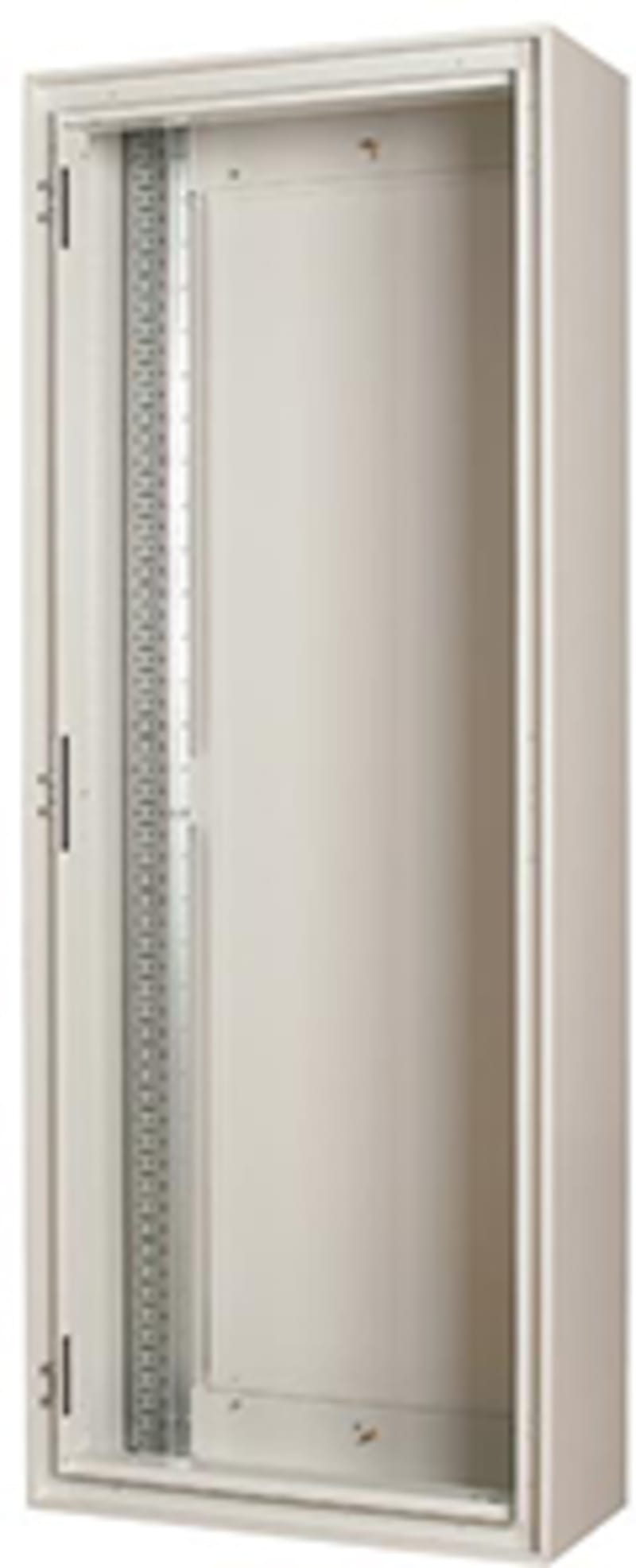

Wall-mount cabinet IP55 xE without door H1560 B1000 D270
Part number174369EAN / GTIN4015081708314HS code8538.10
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 174369 BPM-O-1000/15-F.
Technical Specifications
- Manufacturer part number (MPN)
- 174369
- EAN / GTIN
- 4015081708314
- Sales unit
- pcs
- Eaton catalogue number
- 174369
- Depth
- 270 mm
- Height
- 1560 mm
- Width
- 1000 mm
- Weight
- 48.9 kg
- Compliances
- RoHS conform
- Features
- EMC-version
- Functions
- Basic device; Extension possible; Sealable
- RAL-number
- 7035
- Special features
- Without door
- Application
- Moisture-proof (installation site)
- Color
- Gray; Light gray (RAL 7035)
- Type
- Basic device
- Built-in height
- 1560 mm
- Built-in width
- 1000 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Door; Double
- Enclosure material
- Steel
- Internal depth
- 265 mm
- Material
- Sheet steel
- Mounting method
- Surface mounted (plaster); Surface mounting
- Number of rows
- 9
- Surface finishing
- With powder coating
- Width in number of modular spacings
- 46
- Built-in depth
- 270 mm
- Degree of protection
- IP55
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 265 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Double
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081708314
- SAP 1200283290
- Code 82252546
Product Documentation
Document preview: Wall-mount cabinet IP55 xE u/door H1560 B1000 D270 (174369) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Cover H×W×D=375X375X100MM (D200-CI44)
Eaton
Ekst.Plug Darw for SWD slaver
SWD4-8SF2-5
Eaton
DC1 Variable-frequency drive 0,75kW (DC1-S1011NB-A20N)
Eaton
White cabinet B=800 H=1760 D=300 (BP-F-800/17/3-P-W)
Eaton
Front plate PSL xE Light (XLMFAVF6)
Eaton
Front plate IZMX40-W xE M H600 B1000
XMPIX40W-C-H600W1000
Eaton
Eaton NZMH3-4-VE400 Molded-Case Circuit Breaker 4-Pole 400A 150KA
Eaton

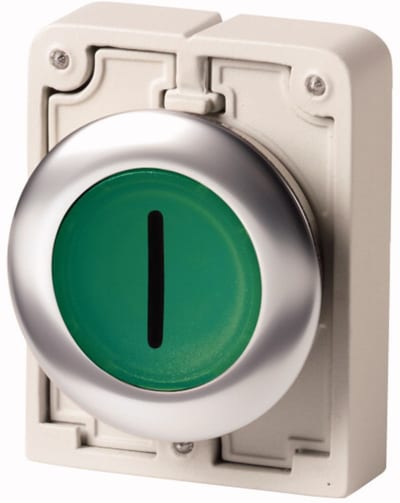

Illuminated Push Button Flat Front (M30C-FDRL-G-X1)
