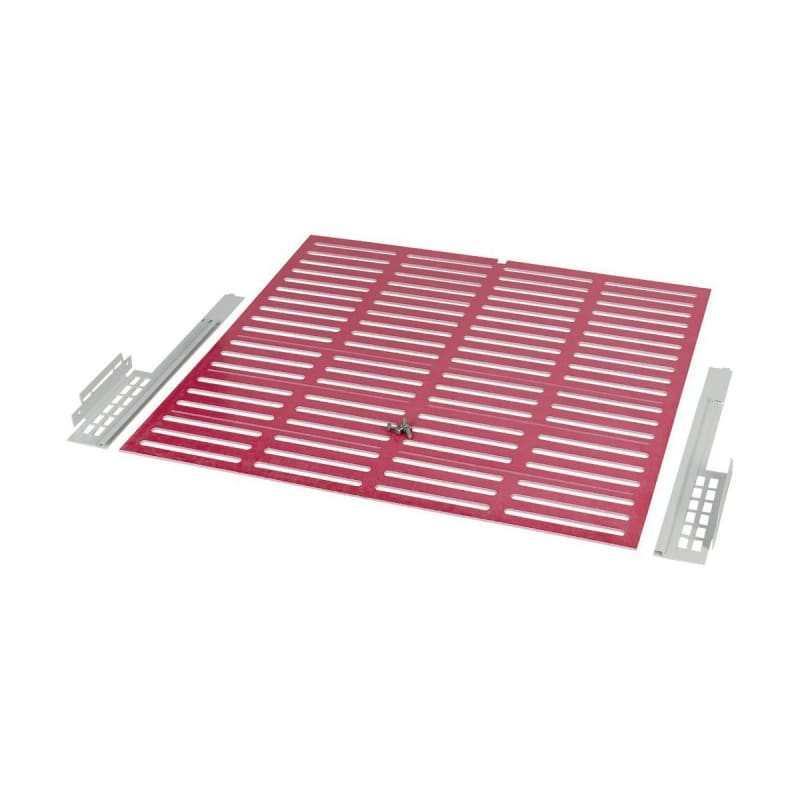

Eaton Horizontal Segregation for 2x IZMX16, W=800 mm
Part numberXPIXBCB-H-0802EAN / GTIN4015081710188HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton XPIXBCB-H-0802 horizontal segregation kit for two IZMX16 breakers, 800 mm wide. Plastic assembly kit, 660 x 40 x 620 mm in red, to support internal separation forms 4a and 4b.
Technical Specifications
- Manufacturer part number (MPN)
- XPIXBCB-H-0802
- EAN / GTIN
- 4015081710188
- Sales unit
- pcs
- Eaton catalogue number
- 174563
- Depth
- 620 mm
- Height
- 40 mm
- Width
- 660 mm
- Weight
- 2.26 kg
- Compliances
- RoHS conform
- RAL-number
- 0
- Suitable for
- Internal separation form 4b; Internal separation form 4a
- Color
- Red
- Construction type
- Assembly kit
- Material
- Plastic
- Modular spacing
- 12.5 mm
- Number of height units
- 0
- Suitable for enclosure building length/depth
- 600 mm
- Suitable for enclosure building width
- 800 mm
- Surface finishing
- Untreated
- Suitable for enclosure building depth
- 600 mm
- Colour
- Red
- With cable entry
- No
- With lock
- No
- For internal separation form 2a
- No
- For internal separation form 2b
- No
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- Yes
- For internal separation form 4b
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081710188
- SAP 1200601697
- Code 82989088
Product Documentation
Document preview: Horizontal skille 2x IZMX16 (XPIXBCB-H-0802) — Specification Data Sheet (OEM)
