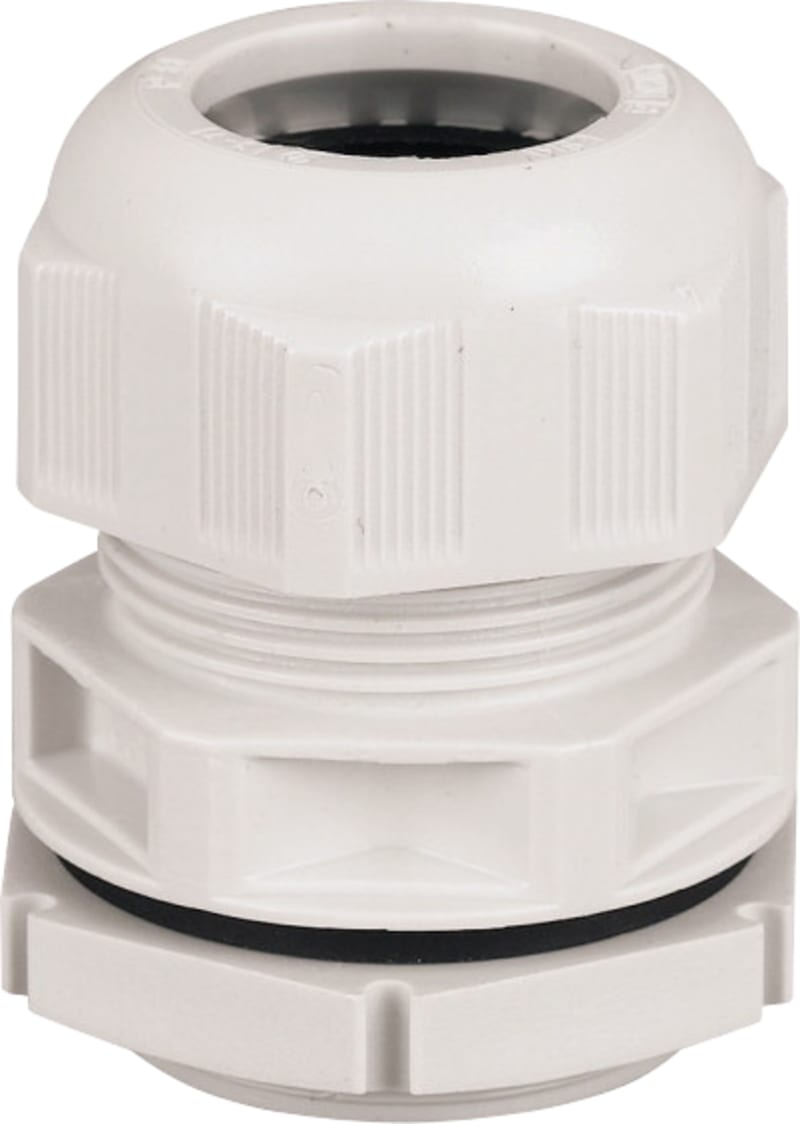

Eaton 209668 Cable Gland Nipple M40 IP68 with Strain Relief
Pricing
Request a quote
We reply within 24 hours
Product Description
Cable entry nipple with M40 metric thread for modular enclosures and switchboards. Manufactured in halogen-free polyamide (PA) with an untreated finish in RAL 7035 light gray, the nipple accommodates cable diameters from 16 to 28 mm and is supplied with a locknut and integrated strain relief. Sealing is provided by a cut-out ring rated to IP68, with V2 flammability per UL 94 and operating temperatures from -20 to 100 degrees C (short-term to 120 degrees C). Typical use is routing NYM 5x16 mm2 or similar power cables into industrial cabinets where a robust, chemical-resistant gland is required.
Technical Specifications
- Manufacturer part number (MPN)
- 209668
- EAN / GTIN
- 4015082096687
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 209668
- Depth
- 70 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 74 g
- Compliances
- RoHS conform
- Used with
- NYM 16 mm² (5x)
- Surface finishing
- RAL 7035, light gray
- Special features
- Flammability classification V2 according to UL94 with lock nut and built-in strain relief with lock nut and built-in strain relief
- Type
- General switchboard accessory
- Chemical resistance
- Resistant against: acetone, petrol, paraffin, diesel, grease, oil, solvent for paints and varnishes
- Material
- Polyamide; Halogen free; Plastic
- Color
- Gray
- Nominal thread size Metric/PG
- 40
- Nominal thread size inch/gas pipe thread
- Other
- Pitch thread
- 1.5 mm
- Thread Length
- 12 mm
- Wrench width
- 52 mm
- Suitable for cable diameter - max
- 28 mm
- Suitable for cable diameter - min
- 16 mm
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Degree of protection (IP)
- IP68
- Model
- Straight
- Type of sealing
- Cut-out ring
- For ex-zone gas
- None
- For ex-zone dust
- None
- Temperature resistance
- -20 °C - 100 °C, short-time up to approx. 120 °C
- Fitted with
- Locknut; Strain Relief
- Flammability characteristics (UL)
- V2 (UL94)
- Lamp type included
- Halogen Free
- Flame retardant
- Glow wire test 750 °C according to EN 60695-2-11
- Thread type
- Metric
- Protection, proofing and resistance
- Shock Resistant
- Accessory/spare part type
- Cable management
- Stress fracture risk
- Low
- Opening diameter
- 40.5 mm
- Operating temperature - max
- 120 °C
- Operating temperature - min
- -20 °C
- Outer cable diameter - max
- 28 mm
- Outer cable diameter - min
- 16 mm
- RAL-number
- 7035
- Cable entry type
- M40
- For wall thickness - min
- 0.5 mm
- For wall thickness - max
- 2.5 mm
- Connection type to housing
- Screwing
- Type of strain relief according to EN 62444
- Type A
- Material sealing
- Ethylene-propylene diene monomer rubber (EPDM)
- For wall thickness
- 0.5–2.5 mm
- Pressure-compensating
- No
- Suitable for cable diameter
- 16–28 mm
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- Yes
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -20–120 °C
- Explosion-tested version
- No
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Colour
- Grey
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4015082096687
- SAP 1000664450
- Code 8503955
Product Documentation
More from Eaton
Eaton

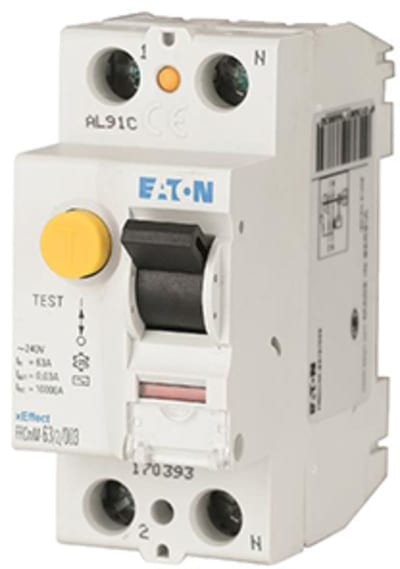

Residual current circuit breaker 16/2/03-G/A
170290
Eaton

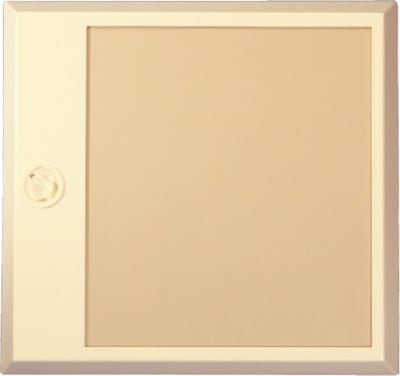

DOOR White In-BOX FOR 64POLER
DHP 64
Eaton

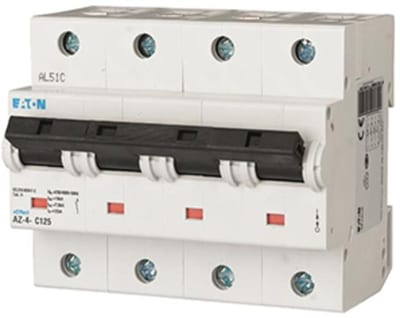

Eaton AZ-4-D80 Miniature Circuit Breaker — 4P, Type D, 80 A, up to 25 kA
Eaton

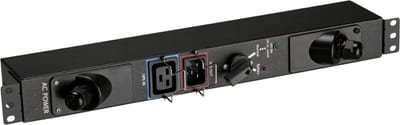

Eaton MBP3KIH Hotswap Maintenance Bypass PDU, Hardwired
Eaton

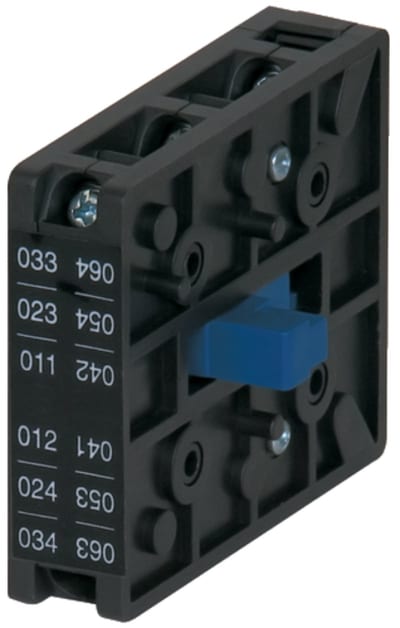

Auxiliary contact (HI21-P5-250/315E)
Eaton

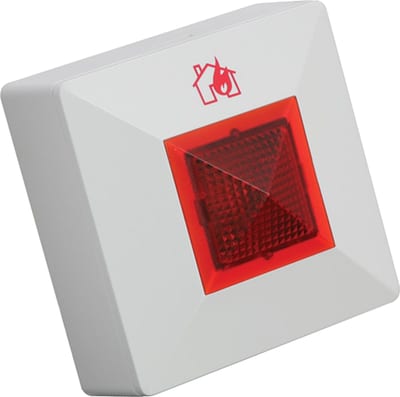

Alarmindikator 5-30VDC (600111FUL-0000)
Eaton

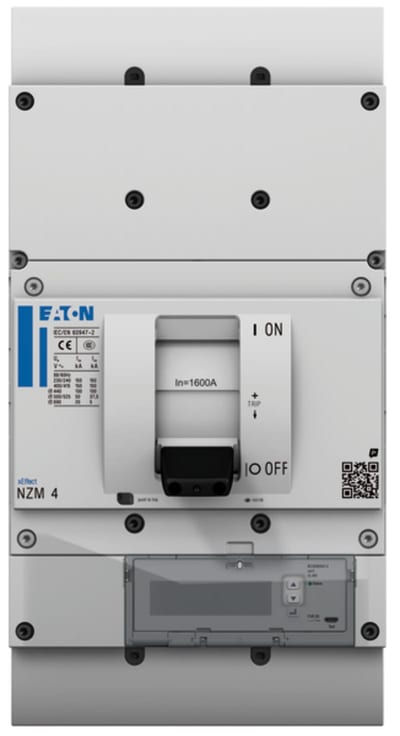

Circuit breaker NZM4 PX N 3P 1250A TAZ
189614
Eaton

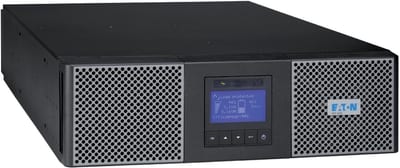

Eaton 9PX 5000I RT3U Netpack
