Eaton

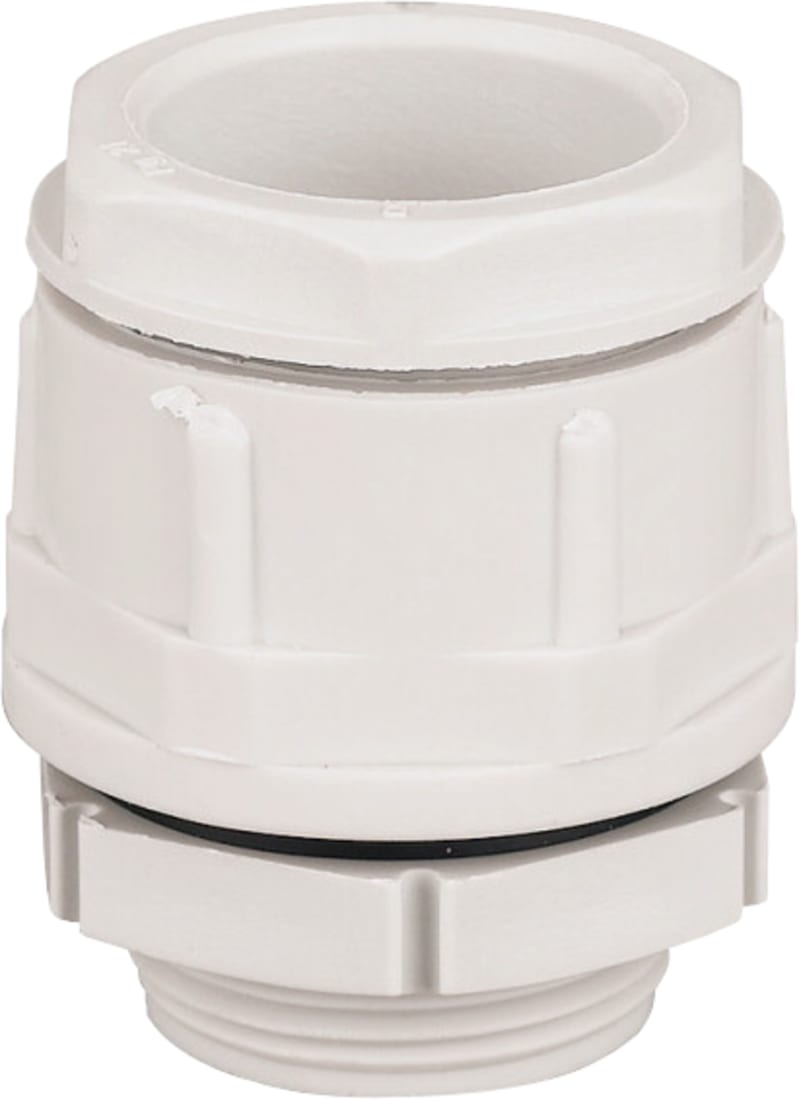

Ventilation Gland IP68 M20
Part numberV-M20-VENTEAN / GTIN4015081186440HS code3926.90
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton V-M20-VENT Accessories for Eaton cabinet and panels: Grommet ventilation IP69K.
Technical Specifications
- Manufacturer part number (MPN)
- V-M20-VENT
- EAN / GTIN
- 4015081186440
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 120814
- Depth
- 27 mm
- Height
- 49 mm
- Width
- 27 mm
- Weight
- 0.013 kg
- Compliances
- RoHS conform
- Fitted with
- Strain Relief; Locknut; Separable Screw Gland
- For ex-zone dust
- None
- For ex-zone gas
- None
- Lamp type included
- Halogen Free
- Protection, proofing and resistance
- Shock Resistant
- RAL-number
- 7035
- Special features
- Ventilation cable gland
- Suitable for
- Prevention of condensation
- Used with
- CS-...; EW…; Ci…; NYM 1.5 mm² (5x) or 2.5 mm² (5x); XVTL; xEnergy; H035VV-F 2.5 mm² (4x) or 4 mm² (3x); Accessory panel building; General switchboard accessory
- Accessory/spare part type
- Ventilation cable gland; Cable management
- Color
- Gray
- Model
- Straight
- Type
- Accessory panel building General switchboard accessory
- Cable entry type
- M20
- For wall thickness - max
- 2.5 mm
- For wall thickness - min
- 0.5 mm
- Material
- Polyamide; Halogen free; Plastic
- Material quality
- Polyamide (PA)
- Nominal thread size inch/gas pipe thread
- Other
- Nominal thread size Metric/PG
- 20
- Opening diameter
- 20.5 mm
- Outer cable diameter - max
- 13 mm
- Outer cable diameter - min
- 6 mm
- Pitch thread
- 15 mm
- Suitable for cable diameter - max
- 13 mm
- Suitable for cable diameter - min
- 6 mm
- Surface finishing
- RAL 7035, light gray
- Surface protection
- Untreated
- Thread Length
- 10 mm
- Thread type
- Metric
- Type of sealing
- Cut-out ring
- Wrench width
- 30 mm
- Degree of protection (IP)
- IP68
- Operating temperature - max
- 120 °C
- Operating temperature - min
- -20 °C
- Connection type to housing
- Screwing
- For wall thickness
- 0.5–2.5 mm
- Pressure-compensating
- No
- Suitable for cable diameter
- 6–13 mm
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- Yes
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- Yes
- Operating temperature
- -20–120 °C
- Explosion-tested version
- No
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Type of strain relief according to EN 62444
- Type A
- Material sealing
- Ethylene-propylene diene monomer rubber (EPDM)
- Colour
- Grey
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4015081186440
- SAP 1000650390
- Code 8453387
Product Documentation
Document preview: VENTILATION GLAND IP68 M20 (V-M20-VENT) — Specification Data Sheet (OEM)
More from Eaton
Eaton

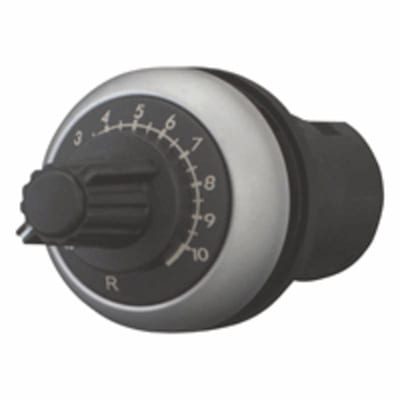

POT.METER for Dilet (M22-R10K)
Eaton
IN-P65 LED double-sided ML self-test
i-P65 LED 3Hr DBL SIDE EXIT INTELLEM
Eaton

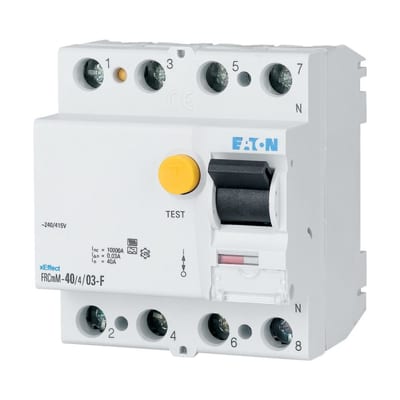

Residual current circuit breaker 16A 4P 100MA F
187413
Eaton

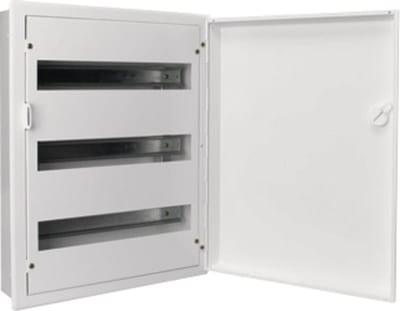

IBOX Base 32 Poles 110mm
