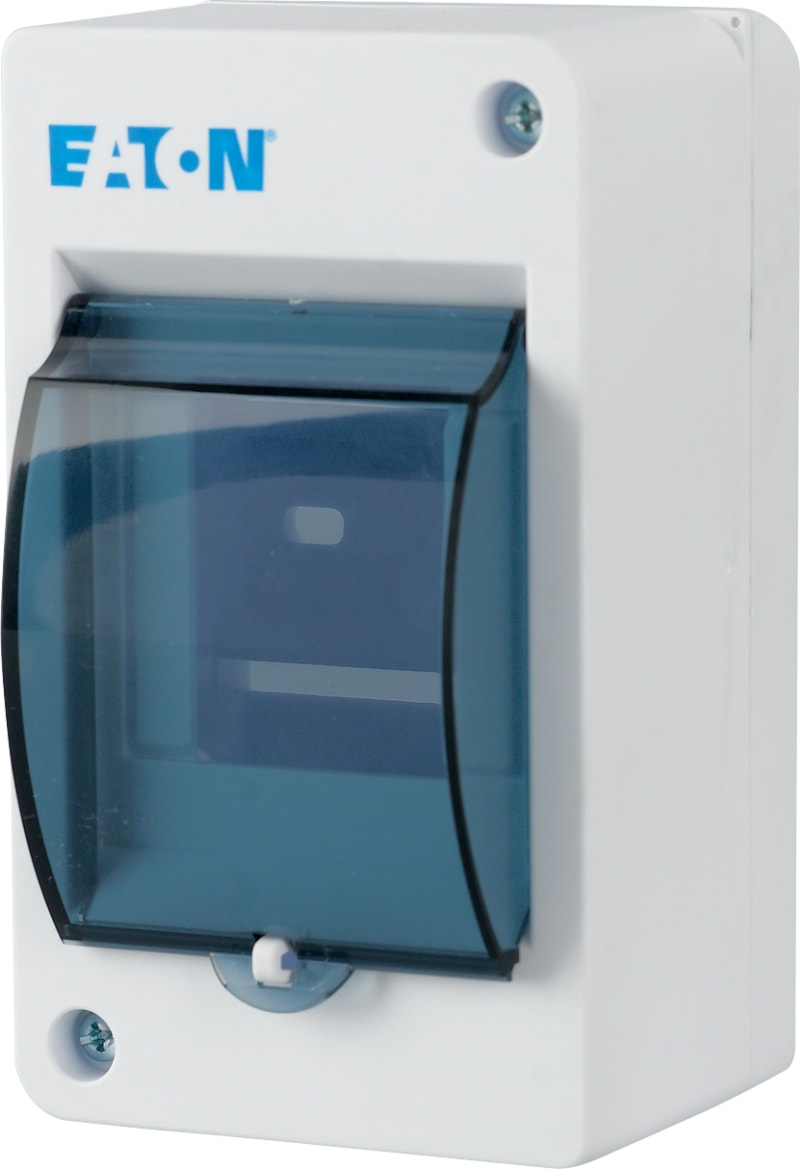

MINI Enclosure IP30 1-Row 3-Mod
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton MINI Enclosure IP30 1-Row 3-Mod (part number MINI-3-T) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Package quantity: 12 pcs; Eaton catalogue number: 177072; Depth: 83 mm; Height: 140 mm; Width: 82 mm.
Technical Specifications
- Manufacturer part number (MPN)
- MINI-3-T
- EAN / GTIN
- 4015081715152
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Eaton catalogue number
- 177072
- Depth
- 83 mm
- Height
- 140 mm
- Width
- 82 mm
- Weight
- 0.13 kg
- Compliances
- RoHS conform
- Certifications
- IEC/EN 62208
- Features
- EMC-version
- Fitted with
- Basic device
- Functions
- Basic device; Sealable
- Protection class
- II (totally insulated)
- RAL-number
- 9003
- Special features
- IP30 Protection Class II Plastic housing white (RAL 9003)
- Used with
- Installation distribution board; Basic device; MINI distribution board
- Application
- Indoor (installation site)
- Color
- White; Signal white (RAL 9003)
- Type
- Basic device Installation distribution board MINI distribution board
- Ambient operating temperature details
- -5 °C - 40 °C
- Frequency rating of contacts
- 50 Hz
- Voltage rating at AC
- 400 V AC
- Built-in depth
- 70 mm
- Cable entry postion
- Metric cable entries on top and bottom, side, back plate
- Closure type
- Other
- Cover/door color
- Transparent
- Cover/door model
- Closed
- Cover/door type
- Door; Single
- Degree of protection
- IP30; IK05 (impact resistance)
- Enclosure material
- Plastic
- Internal depth
- 60 mm
- Material
- ABS (plastic)
- Module rack type
- Single-rail
- Mounting method
- Surface mounting; Surface mounted (plaster); DIN-rail
- Number of module space units per row
- 3
- Number of rows
- 1
- Protective shrouding material
- Plastic
- Terminal type
- Without terminals
- Width in number of modular spacings
- 3
- Colour
- White
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- Yes
- Extension possible
- No
- Inner depth
- 60 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Plastic
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- Yes
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081715152
- SAP 1000659273
- Code 8658960
Product Documentation
More from Eaton
Eaton
Washer M6 tagget DACROMET 320 xE Main
XNNKS-M6
Eaton
Cylindrical Fuse 14X51MM, 1A
C14G1
Eaton
Control Switch (T0-1-15402/I1)
Eaton
Spacer Bracket SET A 4 PCS.
NZM1/2-XAB
Eaton

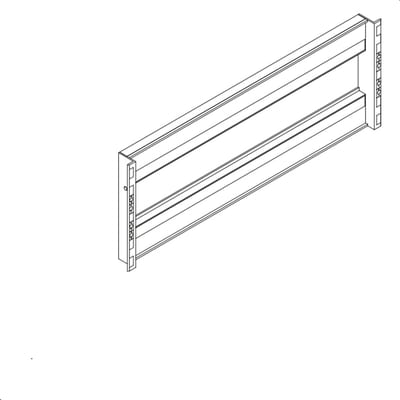

DIN-Cover 3X1M (220E3031)
Eaton

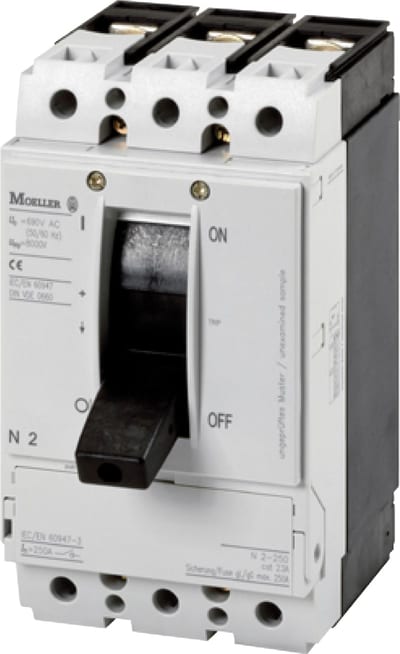

LOAD-Break Switch N2-250
Eaton

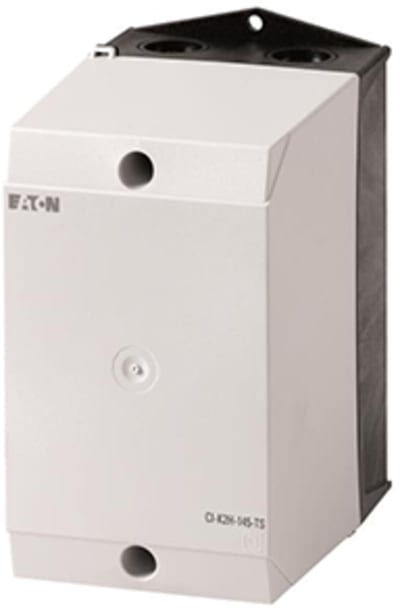

Insulated enclosure CI-K2H-145-TS
