Eaton

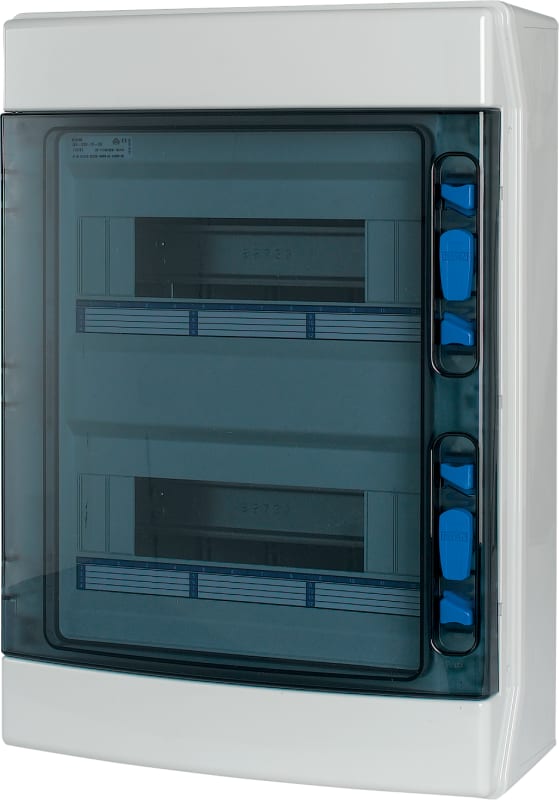

Enclosure IP65 UV 2-Row 24 MOD.
Part numberIKA-2/24-ST-UVEAN / GTIN4015081706532HS code8538.10
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Enclosure IP65 UV 2-Row 24 MOD. (part number IKA-2/24-ST-UV) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Package quantity: 4 pcs; Eaton catalogue number: 174191; Depth: 145 mm; Height: 436 mm; Width: 310 mm.
Technical Specifications
- Manufacturer part number (MPN)
- IKA-2/24-ST-UV
- EAN / GTIN
- 4015081706532
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Eaton catalogue number
- 174191
- Depth
- 145 mm
- Height
- 436 mm
- Width
- 310 mm
- Weight
- 2.83 kg
- Compliances
- RoHS conform
- Certifications
- IEC/EN 60670-24; EN 62208
- Features
- UV resistant
- Fitted with
- Reserve section cover 6 space units; Sealing caps; Current circuit designation; Device support rails; Basic device; Neutral-/protective conductor terminal; Locking screws can be sealed
- Functions
- Basic device; Extension possible; Sealable
- Protection class
- II (totally insulated)
- RAL-number
- 7035
- Special features
- IP65 Protection Class II Plastic enclosure gray (RAL 7035)
- Used with
- Basic device; Installation distribution board; IKA industrial distribution board
- Application
- Indoor (installation site) Outdoor (installation site)
- Color
- Light gray (RAL 7035); Gray
- Type
- Basic device IKA industrial distribution board Installation distribution board
- Ambient operating temperature details
- -25 °C - 40 °C
- Frequency rating of contacts
- 50 Hz
- Voltage rating at AC
- 415 V AC
- Built-in depth
- 70 mm
- Cable entry postion
- Metric cable entries on top and bottom, side, back plate
- Closure type
- Other
- Cover/door color
- Transparent
- Cover/door model
- With notch
- Cover/door type
- Door; Single
- Degree of protection
- IP65; IK08 (impact resistance)
- Enclosure material
- Plastic
- Internal depth
- 60 mm
- Material
- Polycarbonate (plastic)
- Module rack type
- Rail frame
- Mounting method
- DIN-rail; Surface mounted (plaster); Surface mounting
- Number of module space units per row
- 12
- Number of rows
- 2
- PE and N terminal number and cross section
- PE: 8 x (2.5 mm² - 6 mm²) + 8 x (4 mm² - 10 mm²) + 1 x (10 mm² - 25 mm²) + 1 x (16 mm² - 35 mm²); N: 8 x (2.5 mm² - 6 mm²) + 8 x (4 mm² - 10 mm²) + 1 x (10 mm² - 25 mm²) + 1 x (16 mm² - 35 mm²)
- Protective shrouding material
- Plastic
- Terminal type
- Screw terminals
- Width in number of modular spacings
- 12
- Colour
- Grey
- UV resistant
- Yes
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 60 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Plastic
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- Yes
- With lock
- No
- Cover model
- With notch
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081706532
- SAP 1000659221
- Code 8351560
Product Documentation
Document preview: ENCLOSURE IP65 UV 2-RAD 24 MOD. (IKA-2/24-ST-UV) — Specification Data Sheet (OEM)
More from Eaton
Eaton

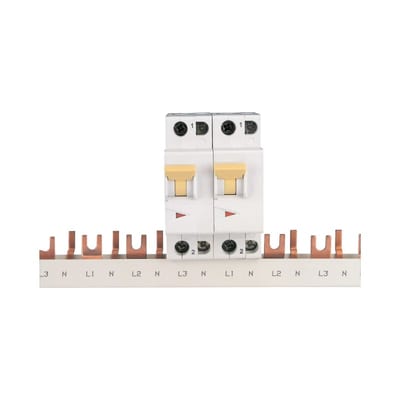

BUSBAR 3-PHASE+n 1-Pole+n 1000mm
Z-GSV-16/3+3N
Eaton

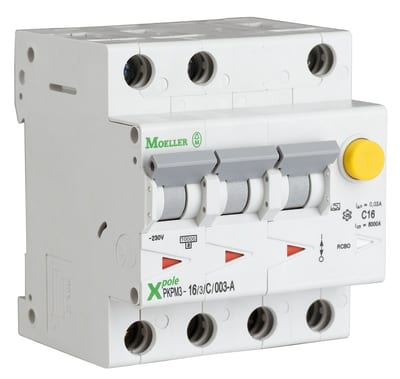

Residual current circuit breaker with overcurrent 16A 3P C 100MAA (PKPM3-16/3/C/01-A)
Eaton
Boliginstallasjonsskap 760X470 (B-I 7647)
Eaton

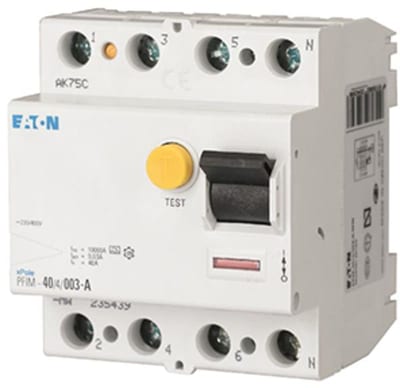

Residual current circuit breaker 40A 4P 100MAA
PFIM-40/4/01-A-MW
Eaton

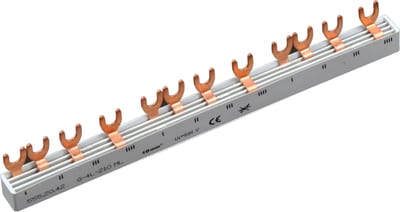

BUSBAR 3-PHASE+n 3P+N (EVG-4PHAS/12MODUL)
Eaton
Meter Board, 3-Phase, 370×210
ZBR-25
Eaton
2-Row Refurbishment Protection Module
2R-VM
Eaton

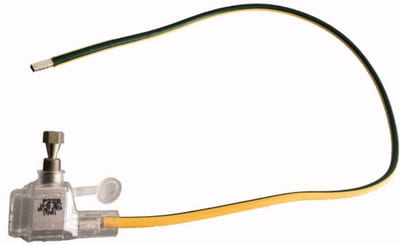

AL/CU transition Yellow/Green 50mm
