Eaton

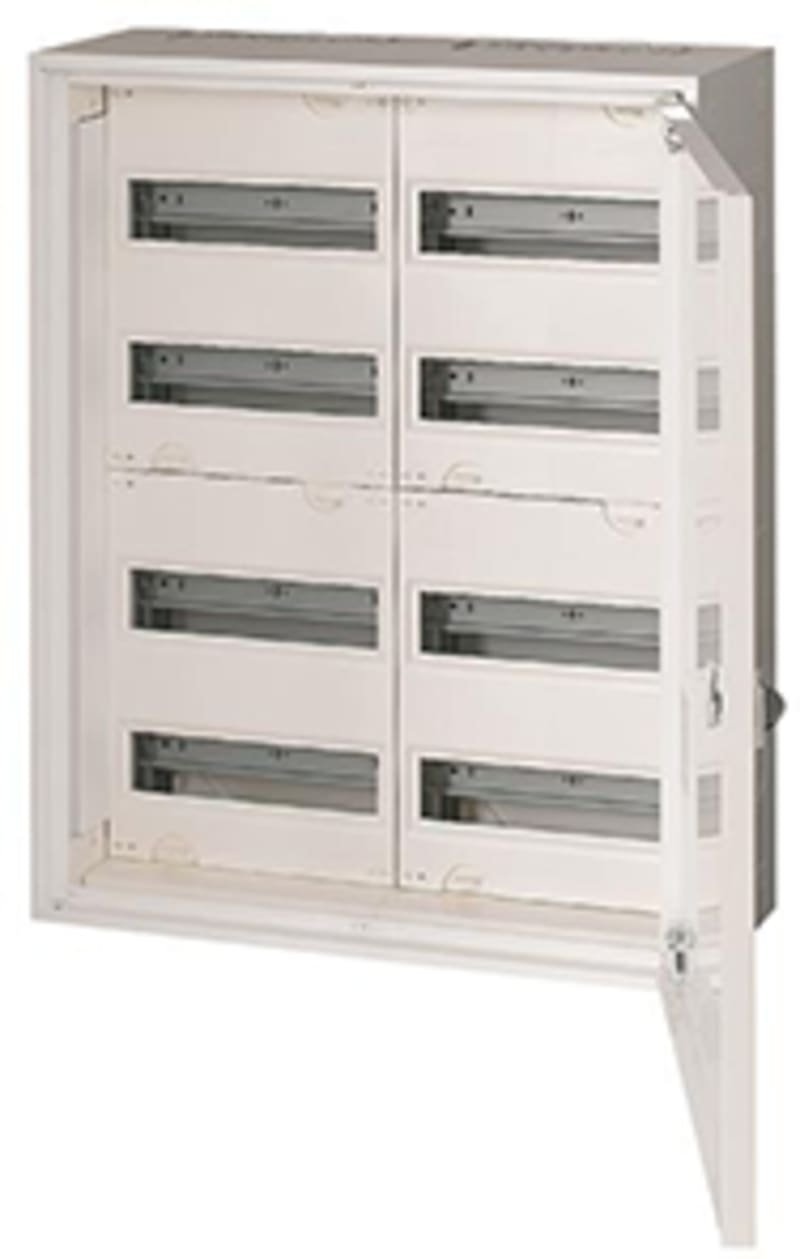

Wall-mount cabinet EWK 96 mod H650 B550 D225
Part numberEWK-G24/31EAN / GTIN9010238007451HS code8538.10
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Wall-mount cabinet EWK 96 mod H650 B550 D225 (part number EWK-G24/31) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 193162; Depth: 230 mm; Height: 650 mm; Width: 550 mm; Weight: 18.5 kg.
Technical Specifications
- Manufacturer part number (MPN)
- EWK-G24/31
- EAN / GTIN
- 9010238007451
- Sales unit
- pcs
- Eaton catalogue number
- 193162
- Depth
- 230 mm
- Height
- 650 mm
- Width
- 550 mm
- Weight
- 18.5 kg
- Compliances
- RoHS conform
- Certifications
- IEC/EN 62208
- Features
- EMC-version; Earthing terminal block; Neutral terminal block
- Fitted with
- Enclosure; Neutral-/protective conductor terminal; Installation panel for modular installation devices; Locking screws can be sealed
- Functions
- Basic device; Extension possible; Sealable
- Protection class
- II (totally insulated)
- RAL-number
- 9016
- Special features
- IP31 Protection Class II Steel sheet enclosure white (RAL 9016)
- Used with
- Basic device; EWK DBO; Installation distribution boards
- Application
- Indoor
- Color
- White; Traffic white (RAL 9016)
- Type
- Basic device ECO distribution board Installation distribution board
- Ambient operating temperature details
- -5 °C - 40 °C
- Frequency rating of contacts
- 50 Hz
- Voltage rating at AC
- 400 V AC
- Built-in depth
- 230 mm
- Built-in height
- 650 mm
- Built-in width
- 550 mm
- Cable entry postion
- Cable entries on top and bottom via F3A flange (not part of delivery), back plate
- Closure type
- Other
- Cover/door color
- White
- Cover/door model
- Closed
- Cover/door type
- Door; Single
- Enclosure material
- Steel
- Internal depth
- 128 mm
- Material
- Sheet steel, powder-coated; Polystyren (plastic)
- Module rack type
- Rail frame
- Mounting method
- Surface mounted (plaster); Surface mounting; DIN-rail
- Number of module space units per row
- 24
- Number of rows
- 4
- PE and N terminal number and cross section
- PE: 2 x 6 x (1.5 mm² - 16 mm²); N: 2 x 21 x (0.75 mm² - 4 mm²)
- Protective shrouding material
- Plastic
- Terminal type
- Plug-in terminals
- Width in number of modular spacings
- 24
- Degree of protection
- IP31; IK08 (impact resistance)
- Colour
- White
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- Yes
- Extension possible
- Yes
- Inner depth
- 128 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- Yes
- Neutral terminal block
- Yes
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 9010238007451
- SAP 1200086257
- Code 81941931
Product Documentation
