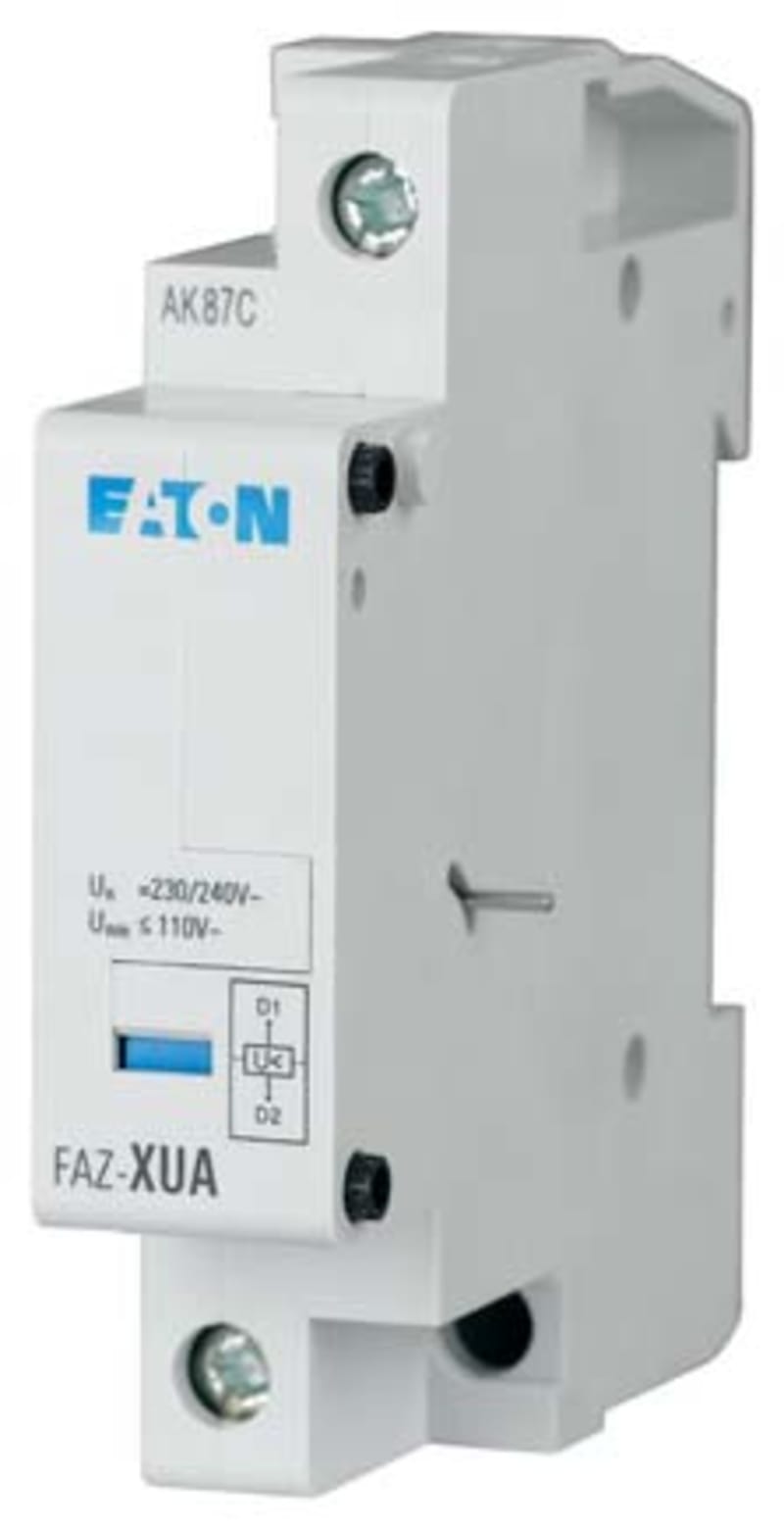

FAZ-Xua(400VAC) (212053)

Eaton 212053 UNDERVOLTAGE RELEASE 400V AC.

Manufacturer part number (MPN)

212053

EAN / GTIN

4015082120535

Sales unit

pcs

Package quantity

60 pcs

Eaton catalogue number

212053

Depth

80 mm

Height

75.5 mm

Width

17.5 mm

Weight

0.105 kg

Compliances

RoHS conform

Certifications

EN45545-2; IEC 61373

Catalog Notes

00VAC

Used with

Accessory for miniature circuit breaker; Accessory

Accessory/spare part type

Undervoltage release

Degree of protection

IP40

Frame

Standard front dimension: 45 mm

Frequency rating

50 Hz / 60 Hz

Mounting method

Top-hat rail IEC/EN 60715

Additional equipment required

Under voltage coil

Terminal protection

Protection against electric shock to IEC 536

Terminal type

Twin-purpose terminals

Tripping threshold

0.5 x Un

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-5 °C

Assembly width

1

Enclosure width

80 mm

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Number of poles at main contact unit - max

1

Number of switches (fault signal)

0

Voltage type

AC

Functions

Under voltage coil

Closing threshold

0.8 x Un

Device fitting

Miniature circuit breaker (MCB)

Type

Accessory Accessory for miniature circuit breaker

Mounting width

17.5 mm (1 space unit)

Rated operational voltage (Ue) - max

400 V

Terminal capacity (cable)

1 mm² - 2.5 mm² (2x)

Terminal capacity (solid wire)

1 mm² - 2.5 mm² (2x)

Rated voltage

400 V

Installed at the factory

No

Width in number of modular spacings

1

Additional equipment

Under voltage coil

Voltage type for actuating

AC

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

1

Country of origin

Czechia

HS Code

8538.90

• EAN 4015082120535
• SAP 1200607159
• Code 82998499
