Eaton
32 Amperè residual current circuit breaker with overcurrent
Part numberMRB4-32/3N/C/03-AEAN / GTIN4015081640119HS code8536.90
Electrical Components
RCDs & RCBOs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

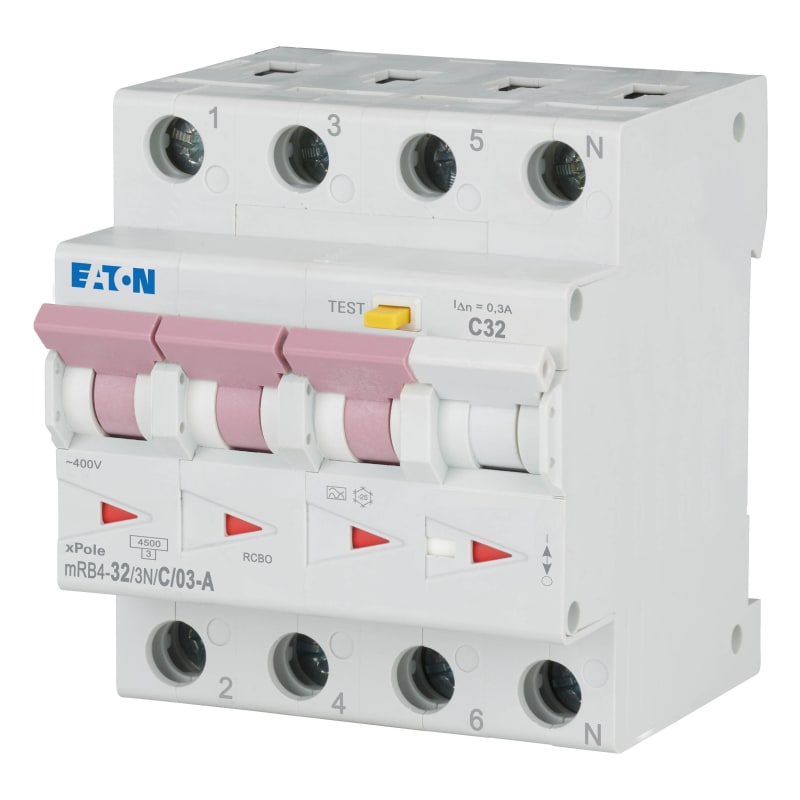

Eaton MRB4-32/3N/C/03-A 32 Amperè residual current circuit breaker with overcurrent.
Technical Specifications
- Manufacturer part number (MPN)
- MRB4-32/3N/C/03-A
- EAN / GTIN
- 4015081640119
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Number of poles (total)
- 4
- Number of protected poles
- 3
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 32 A
- Rated fault current
- 0.3 A
- Leakage current type
- A
- Rated short-circuit breaking capacity according to EN 60898
- 4 kA
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 4.5 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 0.25 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–40 °C
- Width in number of modular spacings
- 4
- Built-in depth
- 70 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–25 mm²
- Connectable conductor cross section multi-wired
- 1–25 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081640119
- SAP 1000631670
- Code 8143622
Product Documentation
Document preview: 32 Amperè residual current circuit breaker with overcurrent (MRB4-32/3N/C/03-A) — Specification sheet
