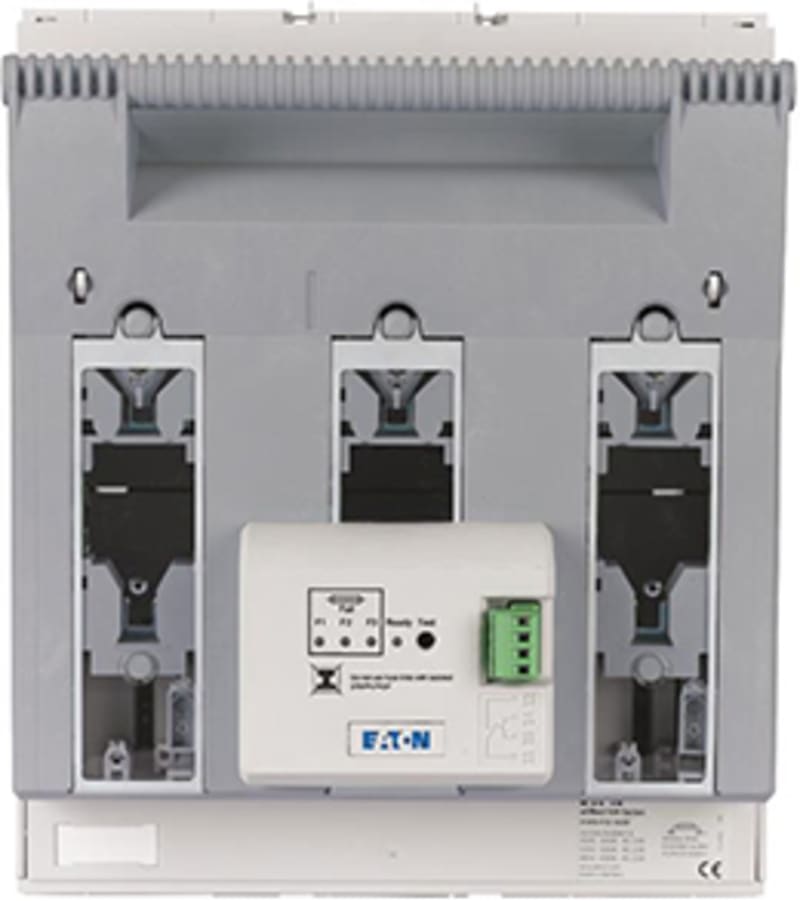

NH13 Switch-disconnector 3P 630 E

Eaton NH13 Switch-disconnector 3P 630 E (part number XNH3-FCE-A630) is listed under Switchgear & Protection / Fuse Switch-Disconnectors. Sales unit: pcs; Eaton catalogue number: 183075; Depth: 306 mm; Height: 173 mm; Width: 250 mm; Weight: 3.857 kg.

Manufacturer part number (MPN)

XNH3-FCE-A630

EAN / GTIN

4015081780020

Sales unit

pcs

Eaton catalogue number

183075

Depth

306 mm

Height

173 mm

Width

250 mm

Weight

3.857 kg

Compliances

RoHS conform

Certifications

IEC/EN 60947-3

Features

Halogen free; Electronic fuse monitoring and EMC (Electromagnetic compatibility) as of IEC 61000-4-4; Standard sealable; Electronic fuse monitoring and EMC (Electromagnetic compatibility) as of IEC 61000-4-5

Fitted with

Connectors; Error protection

Flammability characteristics (UL)

Self-extinguishing (UL 94)

Special features

Permanent operation (rated operating mode) Current paths of electrolytic copper, silver-plated with electronic monitoring of fuse-links

Suitable for

Ground mounting; Front mounting

Actuator type

Cover grip

Color

Gray

Number of poles

Three-pole

Type

Fuse control - electronic

Ambient operating temperature details

Ambient temperature range: -25 °C - 70 °C Operating temperature range: -5 °C - 55 °C

Equipment heat dissipation, current-dependent

22 W

Heat deflection temperature

125 °C

Heat dissipation at 80% without fuses

32.5 W

Heat dissipation per pole, current-dependent

7.3 W

Rated operational current for specified heat dissipation (In)

630 A

Total heat dissipation without fuses at Ith

51 W

Creepage resistance

CTI 600

Direction of incoming supply

As required

Electrical connection type of main circuit

Screw connection

Electronic fuse monitoring

1 LED green; 1 NO; NH with live handle straps; 1 NC; Self-supplied; 3 LEDs (F1, F2, F3) red; > 1 kOhm/V; 1.5 VA; Test button for relay + LEDs

Frequency rating

40 Hz - 60 Hz

Frequency rating (electronic fuse monitoring)

50 - 60 Hz

Frequency rating of contacts

40 Hz - 60 Hz

Lifespan, electrical

200 operations

Operating altitude without derating - max

2000 mm

Overvoltage category

III; III (230/400 V); II (500 V)

Permitted power loss per fuse link - max

48 W

Pollution degree

3

Rated conditional short-circuit rating

120 kA (500 V); 100 kA (690 V)

Rated impulse withstand voltage (Uimp)

8 kV

Rated insulation voltage (Ui)

800 VAC

Rated operating voltage (Ue) at AC - max

500 V

Rated operation current (Ie)

630 A

Rated operational current

630 A (AC-21B); 630 A (AC-22B); 630 A (AC-23B); 630 A (DC-21B); 630 A (DC-22B)

Rated short-time withstand current (Icw)

3 kA

Rated uninterrupted current (Iu)

630 A

Switching current of electronic fuse monitoring - max

1 A

Voltage inputs

400 V AC - 500 V AC (+/-10%)

Voltage rating at AC

400 V (AC-23B) 500 V (AC-22B) 690 V (AC-21B)

Voltage rating at AC - max

250 VAC

Voltage rating at DC

440 V (DC-22B) 250 V (DC-21B)

Voltage rating at DC - max

24 VDC

Voltage test

Yes, sliding inspection windows

Conditioned rated short-circuit current Iq

120 kA

Rated conditional short-circuit current (Iq)

120 kA

Activation type

Dependent manual activation

Actuator position

Front side

Cable entry type

Other

Degree of protection (front side)

Other

Lifespan, mechanical

800 operations

Locking facility

Yes, optional

Material

Polyamide

Mounting method

Mounting plate; DIN rail

Mounting position

Vertical or horizontal

Size

NH3

Suitable for fuses

NH3

Terminal capacity (copper band)

21 mm x 1 mm (11x) at box terminal

Terminal capacity (copper busbar)

Max. 56 mm cable lug width at flange connection; Bolt diameter at flange connection: M10; 50 mm x 10 mm

Terminal capacity (copper strip)

16 mm x 0.8 mm (6x) - 32 mm x 1 mm (10x) at box terminal

Terminal capacity (stranded cable)

120 mm² - 240 mm² (2x) at double clamp-type terminal; 120 mm² - 300 mm² at clamp-type terminal; 95 mm² - 300 mm² (1x) at box terminal; On demand

Connection type

Flat connection

Degree of protection

IP10 (handle cover open, XNH installed); IP20 (operating status, XNH installed); IP2XC (contact protection, XNH installed); IP3X

Rated permanent current Iu

630 A

Motor drive integrated

No

Type of electrical connection of main circuit

Screw connection

Version as emergency stop installation

No

Type of control element

Cover grip

Version as main switch

No

Version as safety switch

No

Rated short-time withstand current lcw

3 kA

Suitable for floor mounting

Yes

Suitable for front mounting

Yes

Suitable for busbar mounting

No

Max. rated operation voltage Ue AC

500 V

With error protection

Yes

Motor drive optional

No

Position control element

Front side

Equipped with connectors

Yes

Country of origin

Germany

HS Code

8538.90
