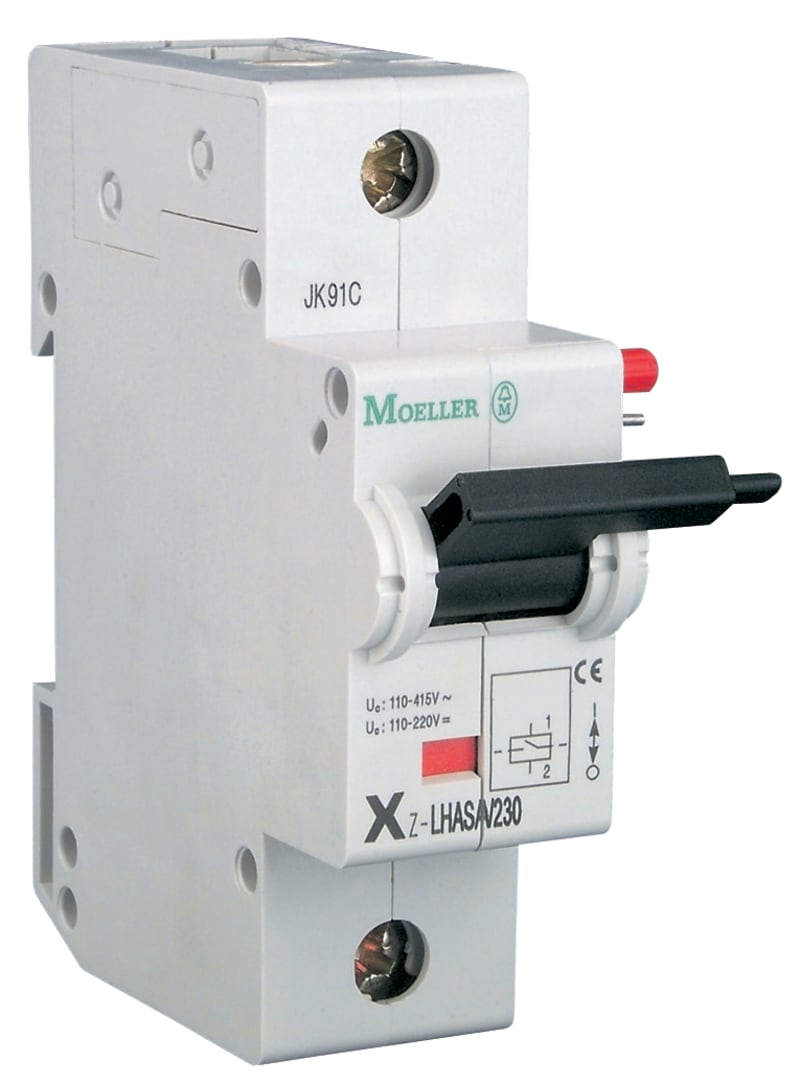

Eaton 248442 Shunt Release for Miniature Circuit Breaker 230 V AC
Pricing
Request a quote
We reply within 24 hours
Product Description
The Eaton 248442 is a 230 V AC shunt release accessory that fits to the left of a miniature circuit breaker to enable remote tripping on command. It provides one normally open and one normally closed auxiliary contact and adds 1.5 modular spacings to the assembly. Typical applications include emergency-off systems, fire alarm interlocks and remote isolation in industrial and commercial switchgear.
Technical Specifications
- Manufacturer part number (MPN)
- 248442
- EAN / GTIN
- 4015082484422
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Eaton catalogue number
- 248442
- Depth
- 80 mm
- Height
- 75 mm
- Width
- 39.1 mm
- Weight
- 0.158 kg
- Compliances
- RoHS conform
- Certifications
- EN45545-2; IEC 61373
- Used with
- Shunt releases
- Accessory/spare part type
- Shunt release
- Mounting method
- For fitting on left to: AZ
- Additional equipment required
- Shunt release (for power circuit breaker)
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -5 °C
- Assembly width
- 1.5
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Number of poles at main contact unit - max
- 1
- Number of switches (fault signal)
- 0
- Voltage type
- AC
- Functions
- Shunt release (for power circuit breaker)
- Device fitting
- Miniature circuit breaker (MCB)
- Type
- Accessory Accessory for miniature circuit breaker
- Application
- Switchgear for industrial and advanced commercial applications
- Rated operational voltage (Ue) - max
- 230 V
- Rated switch current
- 2 A
- Suitable for current of main contact unit - max
- 2 A
- Rated voltage
- 230 V
- Installed at the factory
- No
- Width in number of modular spacings
- 1.5
- Additional equipment
- Shunt release (for power circuit breaker)
- Voltage type for actuating
- AC
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- With auto test for earth leakage function
- No
- Suitable for max. number of poles main contact unit (total)
- 1
- Suitable for max. current main contact unit
- 2 A
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082484422
- SAP 1000022499
- Code 8495977
