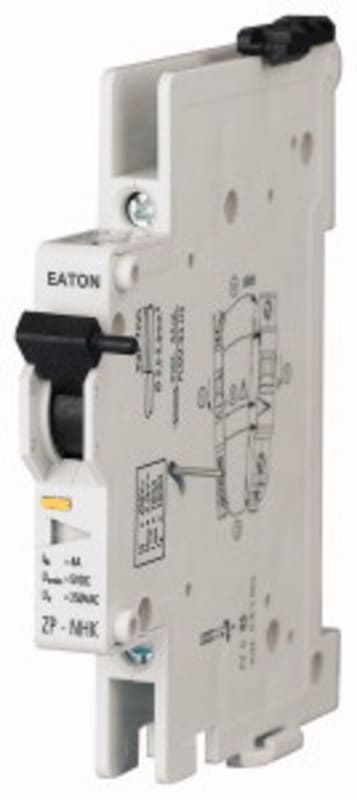

TRIGGERED Signalling contact

Eaton ZP-NHK Triggered meldekontakt for unit breaker.

Manufacturer part number (MPN)

ZP-NHK

EAN / GTIN

4015082484378

Sales unit

pcs

Package quantity

4 pcs

Eaton catalogue number

248437

Depth

80 mm

Height

75 mm

Width

8.8 mm

Weight

0.044 kg

Compliances

RoHS conform

Certifications

UL Listed; EN45545-2; IEC 61373

Used with

Auxiliary contacts; Accessory; Accessory for miniature circuit breaker; Accessory for combined residual current/power circuit breaker

Accessory/spare part type

Tripping signal contacts

Mounting method

For fitting on left to: LS, FI/LS

Additional equipment required

Signaling switch

Ambient operating temperature - max

75 °C

Ambient operating temperature - min

-35 °C

Assembly width

0.5

Number of contacts (change-over contacts)

2

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

0

Number of poles at main contact unit - max

2

Number of switches (fault signal)

0

Voltage type

AC

Functions

Auxiliary switch

Device fitting

Universal

Type

Accessory Accessory for combined residual current/power circuit breaker Accessory for miniature circuit breaker

Application

Switchgear for industrial and advanced commercial applications

Rated operational voltage (Ue) - max

250 V

Rated switch current

4 A

Suitable for current of main contact unit - max

4 A

Rated voltage

250 V

Installed at the factory

No

Width in number of modular spacings

0.5

Additional equipment

Signalling switch

Voltage type for actuating

AC

Number of contacts as change-over contact

2

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

2

Suitable for max. current main contact unit

4 A

Country of origin

Serbia

HS Code

8536.50

• EAN 4015082484378
• SAP 1000011729
• Code 8109902
