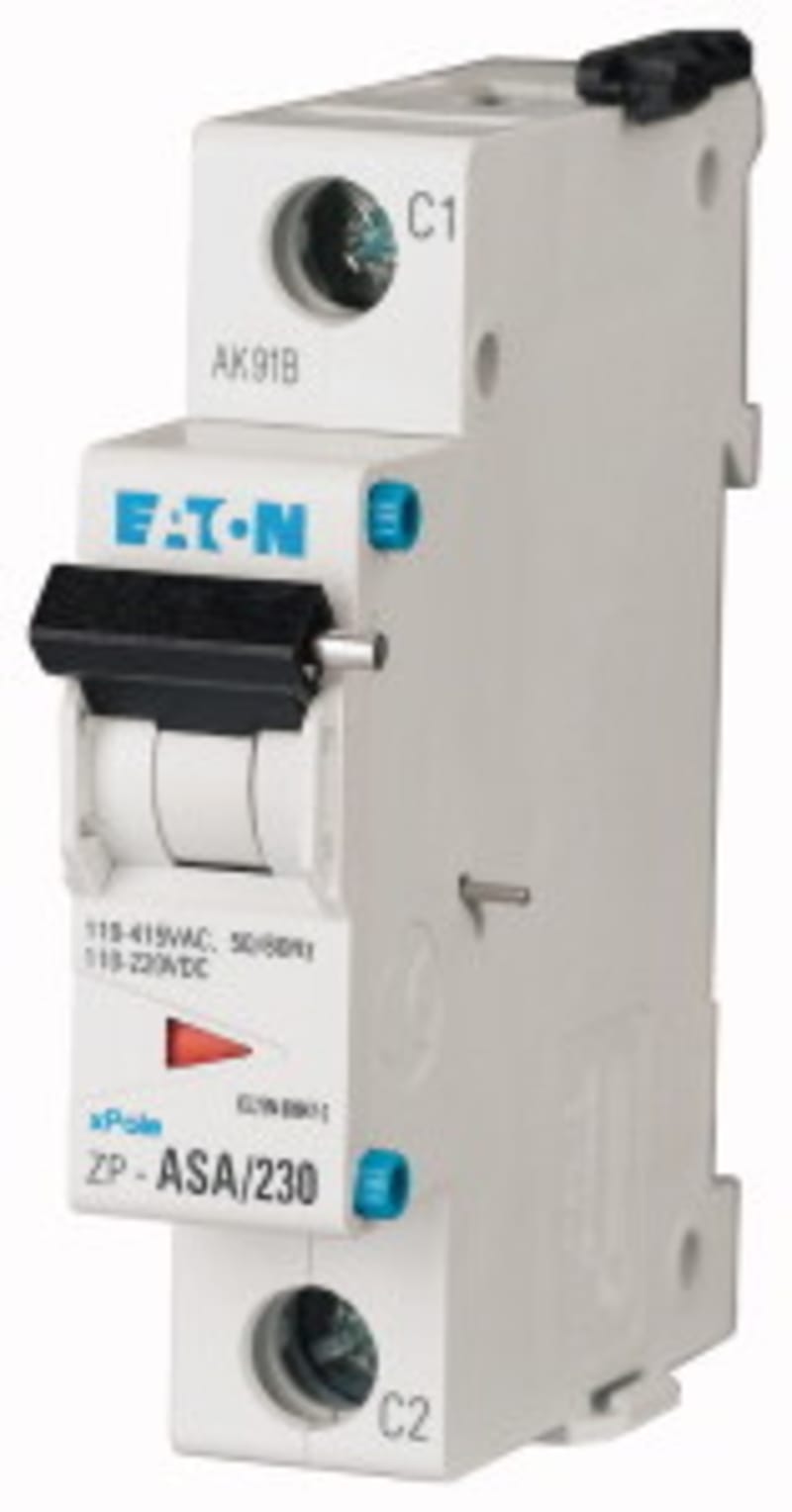

Eaton Shunt Release 230 V AC for FAZ Circuit Breakers
Pricing
Request a quote
We reply within 24 hours
Product Description
Shunt release accessory rated 230 V AC for left-hand fitment to Eaton FAZ, FRBmM-1N and Z-MS miniature and combined circuit breakers. Supplies remote tripping via a normally open and normally closed contact set at up to 2.1 A on the main contact unit. Single modular-width unit for industrial and advanced commercial switchgear, compliant with EN 45545-2 and IEC 61373.
Technical Specifications
- Manufacturer part number (MPN)
- 248439
- EAN / GTIN
- 4015082484392
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Eaton catalogue number
- 248439
- Depth
- 80 mm
- Height
- 75 mm
- Width
- 26.2 mm
- Weight
- 0.087 kg
- Compliances
- RoHS conform
- Certifications
- EN45545-2; IEC 61373
- Used with
- Shunt releases; Accessory for combined residual current/power circuit breaker; Accessory; Accessory for miniature circuit breaker
- Accessory/spare part type
- Shunt release
- Mounting method
- For fitting on left to: FAZ, FRBmM-1N, Z-MS
- Additional equipment required
- Shunt release (for power circuit breaker)
- Ambient operating temperature - max
- 75 °C
- Ambient operating temperature - min
- -35 °C
- Assembly width
- 1
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Number of poles at main contact unit - max
- 1
- Number of switches (fault signal)
- 0
- Voltage type
- AC
- Functions
- Shunt release (for power circuit breaker)
- Device fitting
- Other
- Type
- Accessory Accessory for combined residual current/power circuit breaker Accessory for miniature circuit breaker
- Application
- Switchgear for industrial and advanced commercial applications
- Rated operational voltage (Ue) - max
- 230 V
- Suitable for current of main contact unit - max
- 2.1 A
- Rated voltage
- 230 V
- Installed at the factory
- No
- Width in number of modular spacings
- 1
- Additional equipment
- Shunt release (for power circuit breaker)
- Voltage type for actuating
- AC
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- With auto test for earth leakage function
- No
- Suitable for max. number of poles main contact unit (total)
- 1
- Suitable for max. current main contact unit
- 2.1 A
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082484392
- SAP 1000023097
- Code 8200999
Product Documentation
