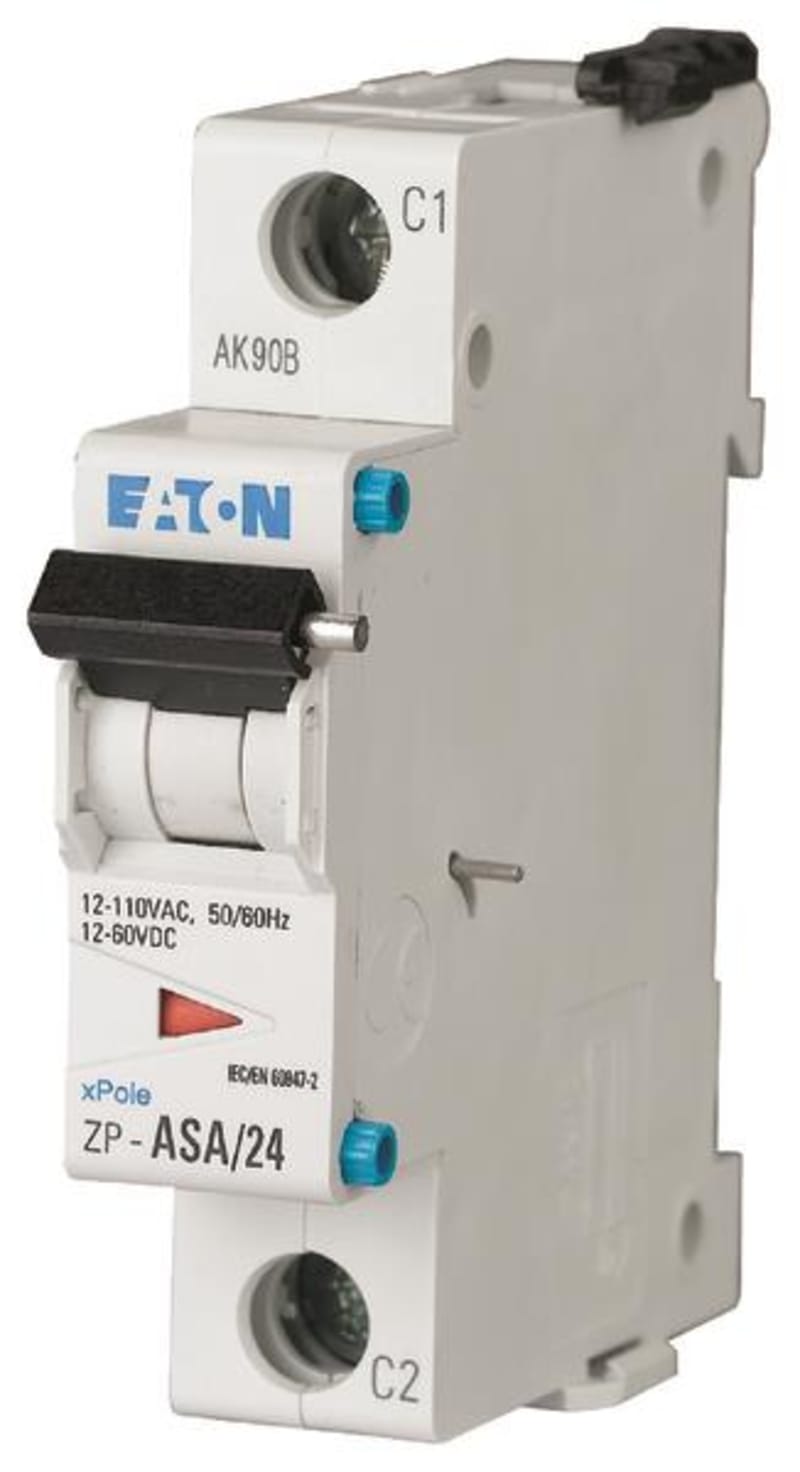

Eaton 248438 Shunt Trip Release 24 V AC for Miniature Circuit Breakers
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 248438 is a shunt trip release for 24 V AC, designed to be mounted to the left of Eaton FAZ, FRBmM-1N and Z-MS series miniature circuit breakers and residual-current combined units. It occupies one modular width and provides one NO and one NC auxiliary contact, rated for ambient temperatures from -35 °C to +75 °C.
Technical Specifications
- Manufacturer part number (MPN)
- 248438
- EAN / GTIN
- 4015082484385
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Eaton catalogue number
- 248438
- Depth
- 80 mm
- Height
- 75 mm
- Width
- 26.2 mm
- Weight
- 0.087 kg
- Compliances
- RoHS conform
- Certifications
- EN45545-2; IEC 61373
- Used with
- Shunt releases; Accessory; Accessory for combined residual current/power circuit breaker; Accessory for miniature circuit breaker
- Accessory/spare part type
- Shunt release
- Mounting method
- For fitting on left to: FAZ, FRBmM-1N, Z-MS
- Additional equipment required
- Shunt release (for power circuit breaker)
- Ambient operating temperature - max
- 75 °C
- Ambient operating temperature - min
- -35 °C
- Assembly width
- 1
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Number of poles at main contact unit - max
- 1
- Number of switches (fault signal)
- 0
- Voltage type
- AC
- Functions
- Shunt release (for power circuit breaker)
- Device fitting
- Other
- Type
- Accessory Accessory for combined residual current/power circuit breaker Accessory for miniature circuit breaker
- Application
- Switchgear for industrial and advanced commercial applications
- Rated operational voltage (Ue) - max
- 24 V
- Suitable for current of main contact unit - max
- 15 A
- Rated voltage
- 230 V
- Installed at the factory
- No
- Width in number of modular spacings
- 1
- Additional equipment
- Shunt release (for power circuit breaker)
- Voltage type for actuating
- AC
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- With auto test for earth leakage function
- No
- Suitable for max. number of poles main contact unit (total)
- 1
- Suitable for max. current main contact unit
- 15 A
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082484385
- SAP 1000028159
- Code 8248636
Product Documentation
More from Eaton
Eaton
Eaton FAZT-D1/1N Miniature Circuit Breaker — 1P+N, Type D, 1 A, 25 kA
Eaton
TILKOBL.SPREDER (NZM4-4XKS4)
Eaton
Cover 1 HOLE (M22-H1)
Eaton
Indikator light, Flat Front (M30C-FL-B)
Eaton
Contactor,DILA-40(42V50HZ,48V60HZ) (DILA-40(42V50HZ,48V60HZ)-PI)
Eaton
Marker label 46hp (107906)
Eaton
Position safety switch LSM-11/L
Eaton
DS7 Soft starter, SWD, 135AMP
DS7-34DSX135N0-D
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 248438?
- 248438 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is 248438.
- What is the HS code for 248438?
- The customs tariff (HS) code for 248438 is 8536.50.
- Who manufactures 248438?
- 248438 is a Eaton product in the Electrical Components range.
- Is a datasheet available for 248438?
- Yes — the 248438 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 248438?
- The minimum order quantity is 1.
- Is 248438 available?
- Yes — 248438 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
