Eaton

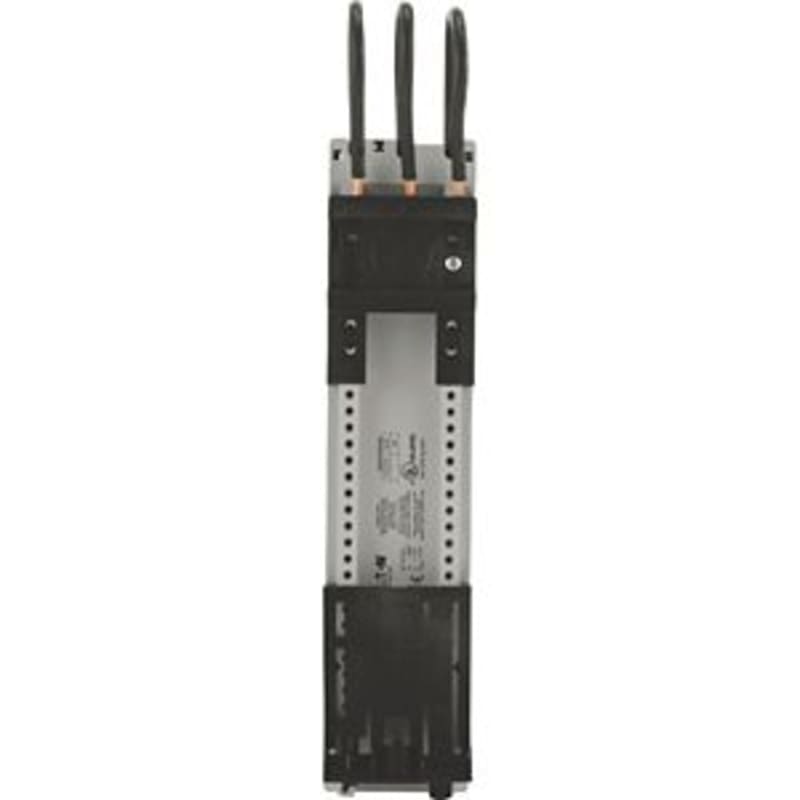

Eaton MSFS Adapter 199472 PUSH IN
Part numberMSFAD-25-PIEAN / GTIN4015081978786HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton MSFAD-25-PI placeholder - to be supplied later.
Technical Specifications
- Manufacturer part number (MPN)
- MSFAD-25-PI
- EAN / GTIN
- 4015081978786
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Eaton catalogue number
- 199472
- Depth
- 160 mm
- Height
- 65 mm
- Width
- 45 mm
- Weight
- 0.143 kg
- Certifications
- CE
- Nominal current
- 25 A
- Rated operation current (Ie)
- 25 A
- Voltage rating at AC
- 690 V
- Adapter width
- 45 mm
- Electric connection type
- 3 conductors AWG 12
- Number of DIN rails
- 1
- Number of poles
- Three-pole
- Special features
- Terminal capacity: 4 mm² (AWG 12)
- Type
- Busbar adapter
- Mounting rail armament
- 1 mounting rail
- Type of electric connection
- 3 conductors AWG 12
- Rated current In
- 25 A
- Min. busbar thickness
- 2 mm
- Max. busbar thickness
- 2 mm
- Width of the adaptor
- 45 mm
- Rail width
- 24 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081978786
- SAP 1200693665
- Code 83537261
Product Documentation
Document preview: EATON MSFS ADAPTER 199472 PUSH IN (MSFAD-25-PI) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton LS-Titan limit switch 1S1TO with plunger IP66 (LS-11D)
Eaton
SideBySide recessed front with door, 4-Row
196795
Eaton
M22-SWDT Universal Module Bottom
M22-SWD-NOPC
Eaton
Door whole G2 OvU 2-Row 83 mm
EP-501166
Eaton
Eaton FAZT-D10/1N Miniature Circuit Breaker — 1P+N, Type D, 10 A, 25 kA
Eaton
DG1 variable-frequency drive 230V: 45kW (DG1-32170FN-C54C)
Eaton
Residual Current CB FRCDM-40/4/03-G/A
168649
Eaton
Eaton 9SX 11000I (9SX11KI)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy MSFAD-25-PI?
- MSFAD-25-PI can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is MSFAD-25-PI.
- What is the HS code for MSFAD-25-PI?
- The customs tariff (HS) code for MSFAD-25-PI is 8536.90.
- Who manufactures MSFAD-25-PI?
- MSFAD-25-PI is a Eaton product in the Electrical Components range.
- Is a datasheet available for MSFAD-25-PI?
- Yes — the MSFAD-25-PI datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for MSFAD-25-PI?
- The minimum order quantity is 1.
- Is MSFAD-25-PI available?
- Yes — MSFAD-25-PI is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
