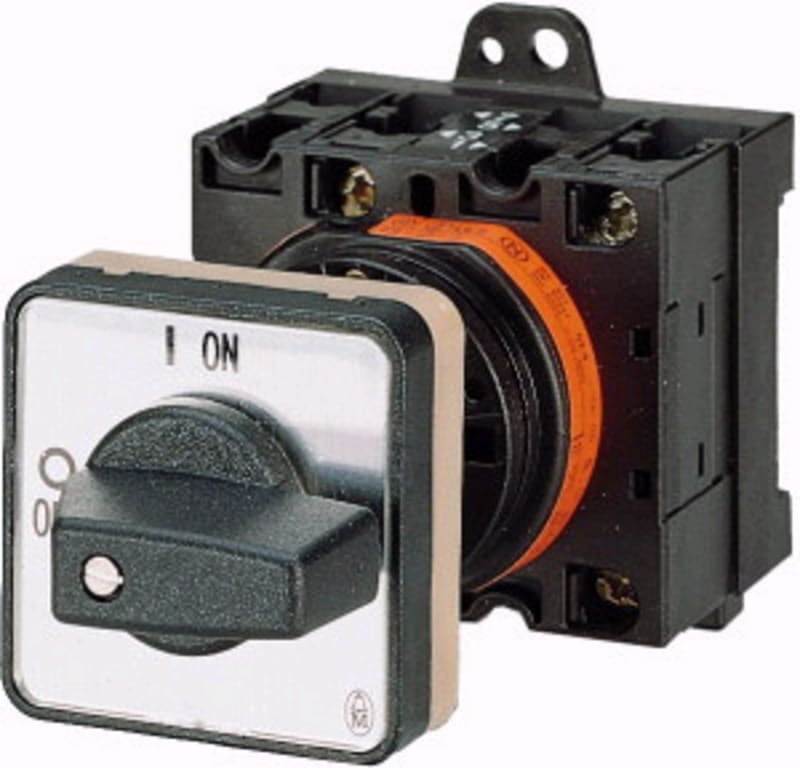

Selector Switch (T0-1-8204/XZ)
Eaton

Selector Switch (T0-1-8204/XZ)

Part numberT0-1-8204/XZEAN / GTIN4015080094869HS code8536.90
Switchgear & Protection
Disconnect Switches
MOQ:1

Pricing

Request a quote

We reply within 24 hours

Product Description

Eaton T0-1-8204/XZ 1-pole impulse switch, 12 A.

Technical Specifications

Manufacturer part number (MPN)
T0-1-8204/XZ
EAN / GTIN
4015080094869
HS code
8536.90
Sales unit
pcs
Eaton catalogue number
009486
Depth
48 mm
Height
48 mm
Width
48 mm
Weight
0.07 kg
Certifications
CE
Actuator type
Toggle
Number of switch positions
0
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient operating temperature (enclosed) - min
-25 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
Control circuit reliability
1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
Number of contacts
1
Rated operating voltage (Ue) at AC - max
690 V
Rated uninterrupted current (Iu)
20 A
Fitted with
Retraction in 0-position
Number of poles
Single-pole
Degree of protection (front side)
IP65; NEMA 12
Mounting method
Rear mounting
Mounting position
As required
Number of contact units
1
Overvoltage category
III
Pollution degree
3
Suitable for
Intermediate mounting; Distribution board installation; Front mounting
Switching angle
45 °
Type
Control switch
Short-circuit protection rating
20 A gG/gL, Fuse, Contacts

Standards & Compliance

HS Code
8536.90

Cross References

  • EAN 4015080094869
  • SAP 1000069528
  • Code 8725368

Product Documentation

Document preview: Selector Switch (T0-1-8204/XZ) — Specification Data Sheet (OEM)

Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.

Frequently asked questions

Where can I buy T0-1-8204/XZ?
T0-1-8204/XZ can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
What is the manufacturer part number for this Eaton product?
The manufacturer part number is T0-1-8204/XZ.
What is the HS code for T0-1-8204/XZ?
The customs tariff (HS) code for T0-1-8204/XZ is 8536.90.
Who manufactures T0-1-8204/XZ?
T0-1-8204/XZ is a Eaton product in the Switchgear & Protection range.
Is a datasheet available for T0-1-8204/XZ?
Yes — the T0-1-8204/XZ datasheet can be viewed and downloaded on this page.
What is the minimum order quantity for T0-1-8204/XZ?
The minimum order quantity is 1.
Is T0-1-8204/XZ available?
Yes — T0-1-8204/XZ is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
