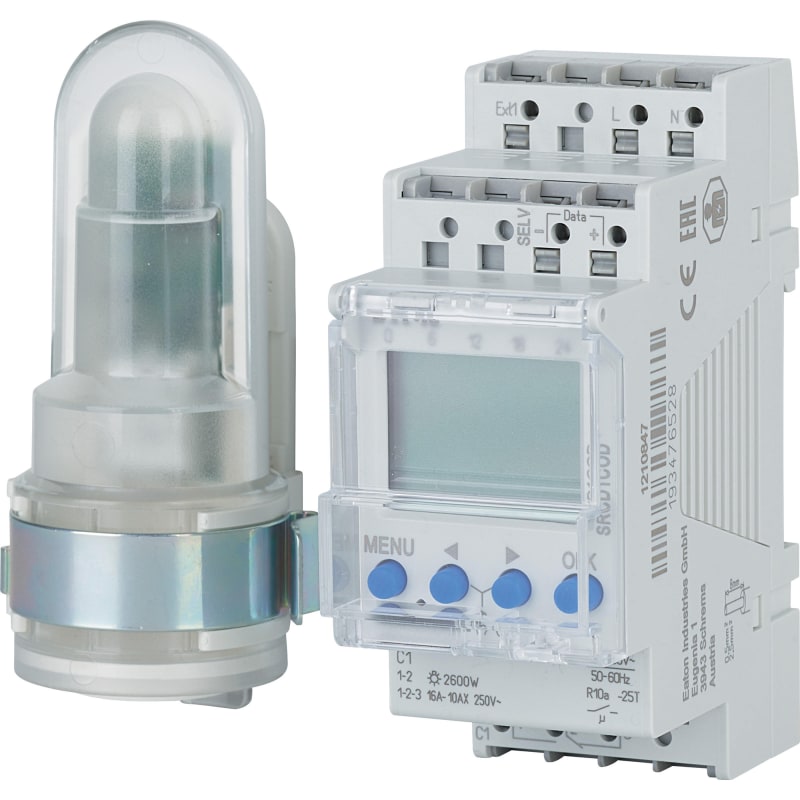

Photocell with time switch 1-99000LUX
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Photocell with time switch 1-99000LUX (part number 196847) is listed under Lighting & Electrical Accessories / Motion Sensors. Sales unit: pcs; Eaton catalogue number: 196847; Depth: 69.2 mm; Height: 90.1 mm; Width: 35.8 mm; Weight: 0.179 kg.
Technical Specifications
- Manufacturer part number (MPN)
- 196847
- EAN / GTIN
- 9008790990434
- Sales unit
- pcs
- Eaton catalogue number
- 196847
- Depth
- 69.2 mm
- Height
- 90.1 mm
- Width
- 35.8 mm
- Weight
- 0.179 kg
- Compliances
- RoHS conform
- Mounting method
- DIN rail
- Features
- Push button input; With programmable overnight shutoff
- Adjustment range brightness value - max
- 99000 lx
- Adjustment range brightness value - min
- 1 lx
- Conductor length light sensor - max
- 100 m
- Frequency rating - max
- 60 Hz
- Frequency rating - min
- 50 Hz
- Heat dissipation capacity
- 1.5 W
- Incandescent lamp load - max
- 2600 W
- Load fluorescent lamp - max
- 2600 VA
- Load fluorescent lamp (duo circuit) - max
- 2600 VA
- Load fluorescent lamp (parallel compensated) - max
- 1300 VA
- Rated operational voltage (Ue) - max
- 230 V
- Degree of protection
- IP20
- Rated switch current
- 16 A
- Static heat dissipation, non-current-dependent
- 0.8 W
- Switching current (cos phi = 0.6) - max
- 10 A
- Switching power LED - max
- 600 W
- Width in number of modular spacings
- 2
- Built-in depth
- 69.2 mm
- Degree of protection (light sensor)
- IP55
- Mounting method (light sensor)
- Wall surface mounted
- Protection class (light sensor)
- III
- Rated voltage
- 230 V
- Rated frequency
- 50–60 Hz
- Max. incandescent lamp load
- 2600 W
- Max. load fluorescent lamp
- 2600 VA
- Max. switching power LED
- 600 W
- Max. switching current (cos phi = 0.6)
- 10 A
- Adjustment range brightness value
- 1–99000 lx
- With programmable overnight shutoff
- No
- Push button input
- Yes
- Max. conductor length light sensor
- 100 m
- Protection class light sensor
- III
- Mounting method light sensor
- Wall surface mounted
- Degree of protection (IP) light sensor
- IP55
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 9008790990434
- SAP 1200562360
- Code 82901605
Product Documentation
More from Eaton
Eaton
Plug with cable 6mm² L=320 Black (102697)
Eaton
NH-00 500V gG/gL 63A
63NHG00B
Eaton
NH switch unit 400A (BPZ-XNH2-1/X-400-MV-W)
Eaton
Residual current circuit breaker 16/4/003-G/A
170293
Eaton
Base, prefabricated screws (SL4-PIB-IMS)
Eaton

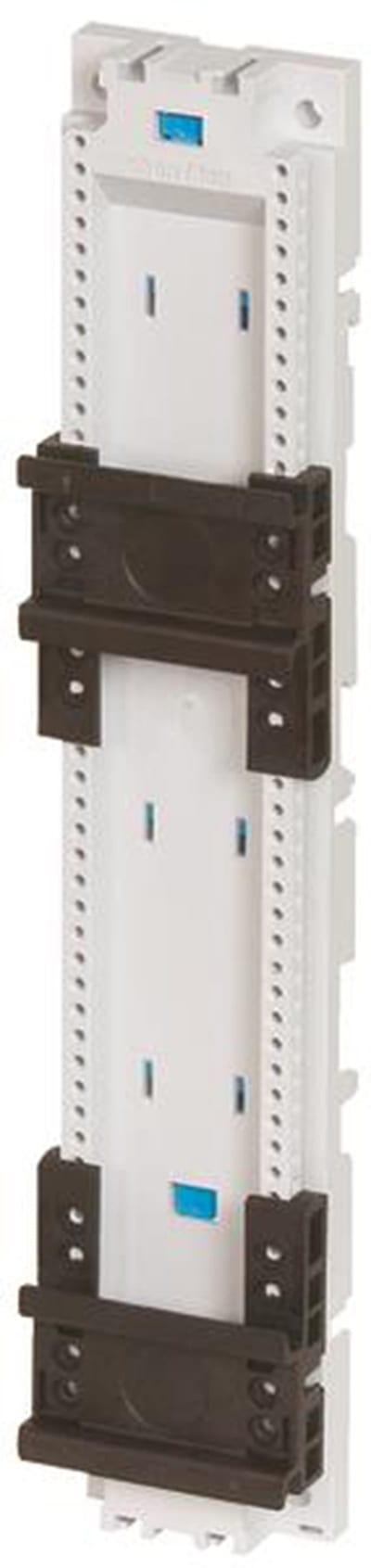

Adapter plate (PKZM4-XC55/2)
Eaton

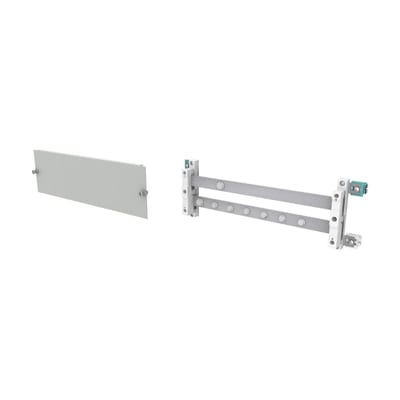

Set Cu-rail 2P MSW H150 B600 xE Basic
EP-502280
Eaton

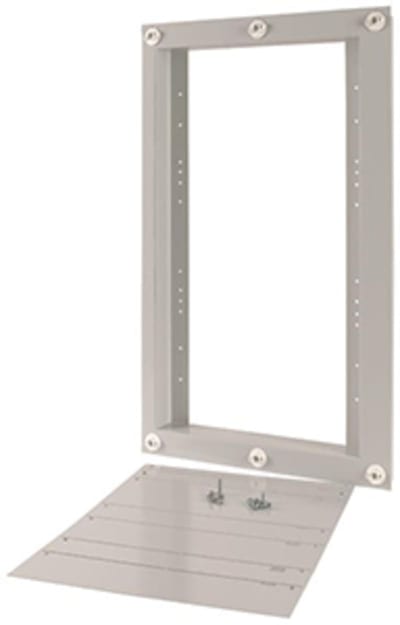

NH skilleswitche unit 630A (BPZ-XNH3-1/0-600-MV-W)
