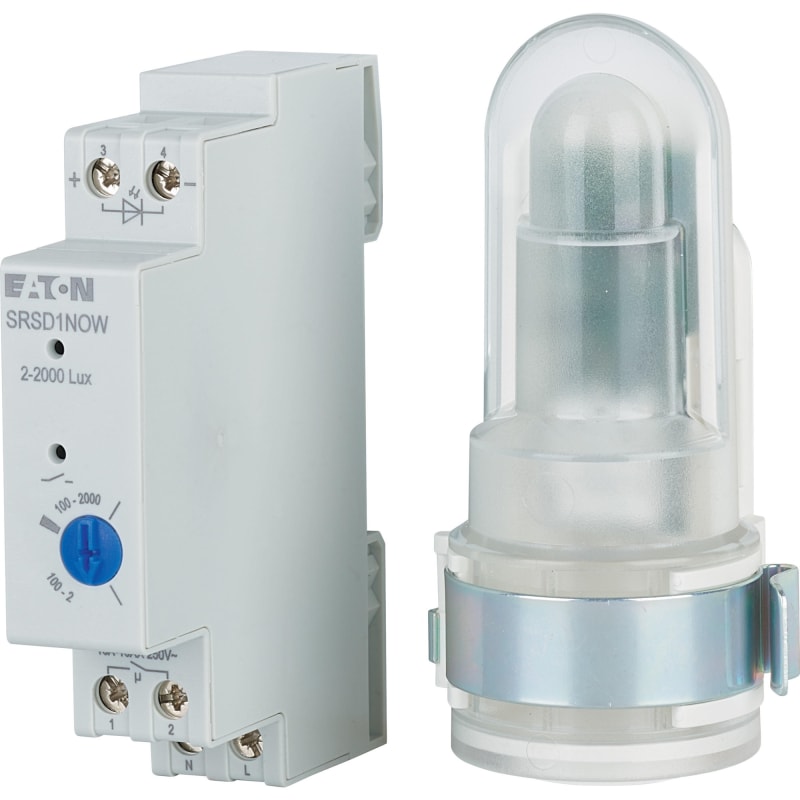

Photocell 2-2000LUX (196845)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Photocell 2-2000LUX (196845) is listed under Lighting & Electrical Accessories / Motion Sensors. Sales unit: pcs; Package quantity: 50 pcs; Eaton catalogue number: 196845; Depth: 65.5 mm; Height: 85.5 mm; Width: 17.5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 196845
- EAN / GTIN
- 9008790990410
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 196845
- Depth
- 65.5 mm
- Height
- 85.5 mm
- Width
- 17.5 mm
- Weight
- 0.121 kg
- Compliances
- RoHS conform
- Mounting method
- DIN rail
- Adjustment range brightness value - max
- 2000 lx
- Adjustment range brightness value - min
- 2 lx
- Conductor length light sensor - max
- 50 m
- Frequency rating - max
- 60 Hz
- Frequency rating - min
- 50 Hz
- Heat dissipation capacity
- 0.8 W
- Incandescent lamp load - max
- 2600 W
- Load fluorescent lamp - max
- 2300 VA
- Load fluorescent lamp (duo circuit) - max
- 2300 VA
- Load fluorescent lamp (parallel compensated) - max
- 730 VA
- Rated operational voltage (Ue) - max
- 230 V
- Degree of protection
- IP55
- Rated switch current
- 16 A
- Static heat dissipation, non-current-dependent
- 0.3 W
- Switching current (cos phi = 0.6) - max
- 10 A
- Switching power LED - max
- 350 W
- Width in number of modular spacings
- 1
- Built-in depth
- 65.5 mm
- Degree of protection (light sensor)
- IP54
- Mounting method (light sensor)
- Wall surface mounted
- Protection class (light sensor)
- II
- Rated voltage
- 230 V
- Rated frequency
- 50–60 Hz
- Max. incandescent lamp load
- 2600 W
- Max. load fluorescent lamp
- 2300 VA
- Max. switching power LED
- 350 W
- Max. switching current (cos phi = 0.6)
- 10 A
- Adjustment range brightness value
- 2–2000 lx
- With programmable overnight shutoff
- No
- Push button input
- No
- Max. conductor length light sensor
- 25 m
- Protection class light sensor
- II
- Mounting method light sensor
- Wall surface mounted
- Degree of protection (IP) light sensor
- IP54
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 9008790990410
- SAP 1200426811
- Code 82456769
Product Documentation
More from Eaton
Eaton

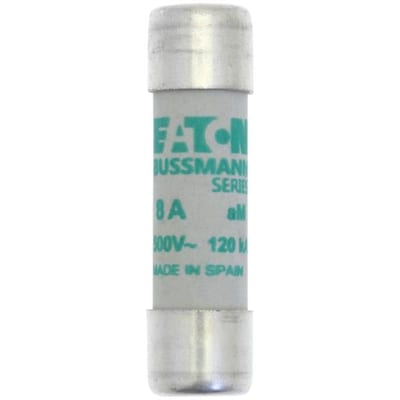

Cylindrical Fuse 10X38MM, 8A (C10M8)
